CESAB B 200 - SIDE; REAR CYLINDER REMOVAL • INSTALLATION

12-7
0
1
2
3
4
5
6
7
8
9
10
12
12
12
12
15
16
16
18
SIDE / REAR CYLINDER
REMOVAL • INSTALLATION
Removal procedure
1. Set the mast in the vertical position and fully lower the forks
2. Hook on an appropriately sized and protected belt and eye bolt
3. Disconnect the battery connector

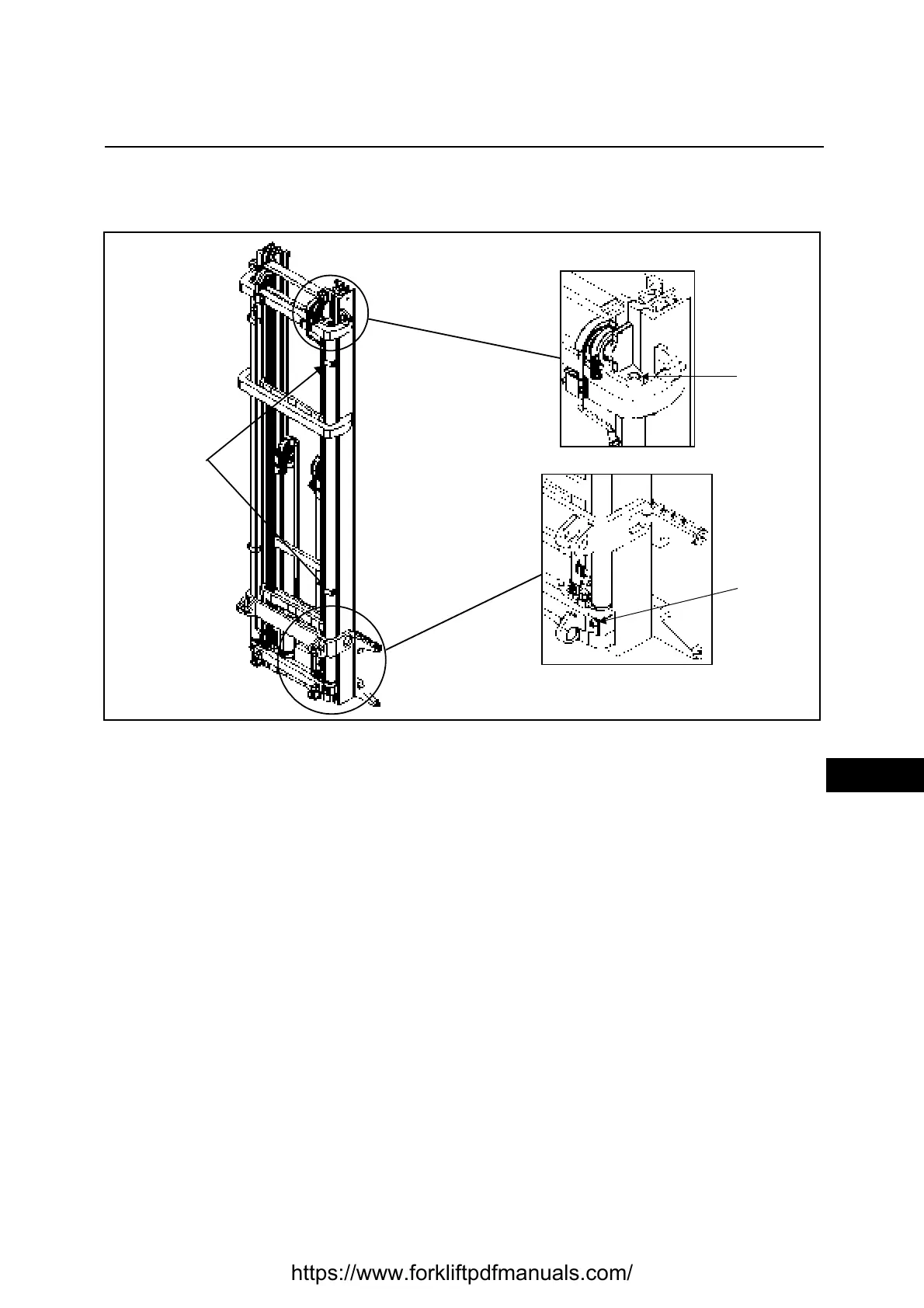

4. Disconnect the cylinder pipes and the pipe clips C [Point 1]
5. Remove the upper fixing bolt A and the lower fixing bolt B [Point 2]
6. Remove the fixing collars
7. Lift the mast in order to release the cylinders
8. Extract the cylinders from the mast
Installation procedure
The reassembly procedure is the reverse of the disassembly procedure.
Remarks:
After installing the lift cylinders, follow the steps below:
1. Without load repeat full stroke lifting and lowering of the cylinder to bleed air and check normal
functioning
2. Check the hydraulic oil level and add if insufficient
3. Inspect lifting cylinders for uneven lifting, and make any necessary adjustment
C
B
A
