CESAB B 200 - Point Operation (Side;Rear Cylinder)

12-8

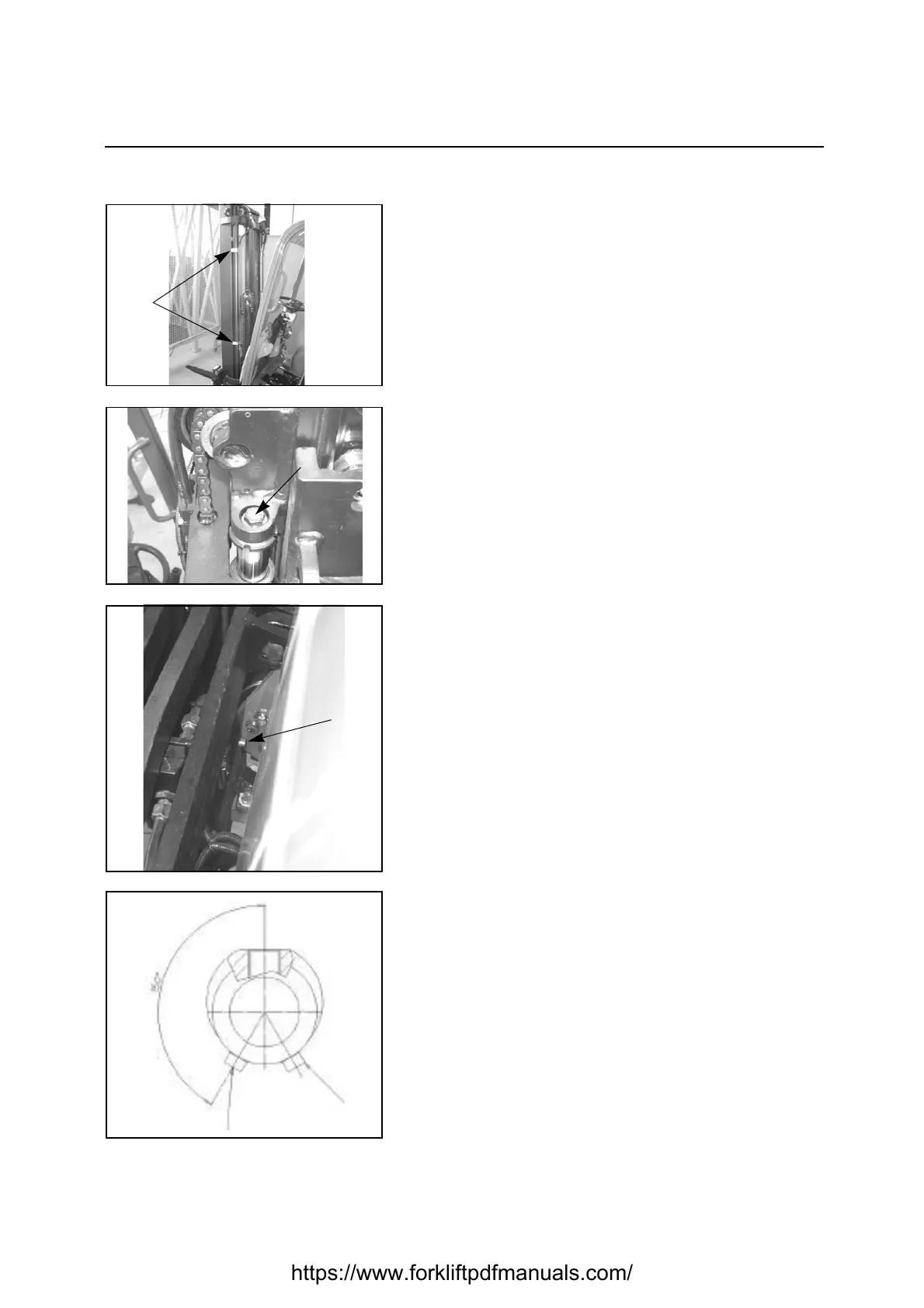

Point Operation
[Point 1]
Disassembly:
Remove the pipe-hose clips C
[Point 2]
Disassembly:
Remove the upper fixing bolt A
Disassembly:
Remove the bottom fixing bolts B
Installation 2M TV:
Respect the orientation between holes G3/8 and M6
RH = right cylinder
LH = left cylinder
C
A
B
LH
RH
