12-13
0
1
2
3
4
5
6
7
8
9
10
12
12
12
12
15
16
16
18

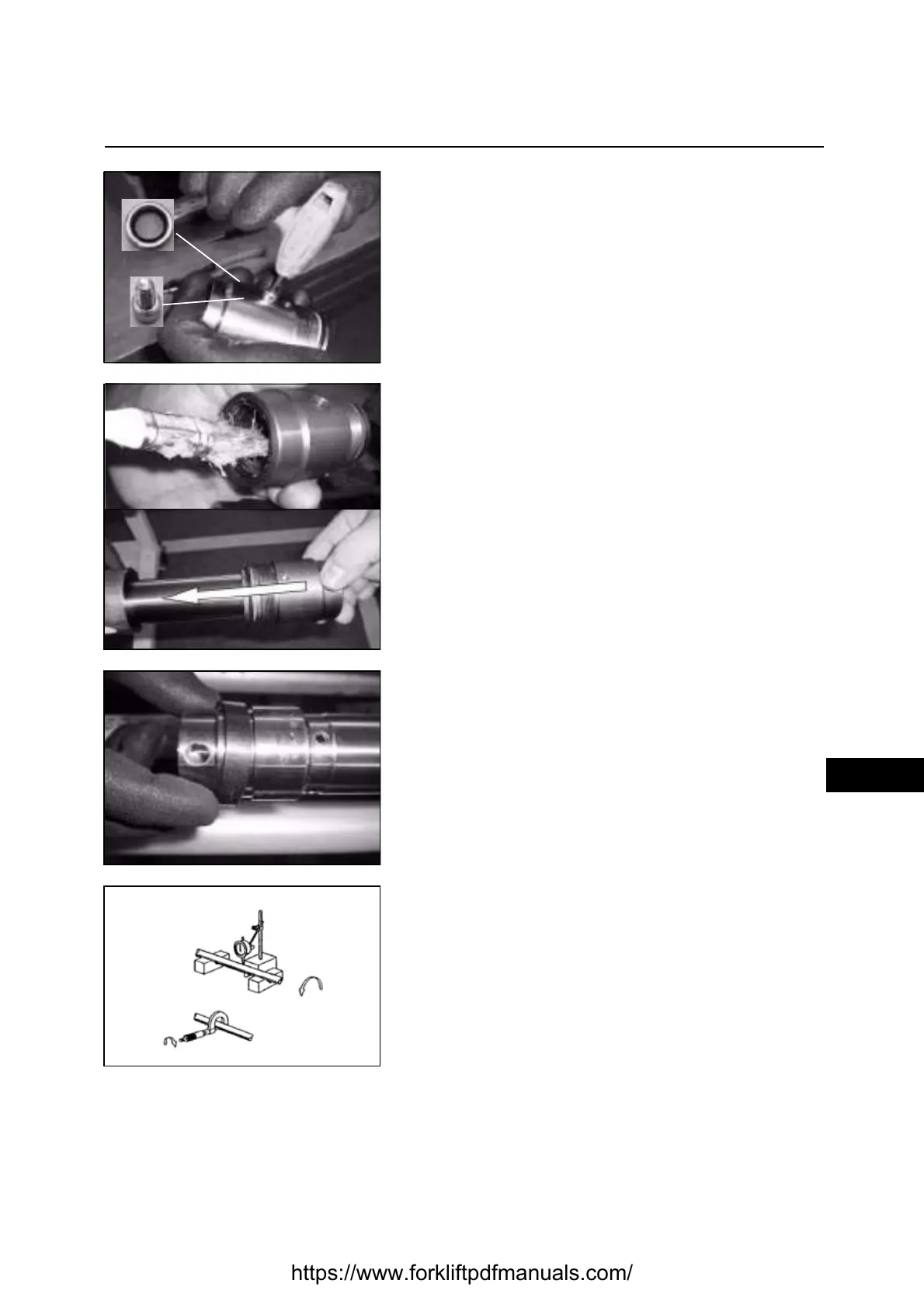

Installation:
Clean the housing seats with compressed air.
Manual tightening
Installation:
Lubricate the bushing with grease before inserting the
rod
[Point 5]
Installation:
Clean the housing seat with compressed air; insert the
seeger
Inspection:
Measure the external diameter of the piston rod;
measure the bend of the piston rod
Limit: 2.0 mm (0.079 in)
Remarks:
See paragraph "Cylinder Specifications" for the internal
diameter
