12-14
[Point 6]

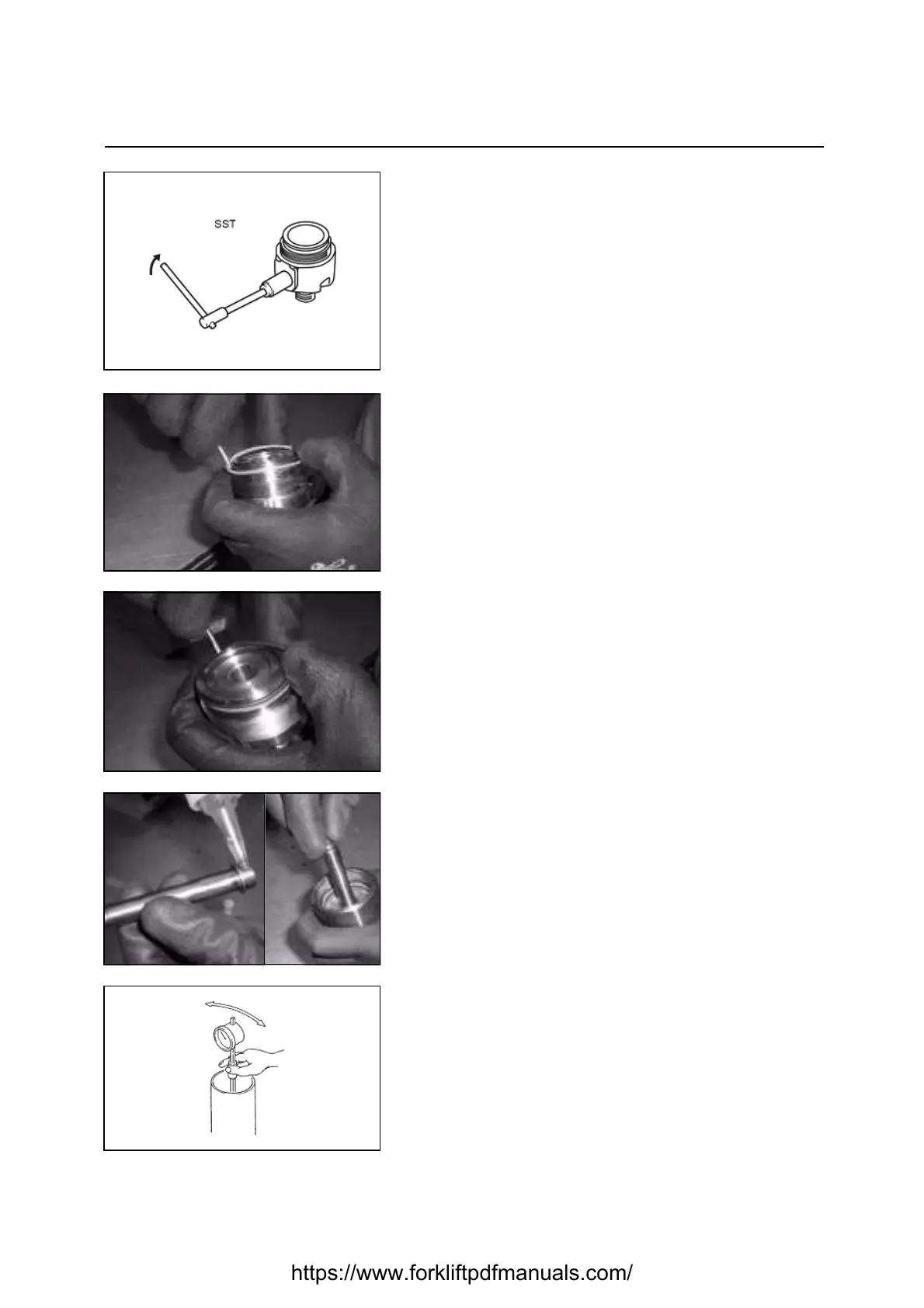

Disassembly:
SST09610-T1000-71
Tightening torque = 3 Nm
Installation:
Clean the housing seat with compressed air; insert the
valve
Remarks:
See paragraph "Cylinder Specifications" for the valve
opening diameter and setting
Installation:
Clean the housing seats with compressed air; lubricate
the gasket with hydraulic oil before installation to
facilitate positioning
Remarks:
Check that the gasket is correctly in its seat and is not
damaged or twisted. Gaskets may be more elastic if
heated to a max. temperature of 50°C
Installation:
Lubricate the o-ring with hydraulic oil before mounting in
order to facilitate its positioning
Remarks:
Check that the o-ring is correctly in its seat and is not
damaged or twisted
Installation:
Use Loxeal 82-33 on the brake body before screwing it
onto the bottom;
tighten the bottom to the cylinder (tightening torque =
450 ± 5% Nm)
[Point 7]
Inspection:
Measure the internal diameter of the lifting cylinder and
check that it is in good condition
Remarks:
See paragraph "Cylinder Specifications" for the internal
diameter
