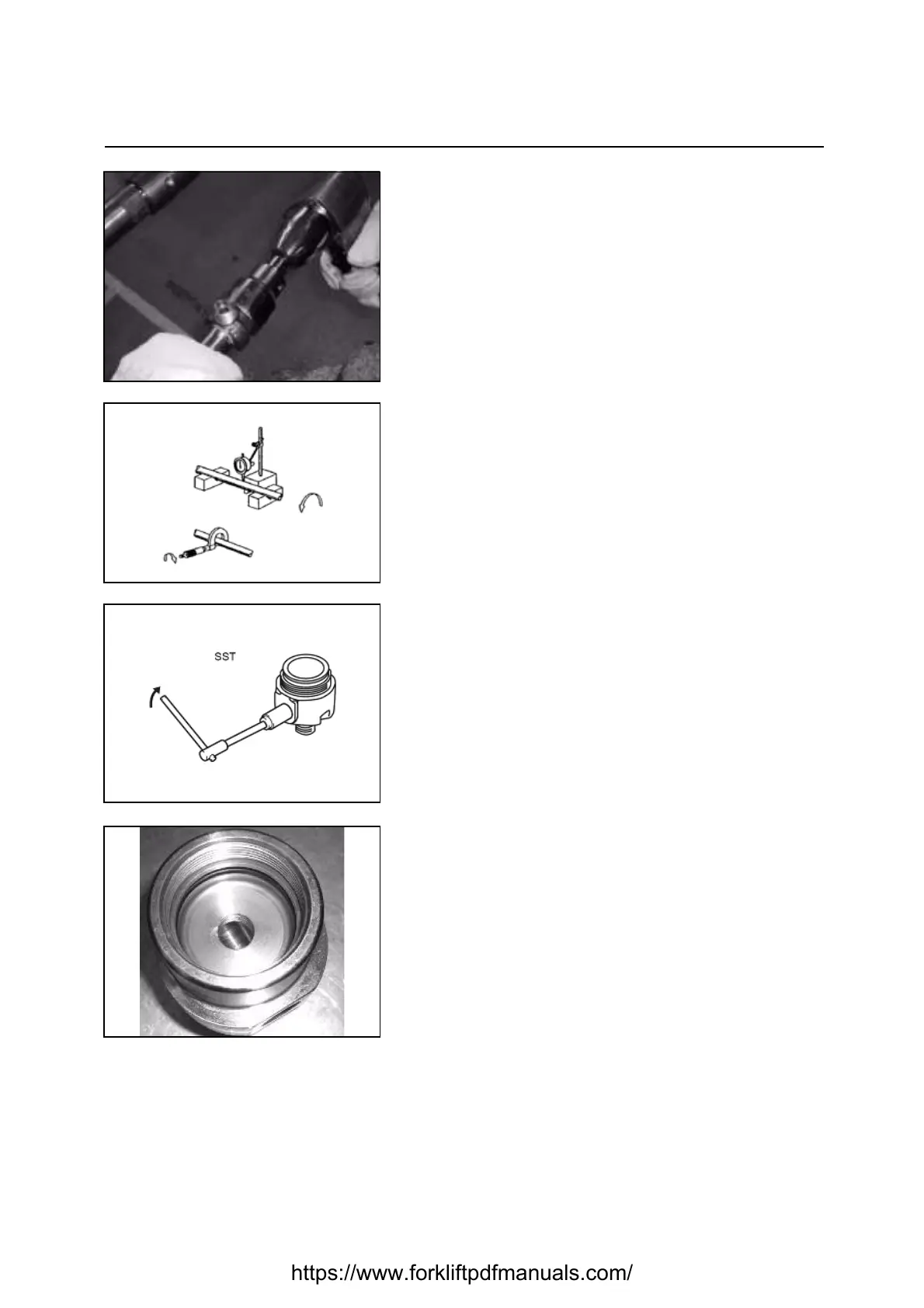

Installation:
Place the upper end near the pipe and tighten with a
pneumatic screwdriver with percussion (or electrical
equivalent)
Inspection:
Measure the external diameter of the piston rod;
measure the bend of the piston rod
Limit: 2.0 mm (0.079 in)
Remarks:
See paragraph "Cylinder Specifications" for the internal
diameter
[Point 6]
Disassembly:
SST09610-T1000-71
Tightening torque = 3 Nm
Installation:
Clean the housing seat with compressed air; insert the
valve
Remarks:
See paragraph "Cylinder Specifications" for the valve
opening diameter and setting
Installation:
Lubricate the o-ring with hydraulic oil before mounting in
order to facilitate its positioning
Remarks:
Check that the o-ring is correctly in its seat and is not
damaged or twisted
