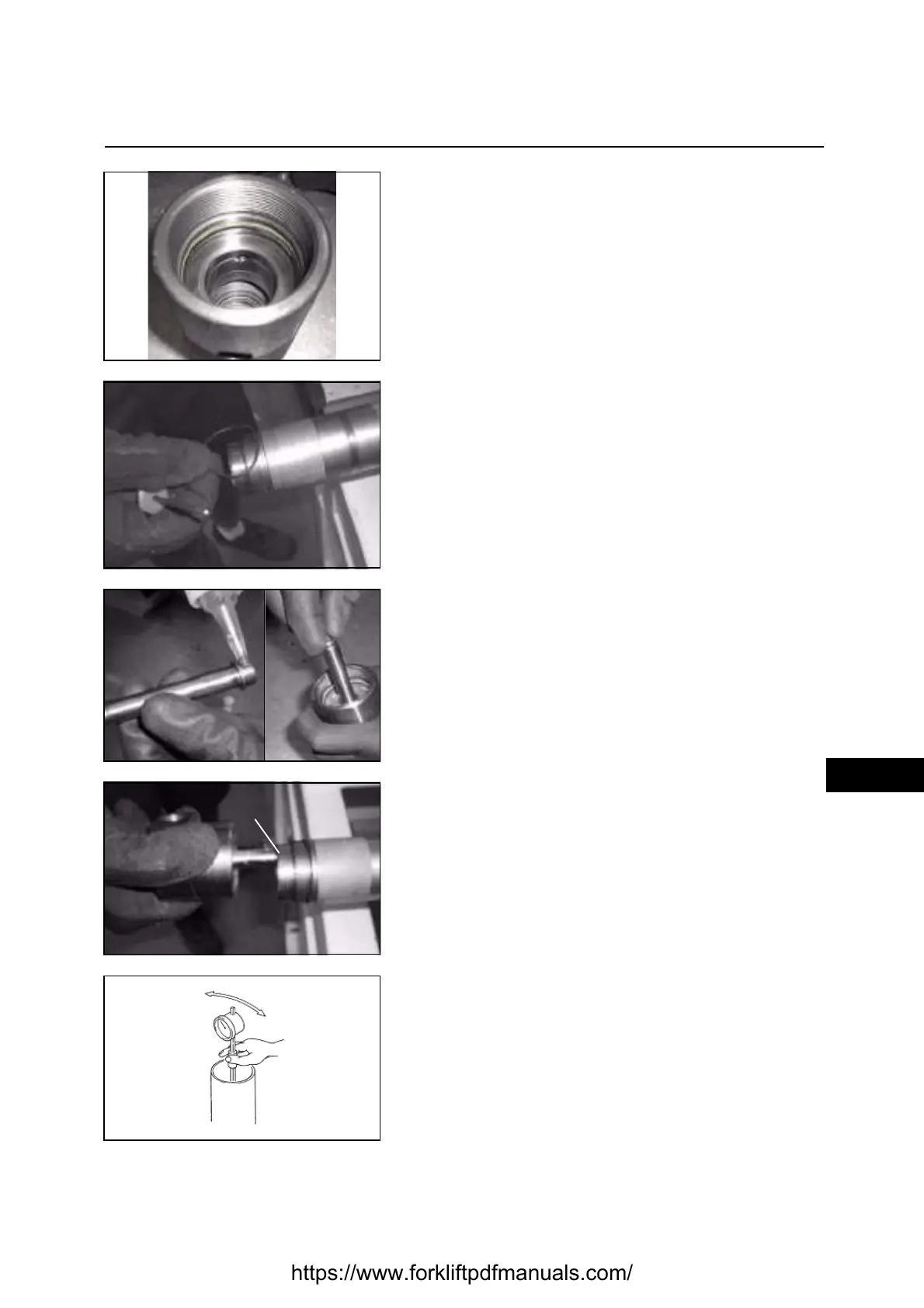

Installation:
Clean the housing seats with compressed air; lubricate
the gasket with hydraulic oil before installation to
facilitate positioning
Remarks:
Check that the gasket is correctly in its seat and is not
damaged or twisted. Gaskets may be more elastic if
heated to a max. temperature of 50°C
Installation:
Clean the housing seats with compressed air; lubricate
the gasket with hydraulic oil before installation to
facilitate positioning
Remarks:
Check that the gasket is correctly in its seat and is not
damaged or twisted. Gaskets may be more elastic if
heated to a max. temperature of 50°C
Installation:
Use Loxeal 82-33 on the brake body before screwing it
onto the bottom
Installation:
Use Loctite 222 on the upper end (A);
tighten the bottom to the cylinder (tightening torque =
450 ± 5% Nm)
Remarks:
Do not screw the bottom onto the cylinder when the
bushing is not in its seat, as this could bend the brake
body
[Point 7]
Inspection:
Measure the internal diameter of the lifting cylinder and
check that it is in good condition
Remarks:
See paragraph "Cylinder Specifications" for the internal
diameter
A
