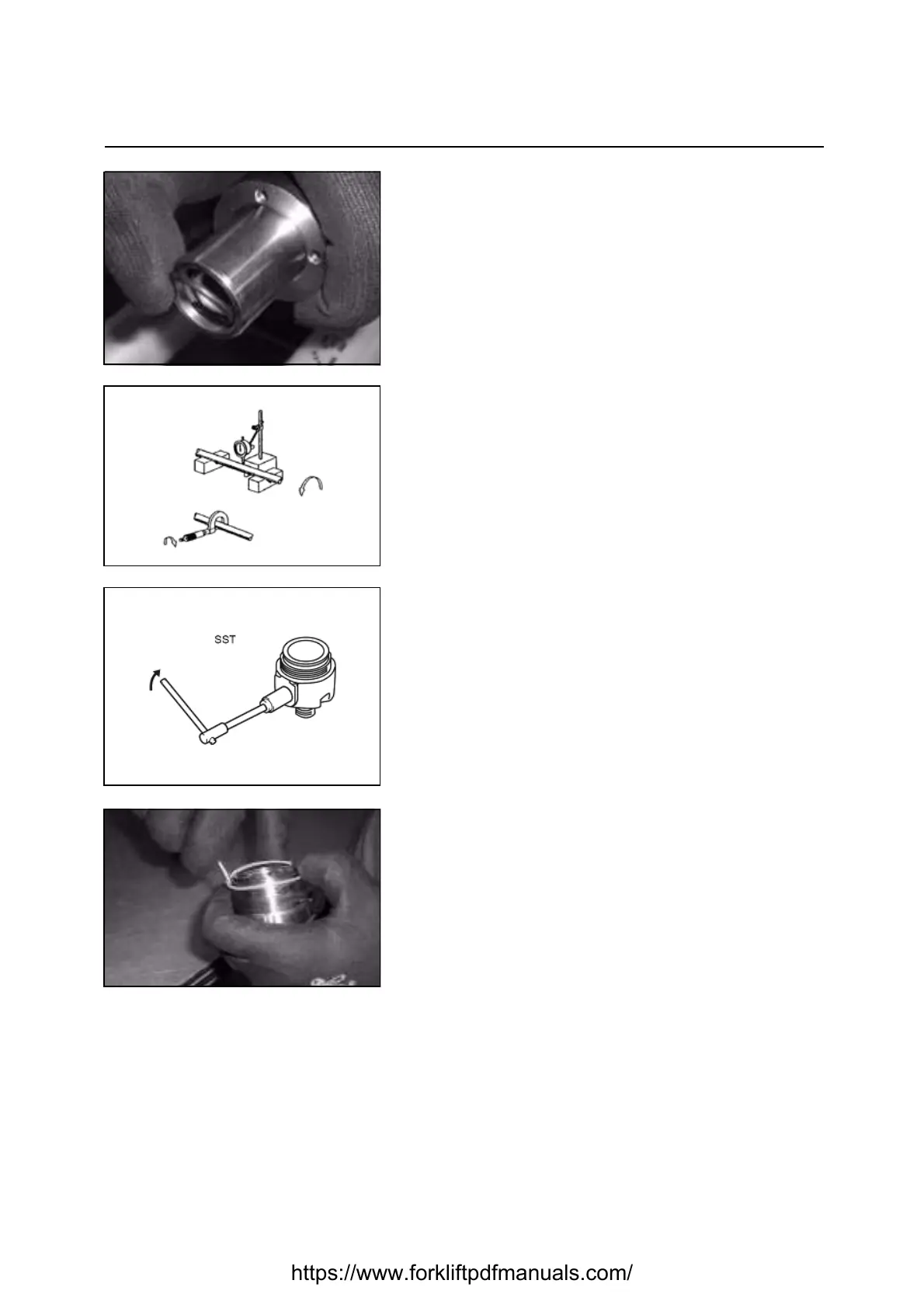

Installation:
Use pliers and twist slightly to insert
Inspection:
Measure the external diameter of the piston rod;
measure the bend of the piston rod
Limit: 2.0 mm (0.079 in)
Remarks:
See paragraph "Cylinder Specifications" for the internal
diameter
[Point 6]
Disassembly:
SST09610-T1000-71
Tightening torque = 3 Nm
Installation:
Clean the housing seat with compressed air; insert the
valve
Remarks:
See paragraph "Cylinder Specifications" for the valve
opening diameter and setting
Installation:
Clean the housing seats with compressed air; lubricate
the gasket with hydraulic oil before installation to
facilitate positioning
Remarks:
Check that the gasket is correctly in its seat and is not
damaged or twisted. Gaskets may be more elastic if
heated to a max. temperature of 50°C
