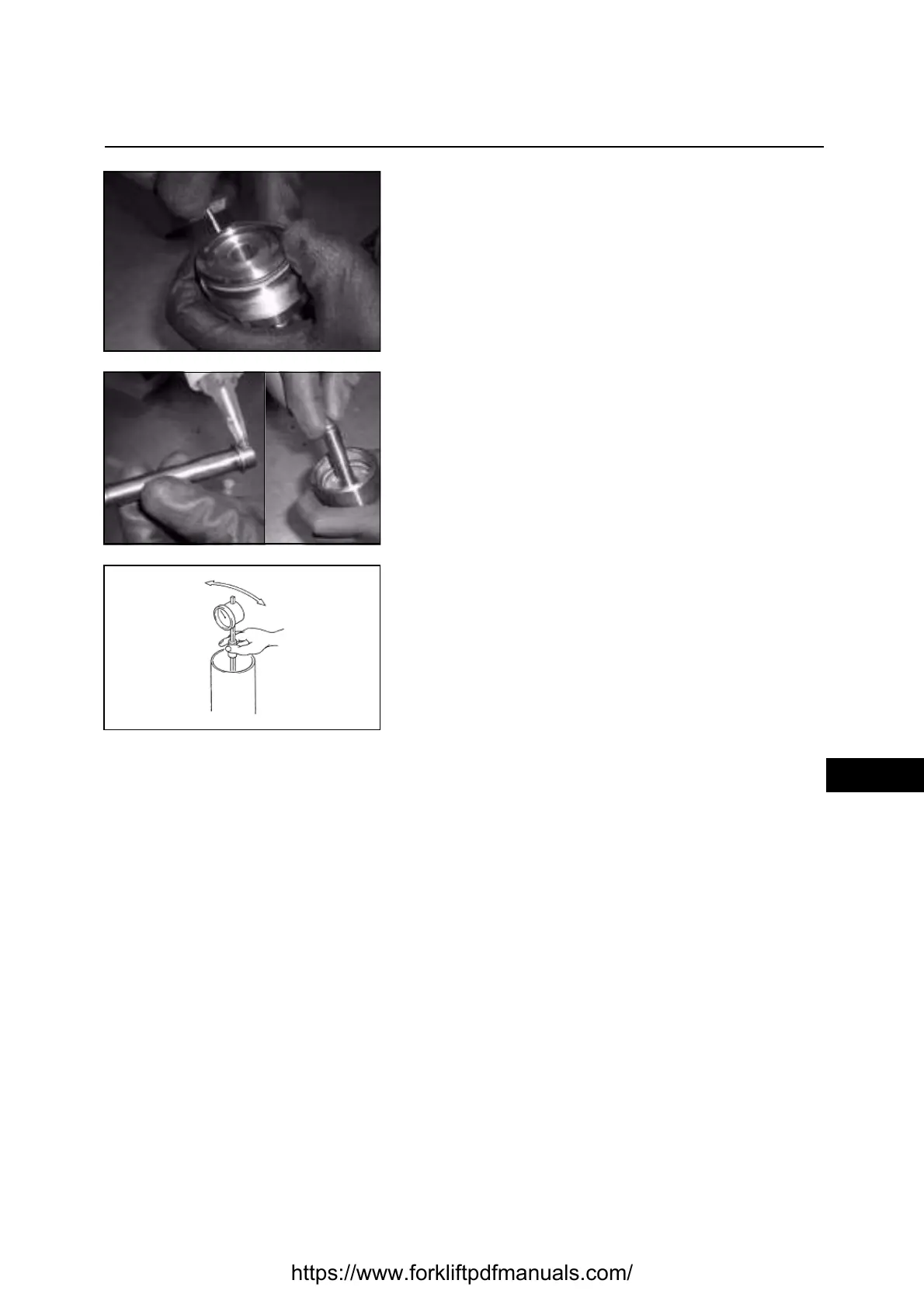

Installation:
Lubricate the o-ring with hydraulic oil before mounting in
order to facilitate its positioning
Remarks:
Check that the o-ring is correctly in its seat and is not
damaged or twisted
Installation:
Use Loxeal 82-33 on the brake body before screwing it
onto the bottom;
tighten the bottom to the cylinder (tightening torque =
450 ± 5% Nm)
[Point 7]
Inspection:
Measure the internal diameter of the lifting cylinder and
check that it is in good condition
Remarks:
See paragraph "Cylinder Specifications" for the internal
diameter
