12-34
CENTRAL CYLINDERS
REMOVAL • INSTALLATION
Removal procedure
1. Set the mast in the vertical position and fully lower the forks
2. Disconnect the battery connector

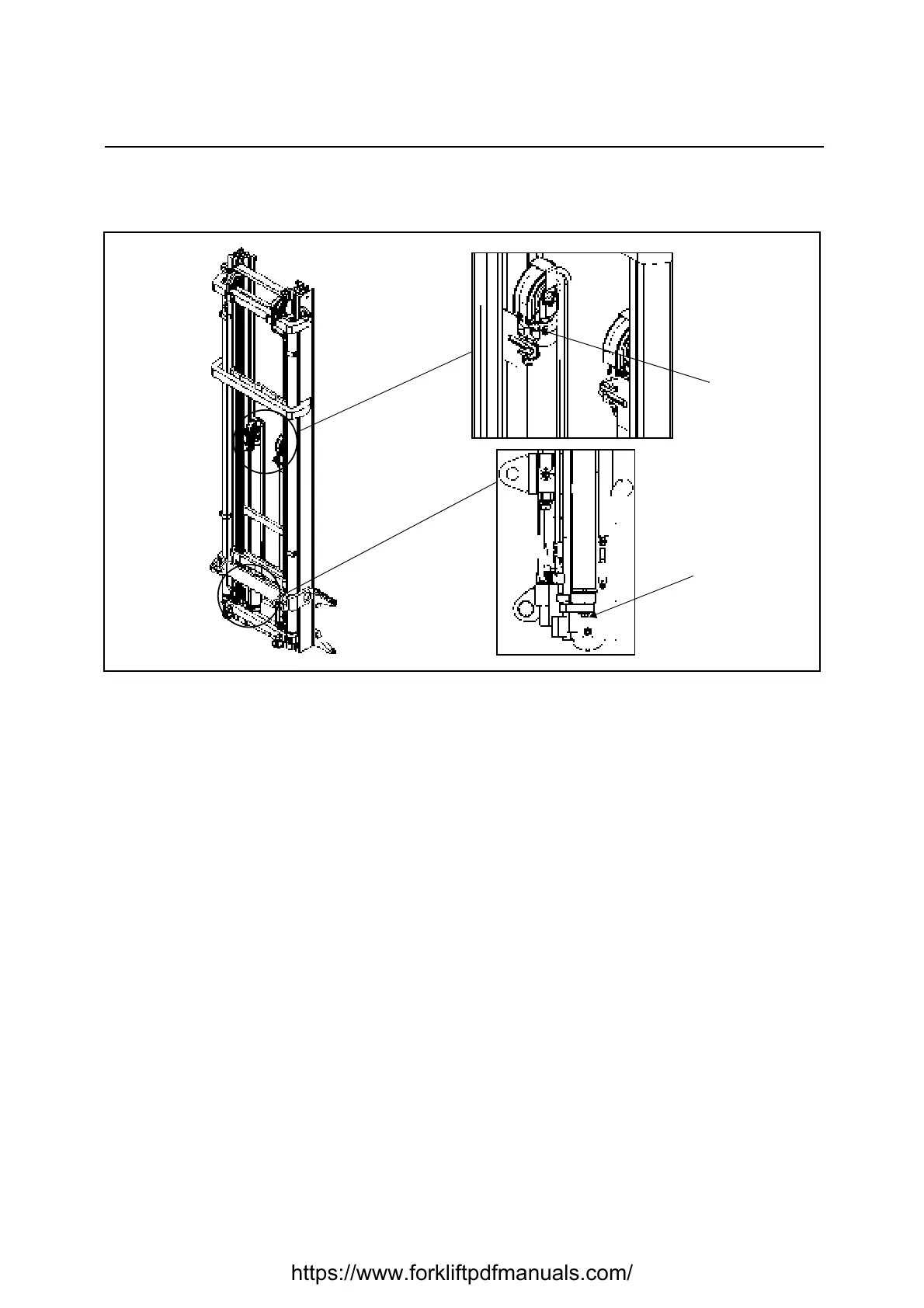

3. Remove the lifting chain and roller from the cylinder [Point 1]
4. Disconnect the cylinder hose
5. Remove the bottom fixing bolt B [Point 2]
6. Remove the upper fixing cylinder bracket A [Point 3]
7. Remove the central cylinder [Point 4]
Installation procedure
The reassembly procedure is the reverse of the disassembly procedure.
Note:
After installing the lifting cylinders, follow the steps below:
1. Without load repeat full stroke lifting and lowering of the cylinder to bleed air and check normal
functioning
2. Check the hydraulic oil level and add if insufficient
