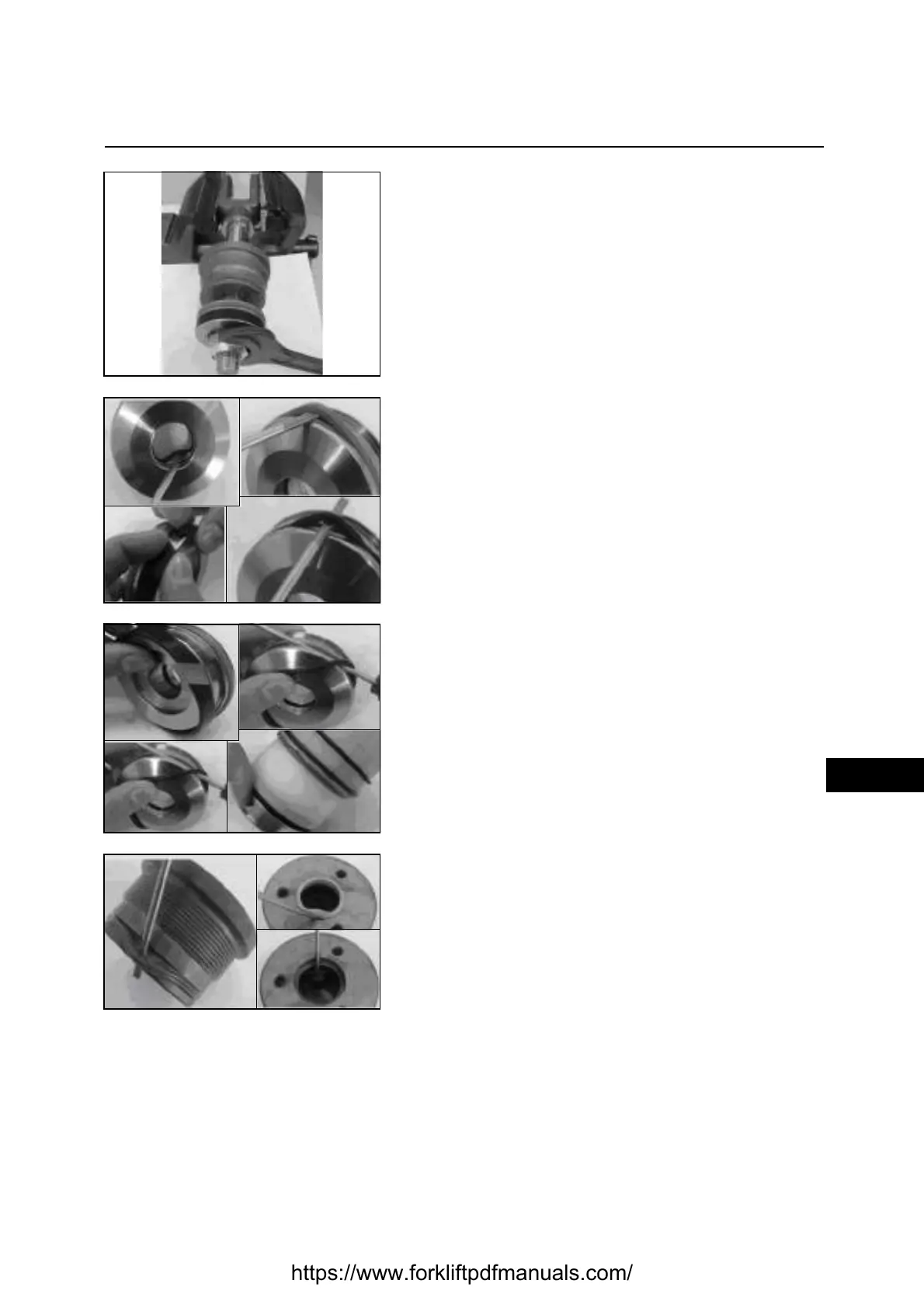

[Point 2]
Disassembly:
Fix the front cylinder connection in a vice and loosen the
piston fixing nut
Installation:
Tightening torque = 300 Nm
Remarks:
During installation insert the cylinder head and the pad
on the piston side to prevent damage to the gaskets
[Point 3]
Disassembly:
Remove the internal and external piston gaskets using a
screwdriver; remove the guide ring by hand
Remarks:
Use the screwdriver carefully taking care not to scratch
the gasket seat
Installation:
Insert the internal/external gaskets or o-rings as shown
to the side, using the SST
Disassembly:
Remove the internal and external gaskets from the
cylinder head using a screwdriver
Remarks:
Use the screwdriver carefully taking care not to scratch
the gasket seat
