14-13
14

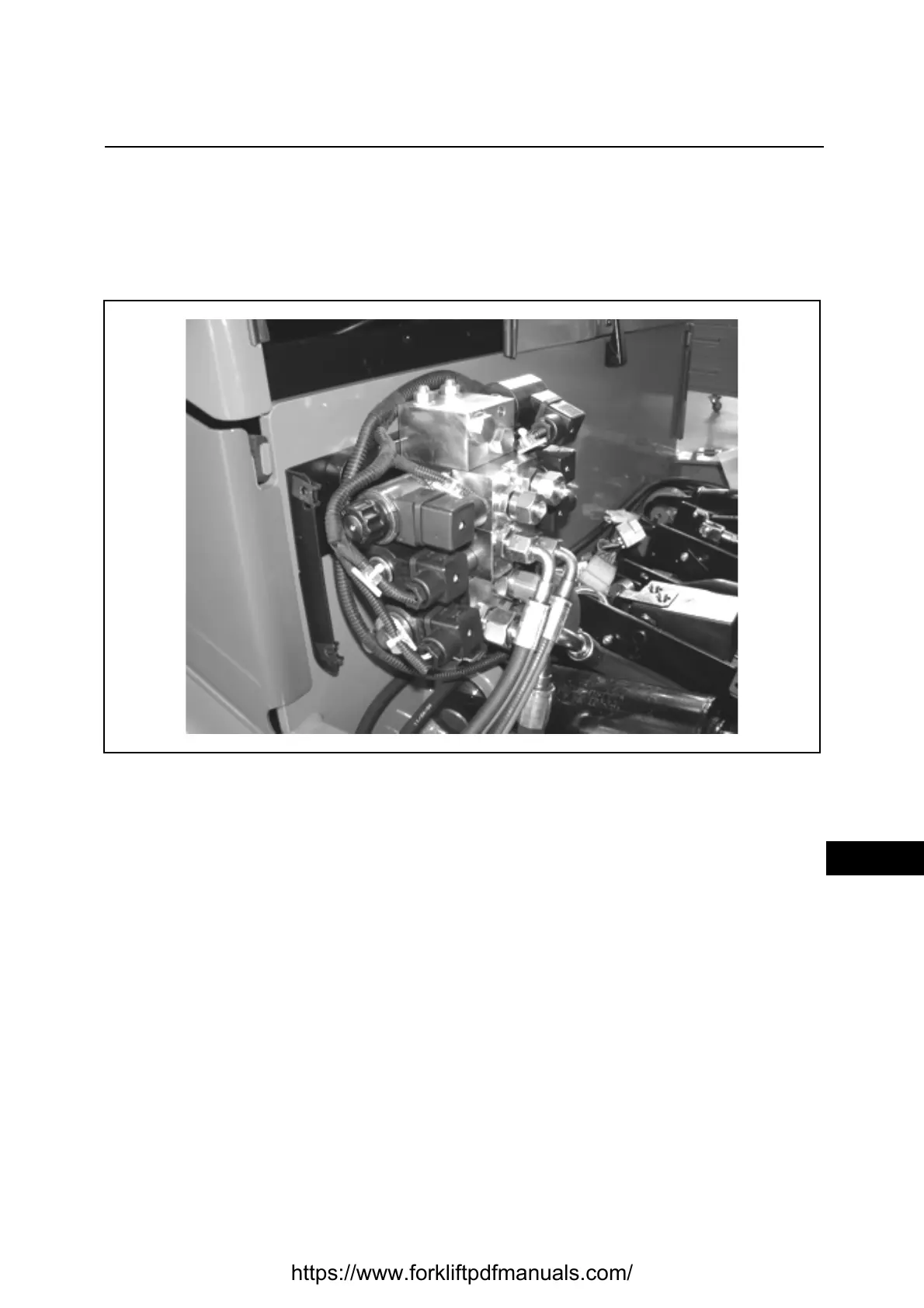

ELECTRIC CONTROL VALVE
DISASSEMBLY • REASSEMBLY
Nota:
Before starting removal, operate levers in order to bring mast in vertical position and forks to
lowest position, releasing the residual pressure in the hydraulic system.
Tightening torque M=Nm
Disassembly Procedure
1. Park the truck on a level surface and activate the parking brake
2. Switch off the truck
3. Open the battery cover and disconnect the battery
4. Remove the footboard and the lateral cover
5. Disconnect the hoses and the wiring harnesses
6. Remove the control valve
Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
Note:
Check the hydraulic oil level, and top up if insufficient
Caution:
To prevent oil falls on the brakes cover them during the execution of the operations
