REVERSE ACOUSTIC WARNING
DISASSEMBLY • REASSEMBLY
Reassembly Procedure
1. Remove the rear metallic cover
2. Fix the clamp to the chassis (rear compartment, left side)
3. Fix the reverse acoustic warning to the clamp
4. Connect the reverse acoustic warning to the wiring (J71 connector)
Disassembly Procedure
The disassembly procedure is the reverse of the reassembly procedure.

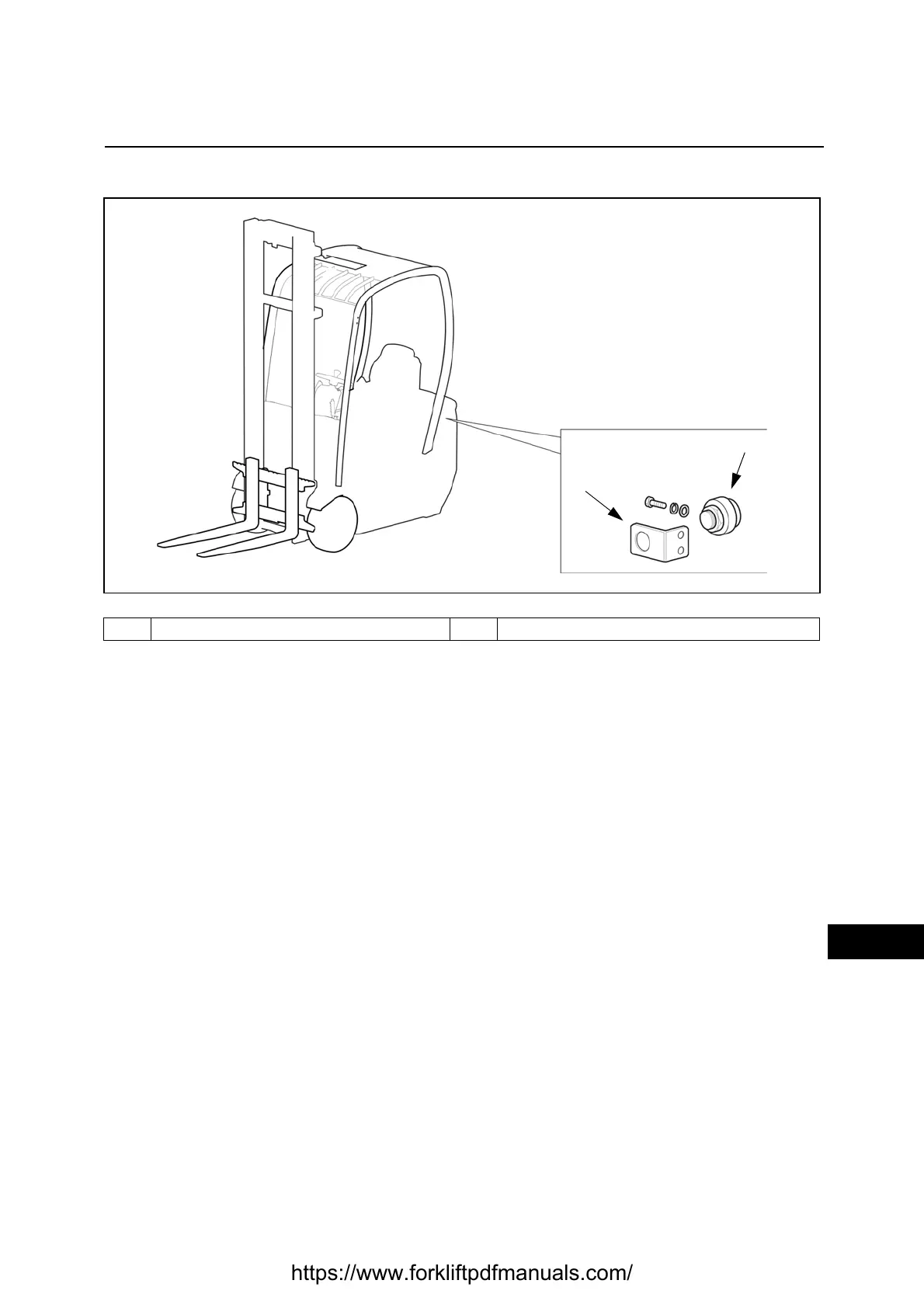

1 Reverse acoustic warning 2 Clamp
1
2
