15-6
WORKING LIGHTS
DISASSEMBLY • REASSEMBLY
Reassembly Procedure
1. Pass the working lights inside the overhead guard bringing it out through the front legs
2. Connect the wiring to the fuse board 24V
3. Insert the fuse (7,5A) on the fuse board (pos. 8)
4. Assembly the push-button on the dashboard and connect it to the wiring
5. Connect the wiring to the working lights
6. Fix the working lights to the clamp and then fix the clamp to the overhead guard
Disassembly Procedure
The disassembly procedure is the reverse of the reassembly procedure.

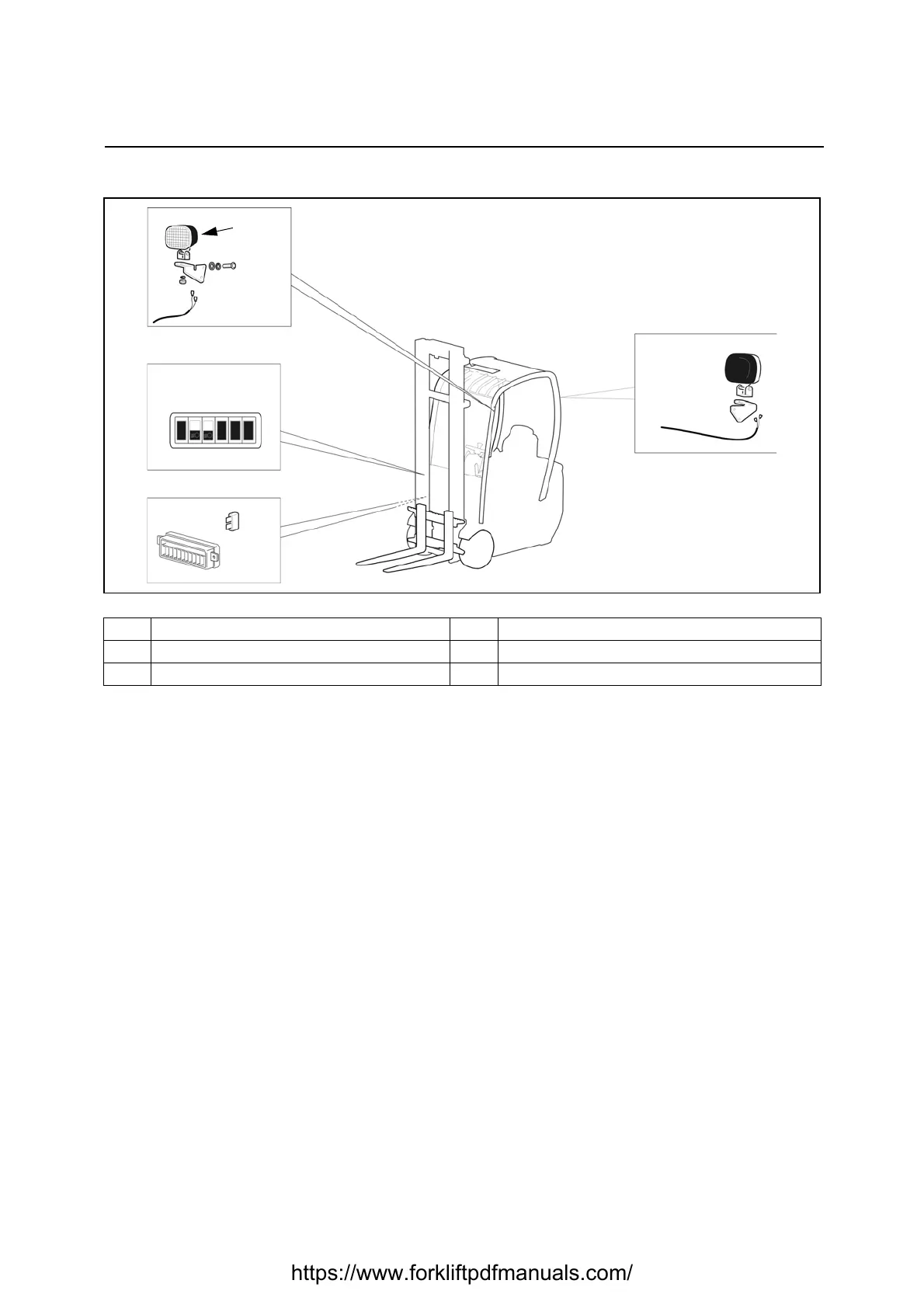

1 Working lights 24V 70W Fuse 7,5A
Wiring Fuse board 24V
Push-button
