CESAB B 200 - COMPLETE LIGHTING SYSTEM DISASSEMBLY • REASSEMBLY

15-7
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
18
18
18

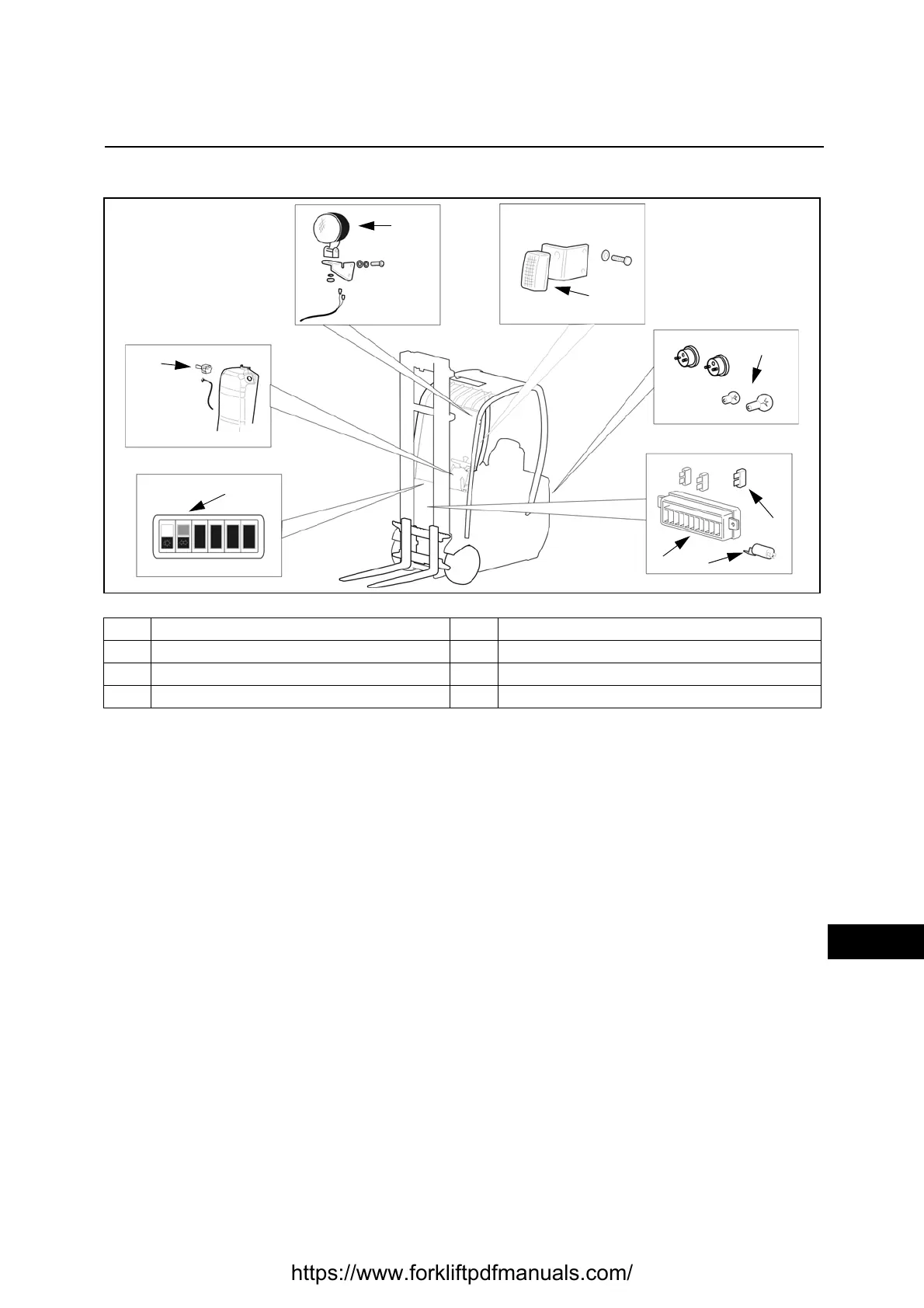

COMPLETE LIGHTING SYSTEM
DISASSEMBLY • REASSEMBLY
Reassembly Procedure
1. Add two bulbs to the rear lights (indicators)
2. Pass the lights and the indicators inside the overhead guard bringing it out through the front legs
3. Connect the wiring to the fuse board 24V
4. Insert the fuse (5A) on the fuse board (pos. 5)
5. Insert the fuse (7,5A) on the fuse board (pos. 2)
6. Assembly the push-buttons on the dashboard and connect it to the wiring
7. Connect the wiring to the lights
8. Fix the lights to the clamp and then fix the clamp to the overhead guard
Disassembly Procedure
The disassembly procedure is the reverse of the reassembly procedure.
1 Selector 5 Flashing
2 Push button 6 Indicator
3 Fuse board 24V 7 Light
4Fuse 8Bulb
1
2
3
4
5
6
7
8
