16-20
SERIAL CONNECTION
All the truck cards except the logic units have a serial connector inside.
Note: The programmer must always be connected to the CAN-BUS connector in order to receive
power

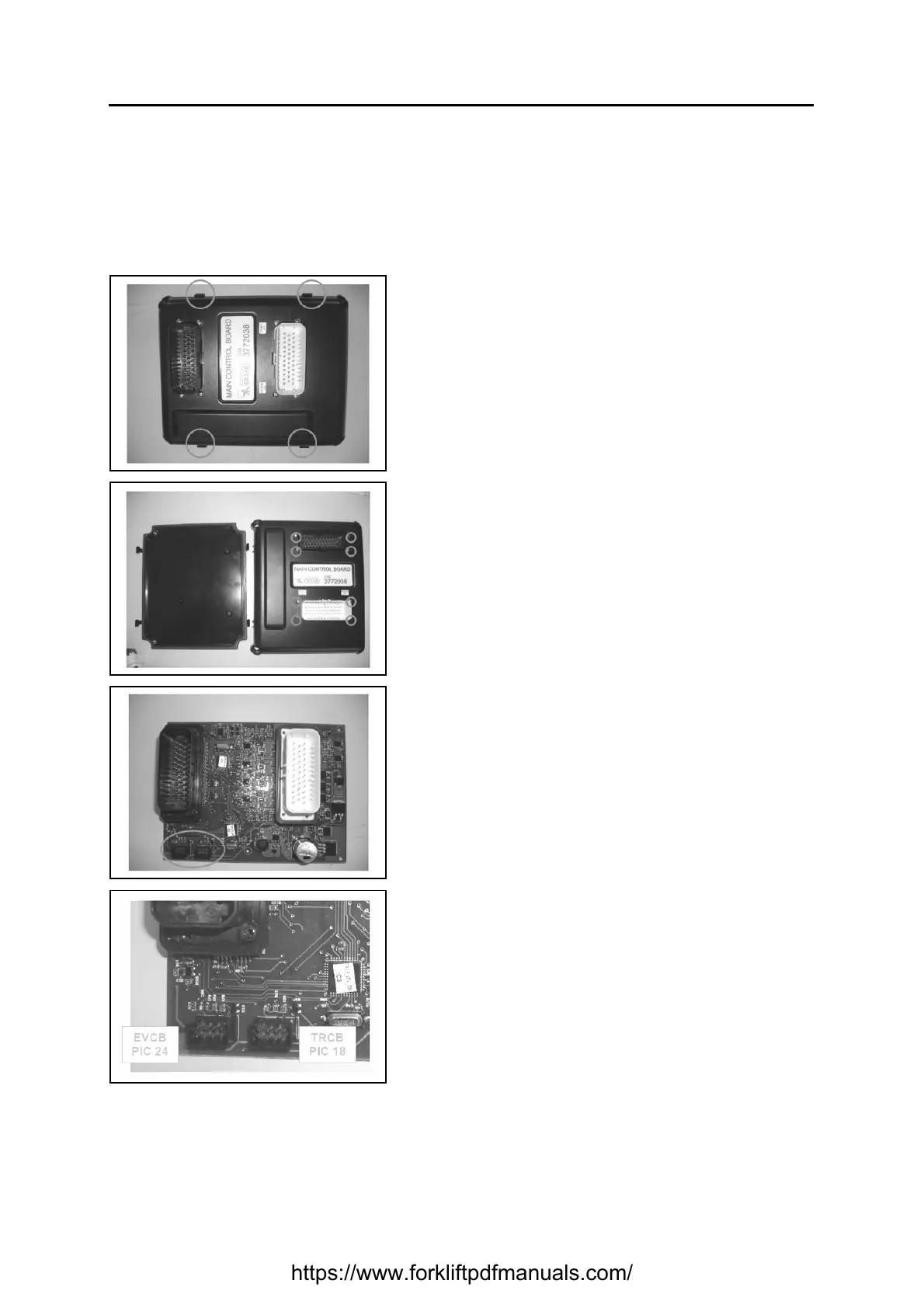

MCB main control board
1. Remove the rear cover by releasing the four clips
2. Remove the front cover by unscrewing the 8 fixing
screws
3. The two serial connectors are near the black
connector
4. PIC24 is the serial connector for the EVCB section
PIC18 is the serial connector for the TRCB section
