CESSNA AIRCRAFT COMPANY FOR TRAINING USE ONLY
MODEL 152 9-8

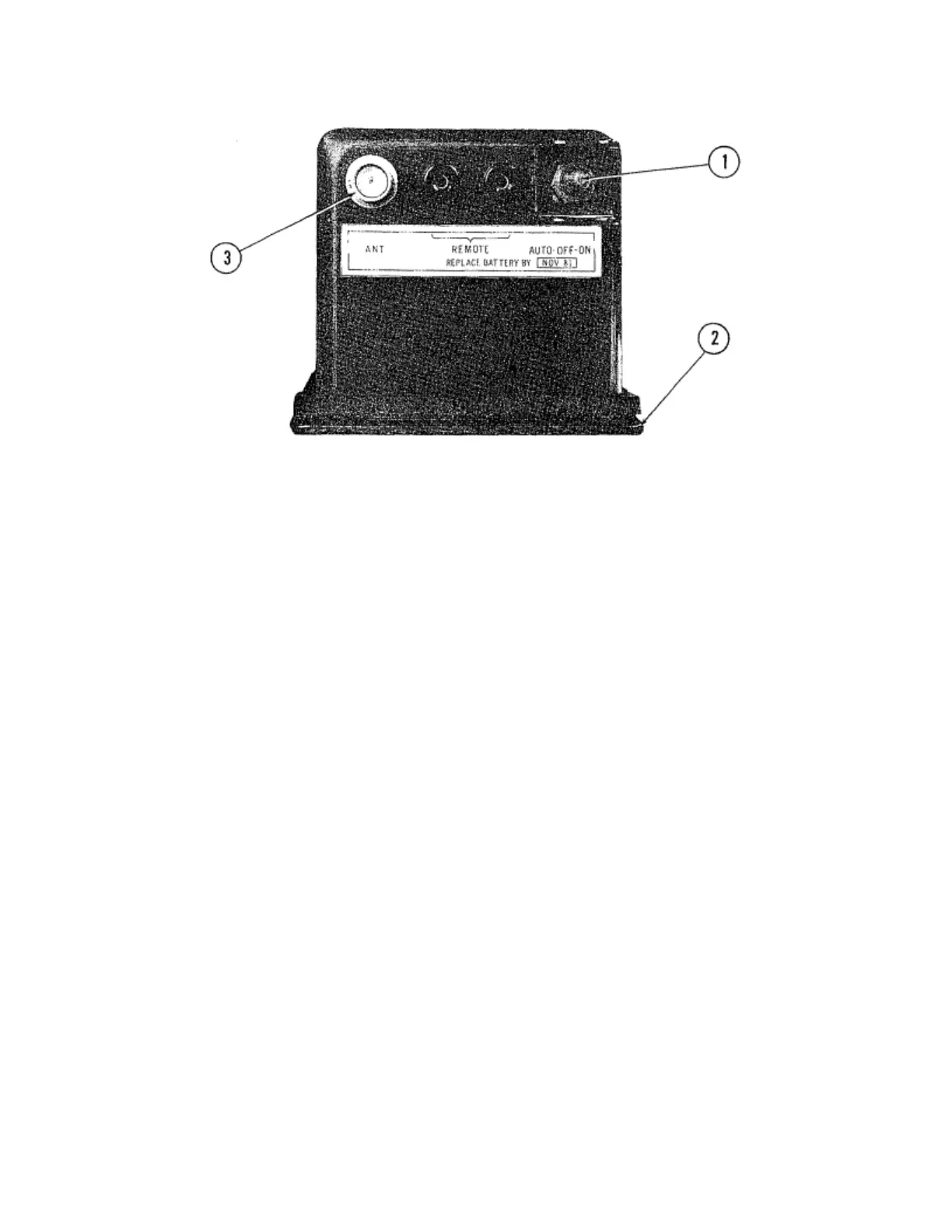

Figure 1. ELT Control Panel
1. FUNCTION SELECTOR SWITCH (3-position toggle switch):
ON Activates transmitter instantly. Used for test purposes and if “G” switch is
inoperative.
OFF Deactivates transmitter. Used during shipping, storage and following rescue.
AUTO Activates transmitter only when “G” switch receives 5G or more impact.
2. COVER – Removable for access to battery pack.
3. ANTENNA RECEPTACLE – Connects to antenna mounted on top of tailcone.
SECTION 2 – LIMITATIONS
There is no change to the airplane limitations when this equipment is installed.
SECTION 3 – EMERGENCY PROCEDURES
Immediately after a forced landing where emergency assistance is required, the ELT should be utilized as
follows:
1. ENSURE ELT ACTIVATION – Turn a radio transceiver ON and select 121.5 MHz. If the ELT can be
heard transmitting, it was activated by the “G” switch and is functioning properly. If no
emergency tone is audible, gain access to the ELT and place the function selector switch in the
ON position.
