Cessna T188C - Page 128

MODEL
188
& T188
SERIES
SERVICE
MANUAL
1.
Aileron
2. Hinge Support
5.
Balance
Weight
6. Bolt
7.
Nutplate
8.
Plug
Button
.9. Access
Plate
DetailA 12
10.1
Cotter Pin
BEGINNING
WITH
18803853,
18803857
11
Nut
AND
ON
AND
WHEN
MODIFIED
PER
12.
Washer
CESSNA
SINGLE-ENGINE
SERVICE
INFORMATION
LETTER
SE81-32,
AG81-4

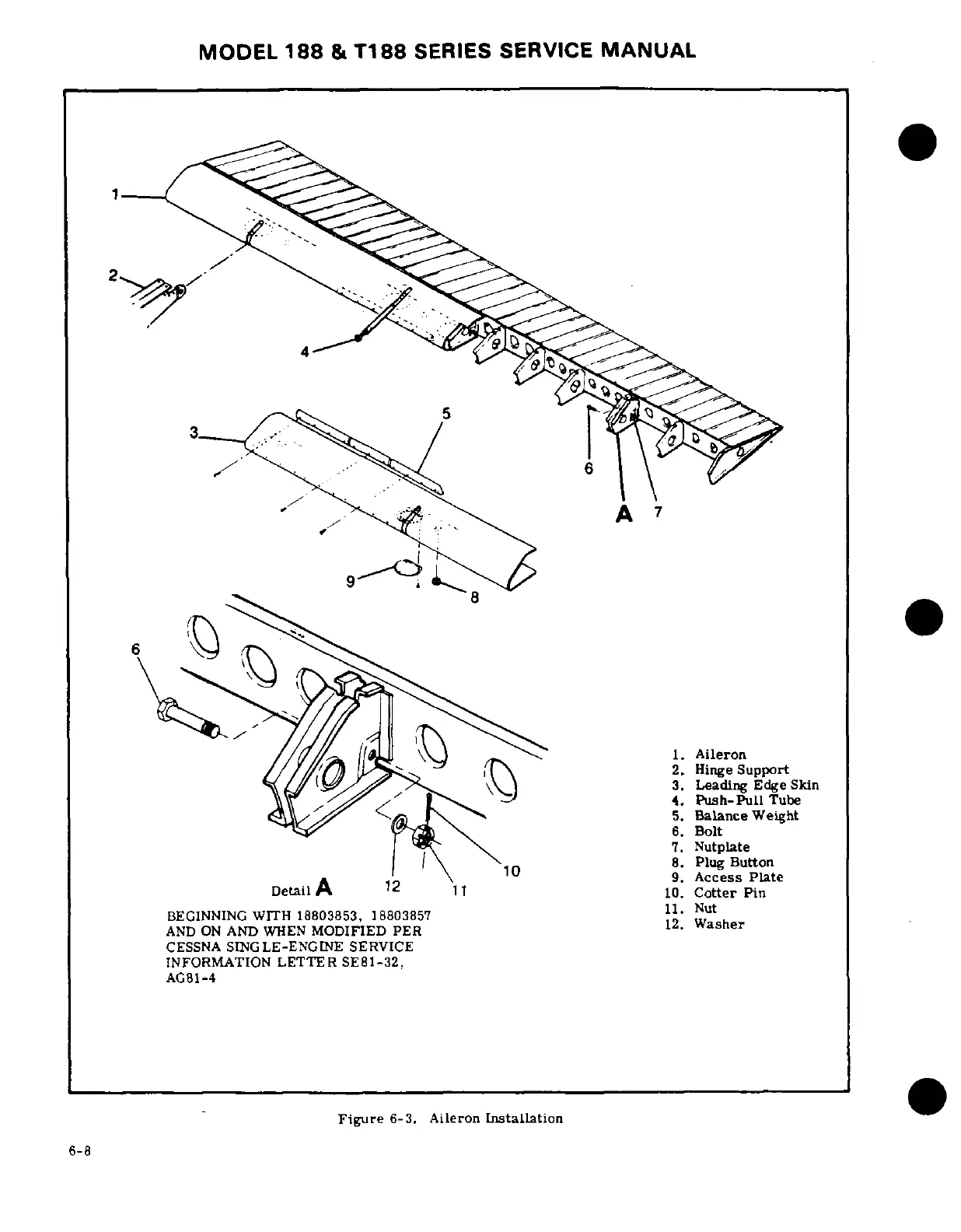

Figure 6-3.
Aileron
Installation
6-8
