4. Remove straightedges.
5. Hold rudder against right, then left, rudder stop. Measure distance from pointer to pencil mark
on rudder in each direction of travel. Distance should be in accordance with following chart:
MODEL YEAR MINIMUM TRAVEL MAXIMUM TRAVEL
188 SERIES THRU AIRCRAFT 7.49" 7. 81"
SERIAL 188-0317
188 SERIES BEGINNING WITH 7.30" 7.63"
AIRCRAFT SERIAL
188-0318

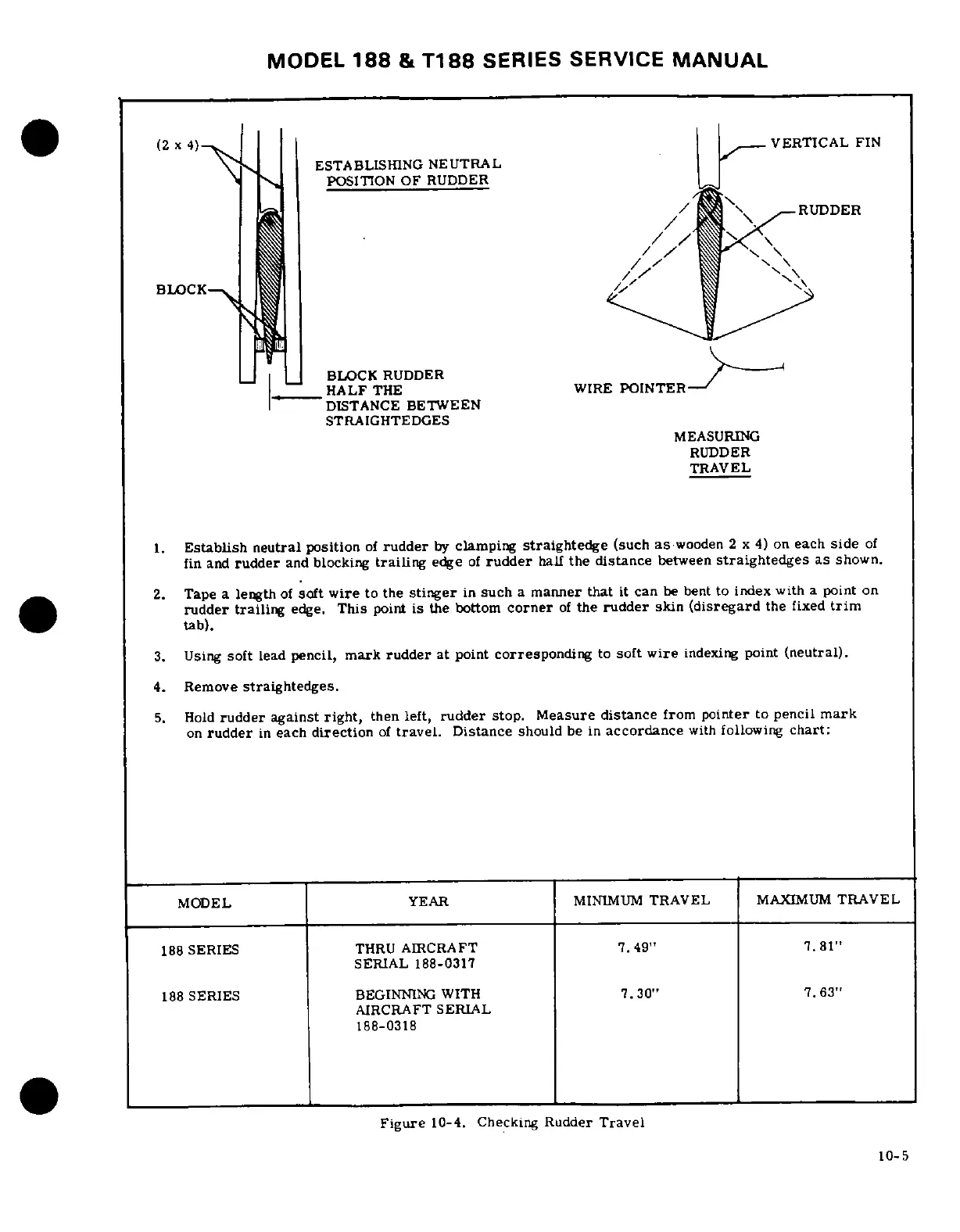

Figure
10-4. Checking
Rudder
Travel
10-5
