Cessna T188C - Page 182

MODEL
188
& T188
SERIES
SERVICE
MANUAL
4
A
1. Tailpipe
2. Clamp Half
3. Stack Assembly
4. Riser
5. Shroud
6. Cabin Heat Inlet
7. Muffler Weld Assembly
8. Clamp
9. Support
10. Ball-joint
BEGINNING
WITH AIRCRAFT
18800800,
18800802,
18800805
THRU 18802706 AND 18802710.
Detail A
NOTE
When cabin
heating system
is not
MINIMUM
CLEARANCE
BETWEEN
EXHAUST STACK
installed,
cabin heater
duct is
AND COWL TO
BE .62 "
routed overboard to help cool the
muffler.

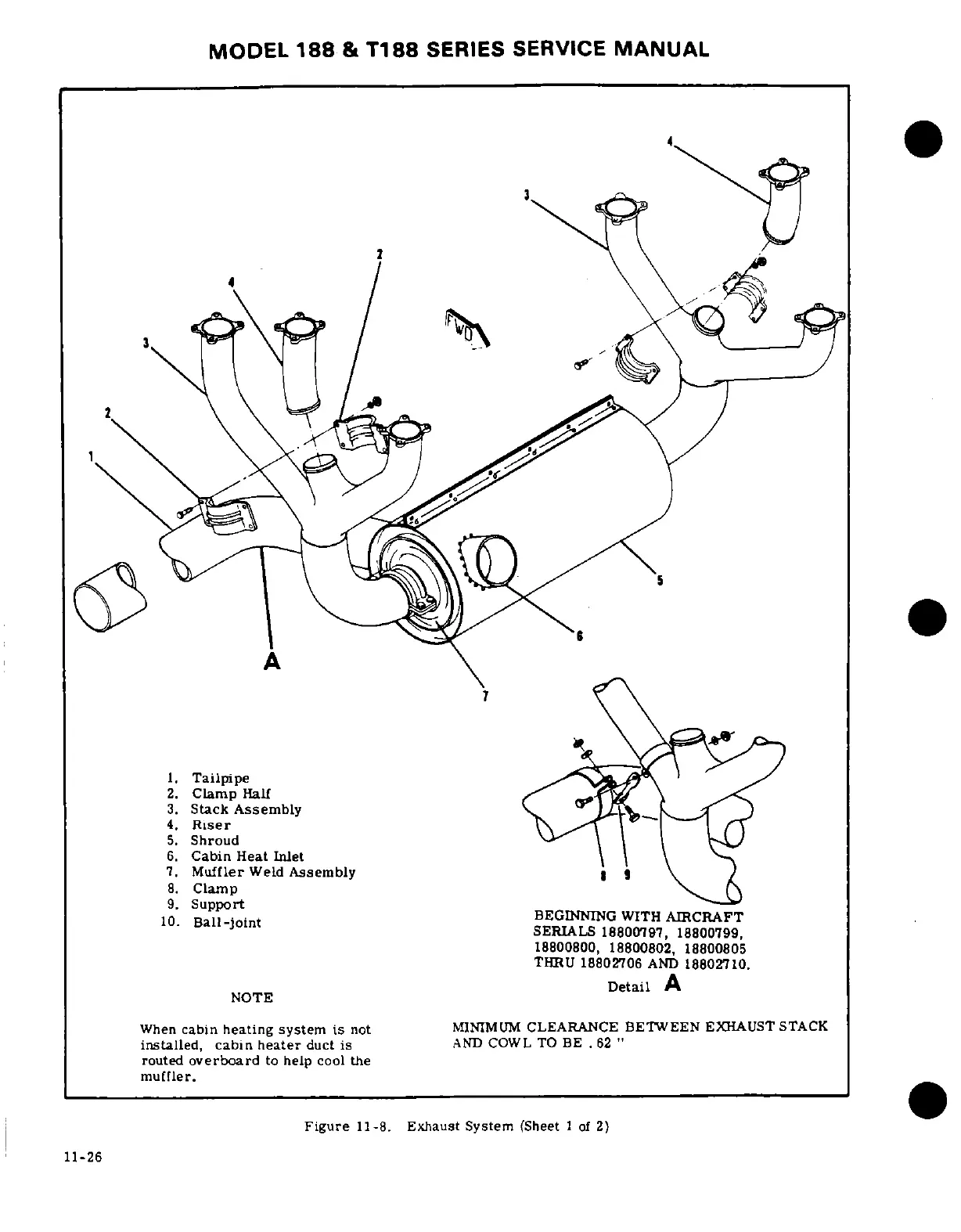

Figure 11-8. Exhaust System (Sheet 1 of 2)
11-26
