Cessna T188C - Page 232

MODEL
188
&
T188
SERIES
SERVICE
MANUAL
1.
Air
intake
2.
Air
Filter
21
3. Rotary
Air
Valve
20
4.
Turbocharger
Compressor
Section
19
5.
Induction
Relief
Valve
6.
Throttle
Body
7 Throttle Valve
8.
Exhaust
Manifold
LH
9.
Intake
Manifold
LH
10
Crossover
Tube (Intake
Balance)
11. Exhaust Manifold RH
12.
Intake
Manifold
RH
13.
Exhaust
Crossover
Pipe
14.
Wastegate
Valve
Adjusting
Bolt
15.
Tailpipe
LEGEND:
16.
Wastegate
Valve
17.
Turbocharger
Turbine
Section
RAM
AIR
18 Turbine
Wheel
(Radial Inward
Flow)
19. Turbocharger
Main
shaft
COMPRESSED
AIR
20.
Turbocharger
Bearing
Housing
21. Compressor
Wheel
(Centrifugal)
EXHAUT
AIR

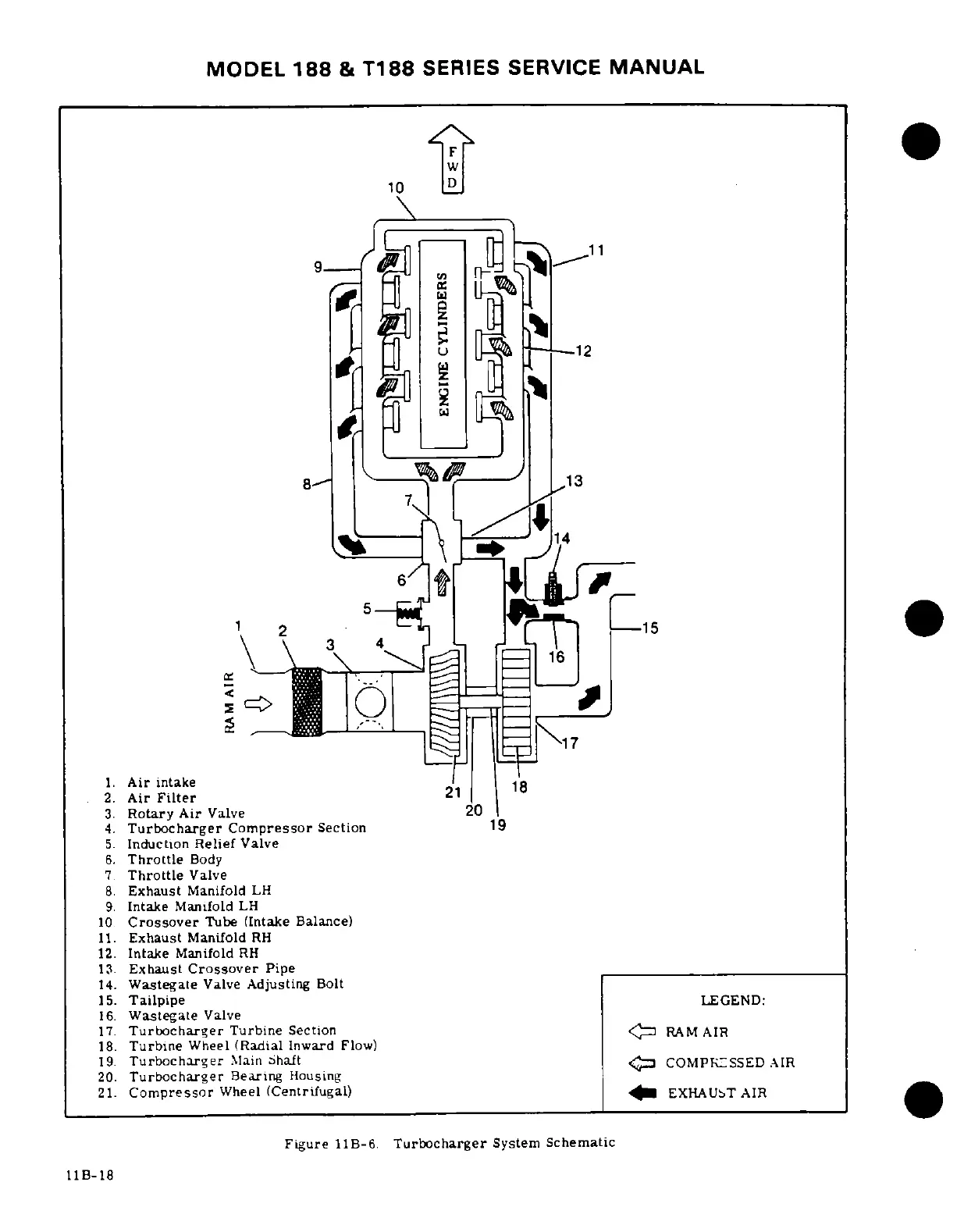

Figure
11B-6
Turbocharger
System
Schematic
11B-18
