Cessna T188C - Page 234

MODEL
188 & T188
SERIES SERVICE
MANUAL
1
2

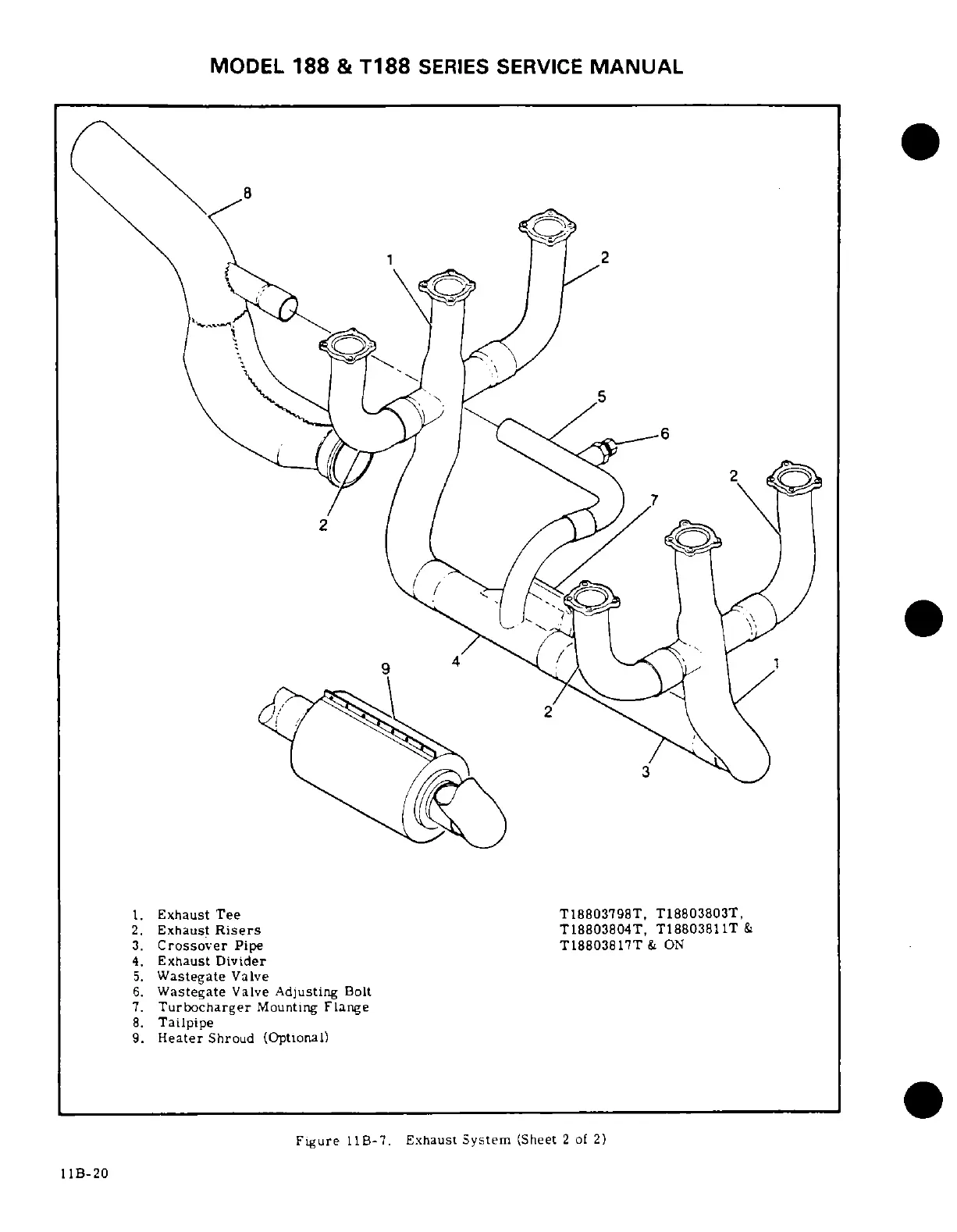

1. Exhaust
Tee
T18803798T,
T18803803T,
2. Exhaust
Risers
T18803804T,
T18803811T
&
3. Crossover Pipe T18803817T& ON
4. Exhaust Divider
5. Wastegate
Valve
6. Wastegate Valve Adjusting Bolt
7. Turbocharger
Mounting
Flange
8. Tailpipe
9. Heater Shroud (Optional)
Figure
11B-7.
Exhaust
System
(Sheet
2 of
2)
11B-20
