Cessna T188C - Page 258

MODEL
188
&
T188
SERIES
SERVICE
MANUAL
here
with
carburetor-equipp-
ed engine. Hole plugged on
fuel Injected
engine.-
7
SAFETY
WIRE
HOLE
* BEGINNING
WITH
SERIAL 18802557
1
2
39,* -
-13
15
I 2
NOTE
Ji ~ ~~~~~~/ /^~ i~ ~Torque nut (15) to 25-30 lb-in.
SAFETY
WIRE
HOLE
* SERIAL
NO. A188-0446
& ON
1. Spring
6. Plate
12. O-Ring
2.
Washer
7. O-Ring
13.
Bowl
3. Plunger
8. Gasket
14. O-Ring
4. Top
9. Filter
15. Nut
5. Drain Control
10. Retainer
Ring 16.
Drain Tube
11.
Standpipe

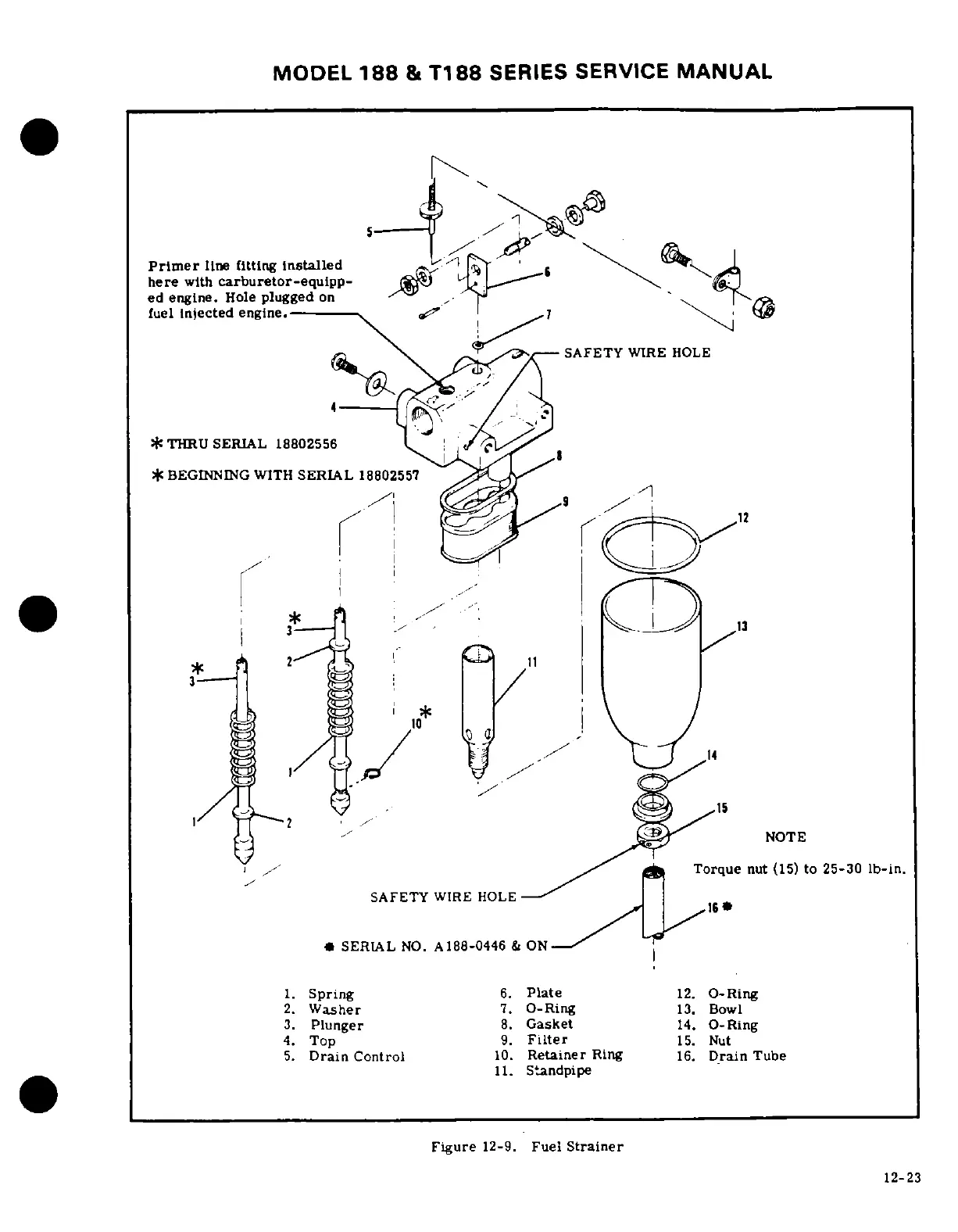

Figure
12-9.
Fuel
Strainer
12-23
