Cessna T188C - Page 271

MODEL 188
& T188 SERIES
SERVICE
MANUAL
NOTE
Additional spacers
(4),
Cessna part
number
0752620-3,
may be required
when installing
a new
spinner (1)
to ensure a
snug fit between
spinner
(1) and spinner
support (3).
DO NOT
13 14
15
use more than a total of 14 spacers in this 16
installation.
10
11
19
1. Spinner 11. Dowel Pin
2. Screw
12.
O-Ring
3. Spinner Support 13. Crankshaft
4. Spacer 14. Washer
NOTE
5.
Cylinder
15.
Nut
6. Screw
16. Spinner
Bulkhead
10. Stud
MODEL T188 Beginning With T18803297T
THREE
BLADED
(THREADLESS)

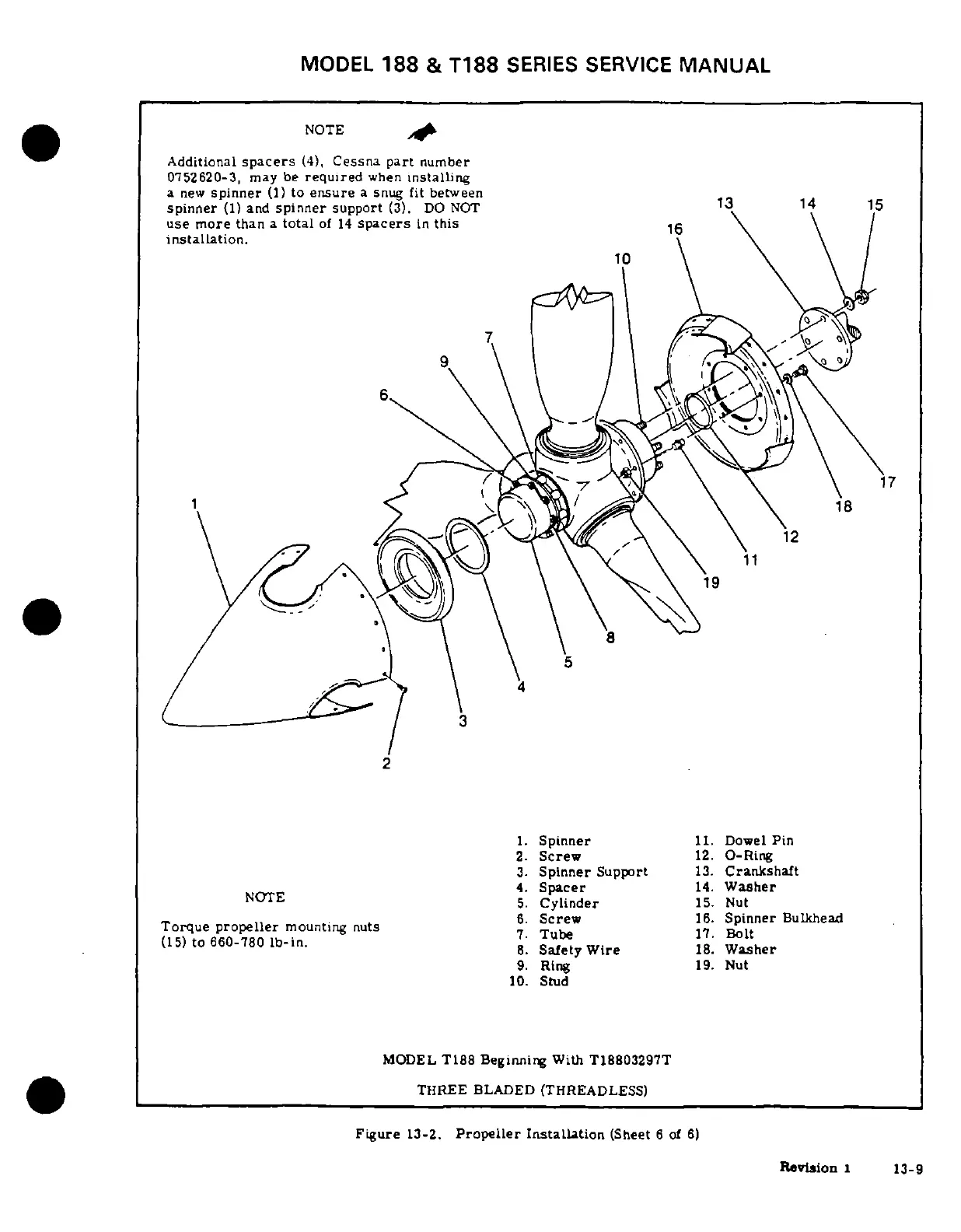

Figure
13-2. Propeller
Installation
(Sheet 6 of
6)
Revision
1
13-9
