MODEL 188 & T188 SERIES SERVICE MANUAL
1. Housing Assembly 9. Cover 16. Cotter Pin
2. Drain Line 10. Air Vent Door Assembly 17. Washer
3. Clamp 11. Seal 18. Actuator Assembly
4. Stay-Strap 12. Canopy Top Skin 19. Washer
5. Grommet
13. Stud
20. Spring Washer
6. Lever Assembly
14.
Nut
21. Spacer
7. Screw 15. Door Control Link 22. Bolt
8. Air Guide Assembly 23. Union

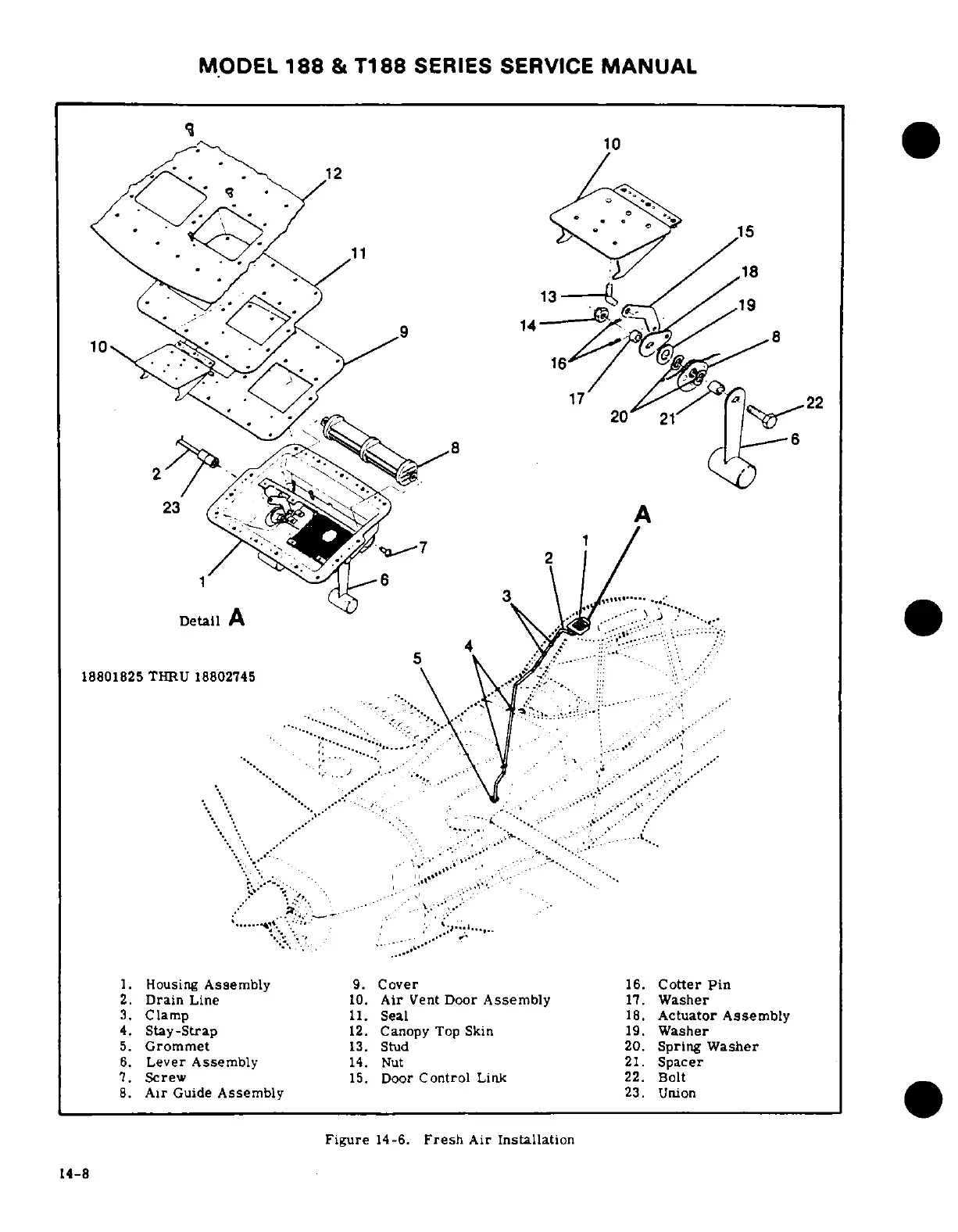

Figure
14-6.
Fresh Air
Installation
14-8
