Cessna T188C - Page 313

MODEL
188
& T188
SERIES
SERVICE
MANUAL
23
25
2
26
~22
Detail A
BEGINNING WITH
*21 A
18801767
19
4
X-^ MO'
O n
Lat.e models,
the battery
box are rotated
180 degrees.
v
^12^12-VOLT,
25 AMP
HOUR
BATTERY
1.
24 Amp-Hour
Battery
11.
Nut
21.
Fuse
-7.5
Amp
14
i;
2. Lid
Assembly
12.
Lockwasher
22.
Screw
3.
Box
Assembly
13.
Positive
Battery
Cable
23.
Fuse
4.
Pin
14.
Diode
24.
Nylon
Nut
5.
Angle
Assembly
15.
Washer
25.
Nylon
Washer
6.
Bolt
16. 1
Master
Switch
Wire
26.
Bracket
7.
Negative
Ground
Strap
17.
Power
Cable
to
Bus
27.
Nylon
Spacer
8.
Clamp
18.
Gnd
Ser
Recpt
Cable
28.
Insulating
Washers
9.
Tube
- Drain
19.
Wire
to
Gnd
Ser Recpt
29.
Solder
Terminal
10.
Angle
Assembly
20.
Resistor
-
.75
Ohm
30.
Wire
to
Battery

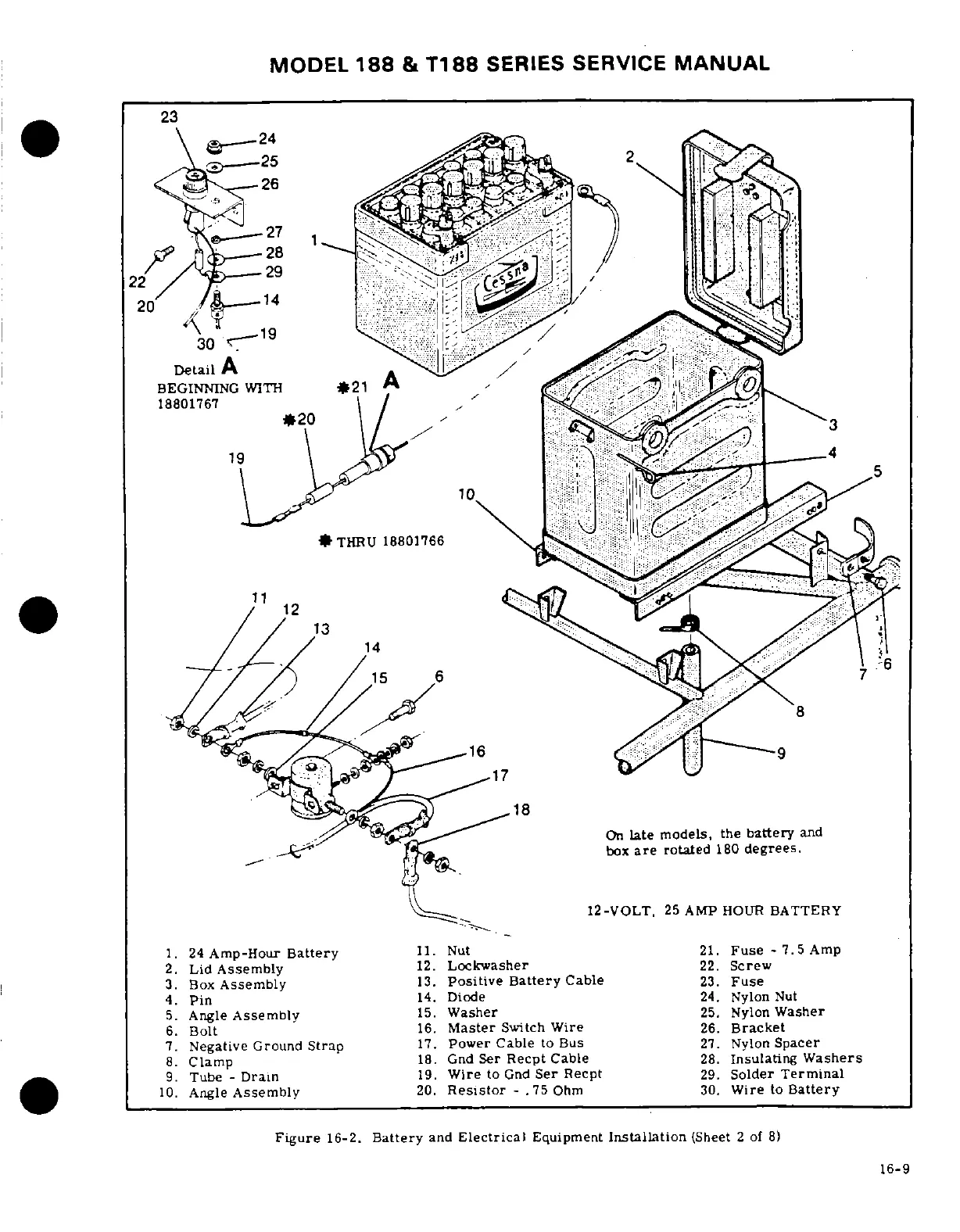

Figure 16-2.
Battery
and Electrical
Equipment
Installation
(Sheet 2 of
8)
16-9
