Cessna T188C - Page 322

MODEL
188
&
T188
SERIES
SERVICE
MANUAL
Ground
service
receptacle
is
located
on right
hand side
of
aircraft
at aircraft
serial
188-0318
and
on.
3
36\ 4
'Re\er
to
figure
16-1
tor
2
7
DetAil
THRU 18803856
20
me16 t
r
fo
24
_
15
Detail B
BEGINNING
WITH
18801767
(Refer
to figure
16-1
for
prior
installation)
1. Power
Cable
9. Screw
17.
Fuse
2.
Nipple
10.
Receptacle
18. Nylon
Nut
3. Nut
11.
Doubler
Assembly
19.
Nylon
Washer
4.
Star Lockwasher
12. Stud
- Locking
20.
Nylon Spacer
5. Washer
13. Door
Assembly
21. Insulating
Washers
6. Ground
Strap
14. Placard
22. Solder
Terminal
7.
Bracket
15. Closing
Circuit
Wire
23.
Diode
8.
Receptacle
16.
Resistor
- .75
Ohm
24. Wire
to
Battery

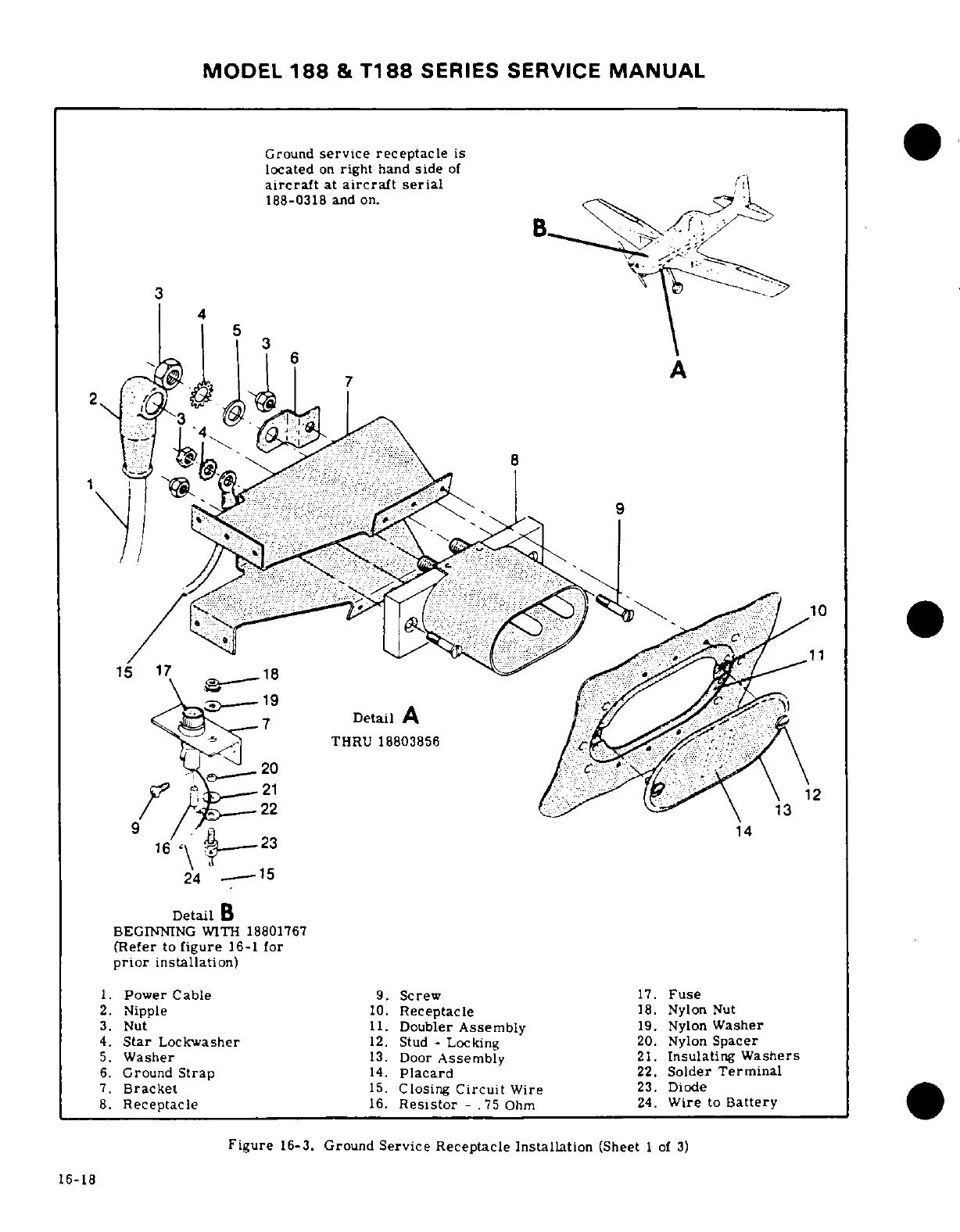

Figure
16-3.
Ground
Service
Receptacle
Installation
(Sheet
1 of
3)
16-18
