MODEL 188 & T188 SERIES SERVICE MANUAL
NON-SHOCKMOUNTED
100 AMP ALTERNATOR
TORQUE
BOLT
TO 165
10 LB-IN
THRU
1977
MODELS
1. Nut 9. Drive Belt
2. Washer
10.
Washer
3. Safety
Wire
11. Bolt
4. Bolt
12. Engine
5.
Washer
13. Engine Mount
Support
6. Arm-Adjusting
14. Lock Washer
7. Washer 15. Washer
8. Bolt
16. Alternator

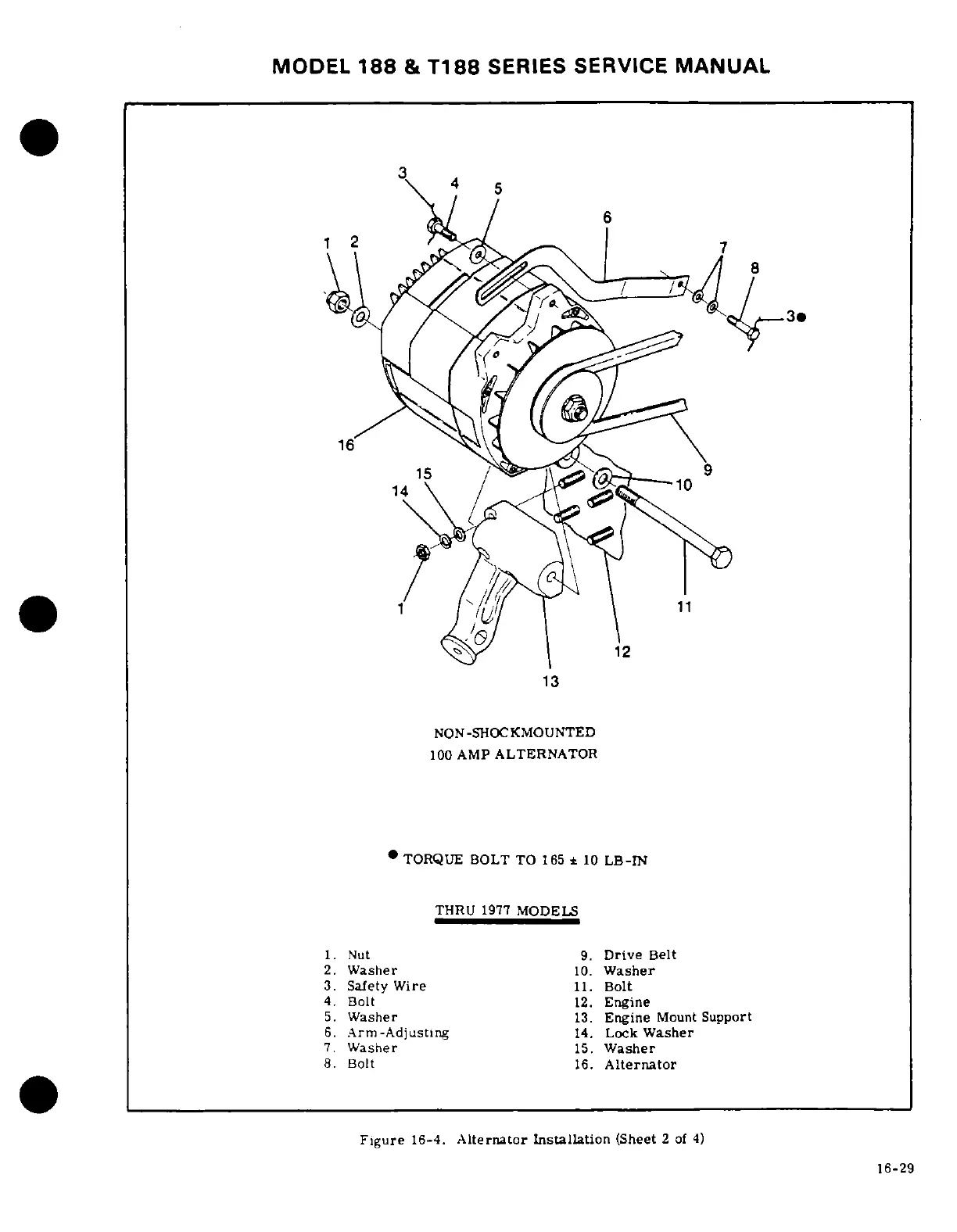

Figure 16-4.
Alternator Installation
(Sheet
2 of 4)
