TORQUE
TO
720-1000
IN.
LB.
2'k
. i /}"'""*
TORQUE TO 165 ± 10
IN. LB.
-^~ ~ ~~~~~1 / I / 1 * TORQUE TO 450-500 IN LB.
X
/d
7*
*TORQUE
TO
200-270 IN.
LB.
188-0001 THRU 18803240 WHEN MODIFIED
PER
SK210-84
AND BEGINNING
WITH
18803241
1. Washer
2. Bolt
3. Alternator
4. Arm-Adjusting
5. Drive Belt
6. Support
7.
Nut

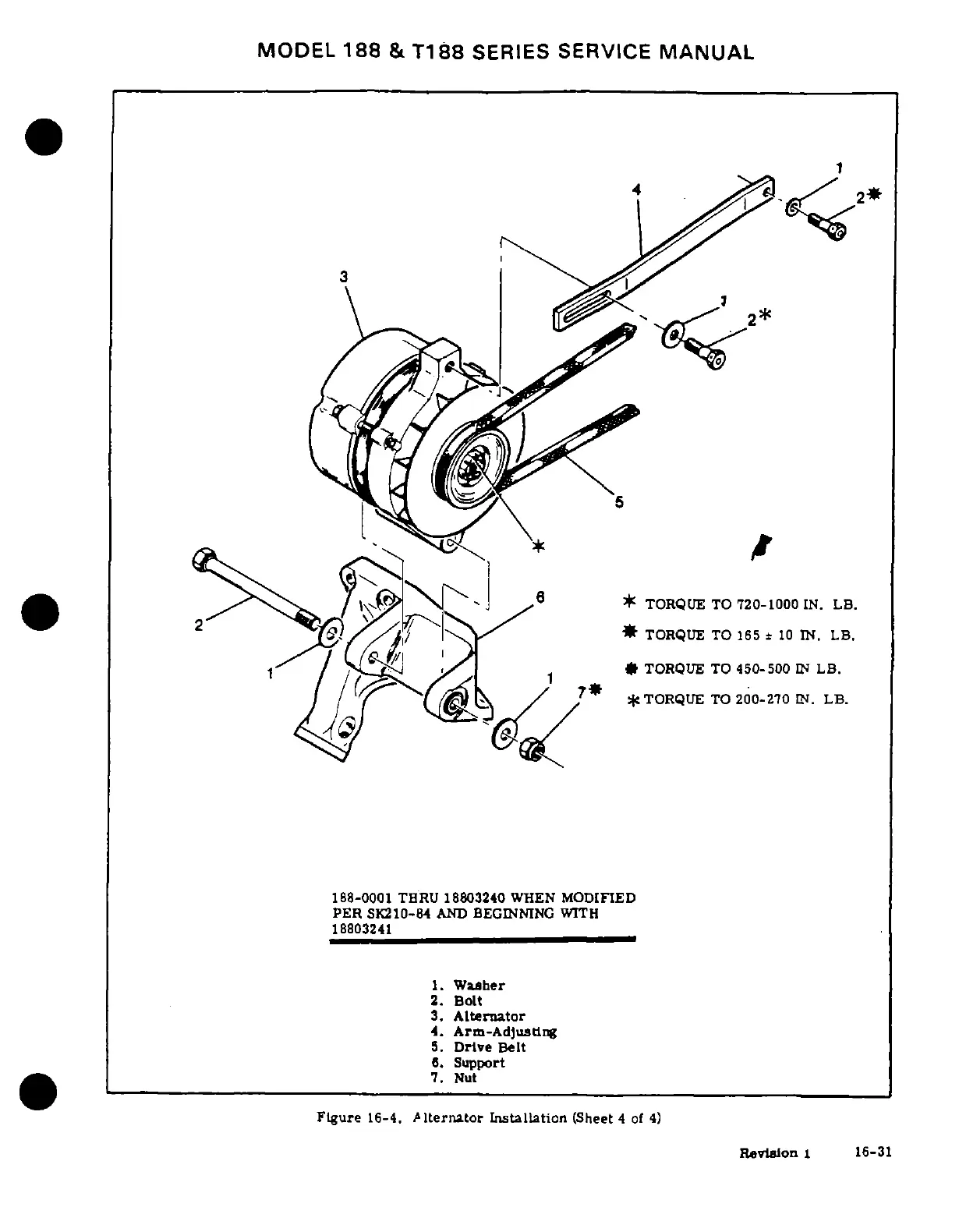

Figure
16-4.
Alternator
Installation
(Sheet
4 of 4)
