MODEL 188 & T188 SERIES SERVICE MANUAL
BEGINNING
WITH
18801998
16
35
37
24 VOLT OVER-VOLTAGE RELAY 14 VOLT OVER-VOLTAGE SENSOR
18801998
THRU
18803046
Detail C

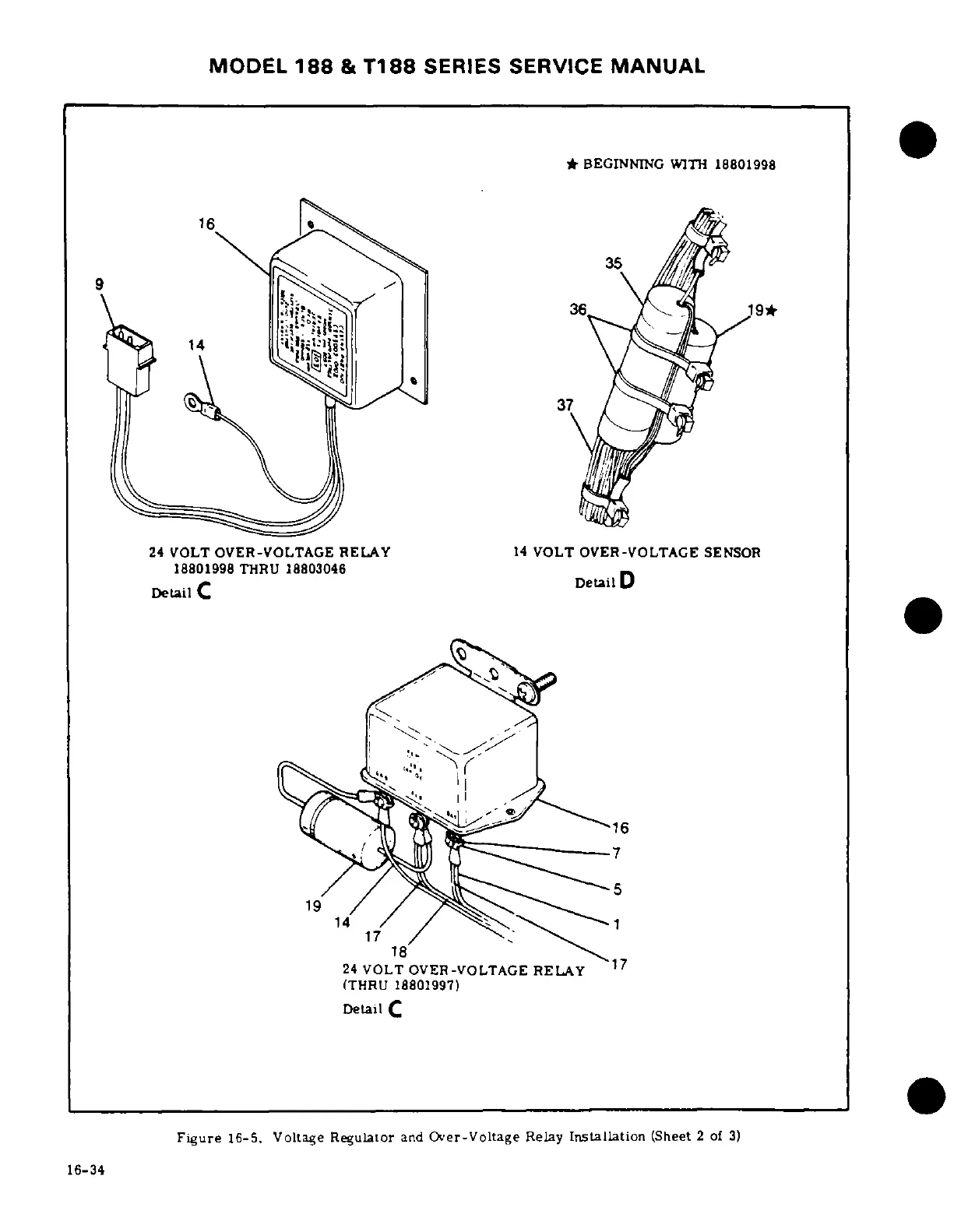

Figure 16-5.
Voltage
Regulator
and Over-Voltage
Relay
Installation
(Sheet 2
of 3)
16-34
16-34
