MODEL
188
& T188
SERIES
SERVICE
MANUAL
9
3
\
I,.8
Detail A
Detail
B
1. Screw
2. Washer
3. Transistor
4. Mica Washer
5. Heat Sink
6.
Cabin
Skin
7.
Housing
socket
8.
Rheostat
9. Instrument
Panel
10.
Knob

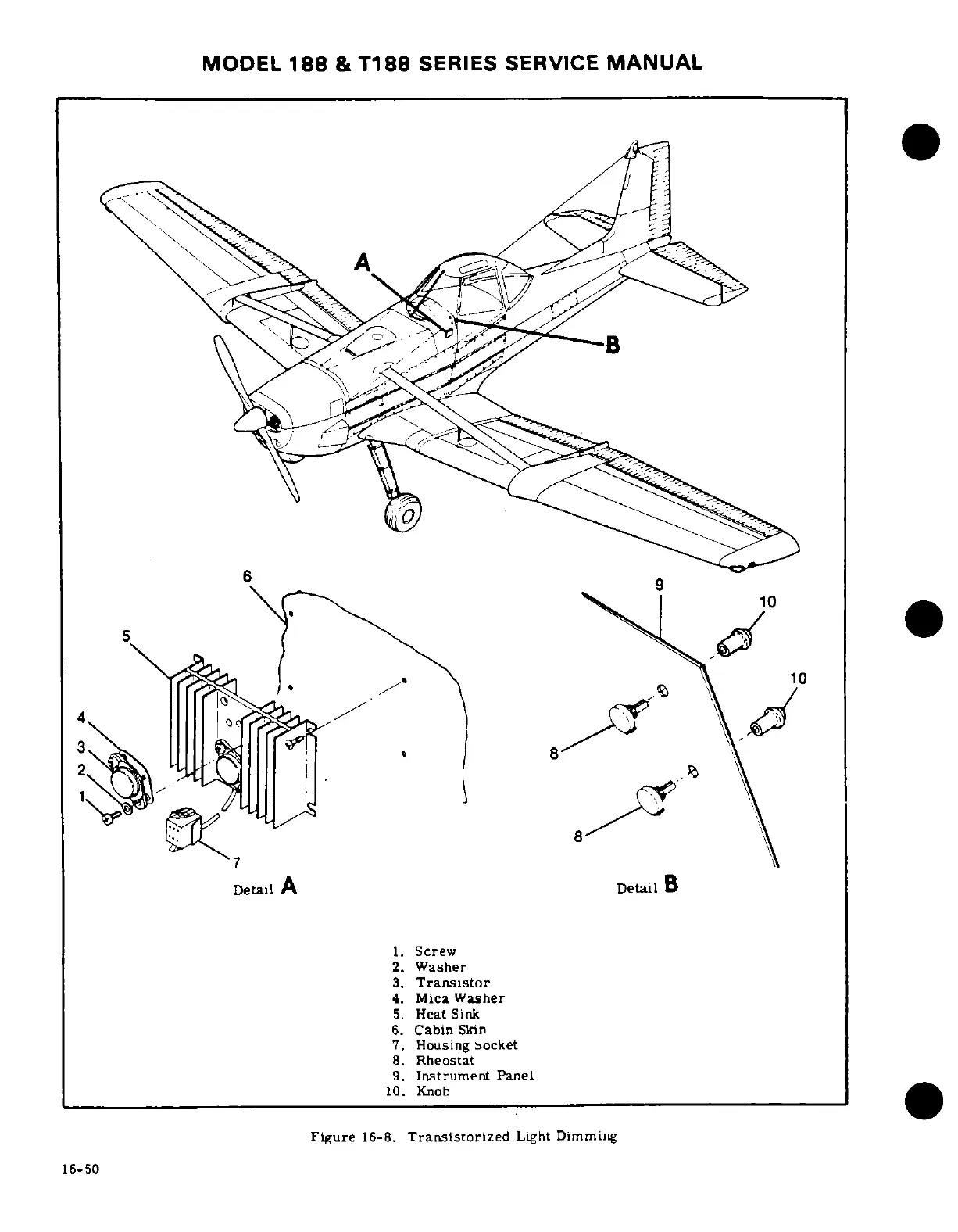

Figure
16-8.
Transistorized
Light
Dimming
