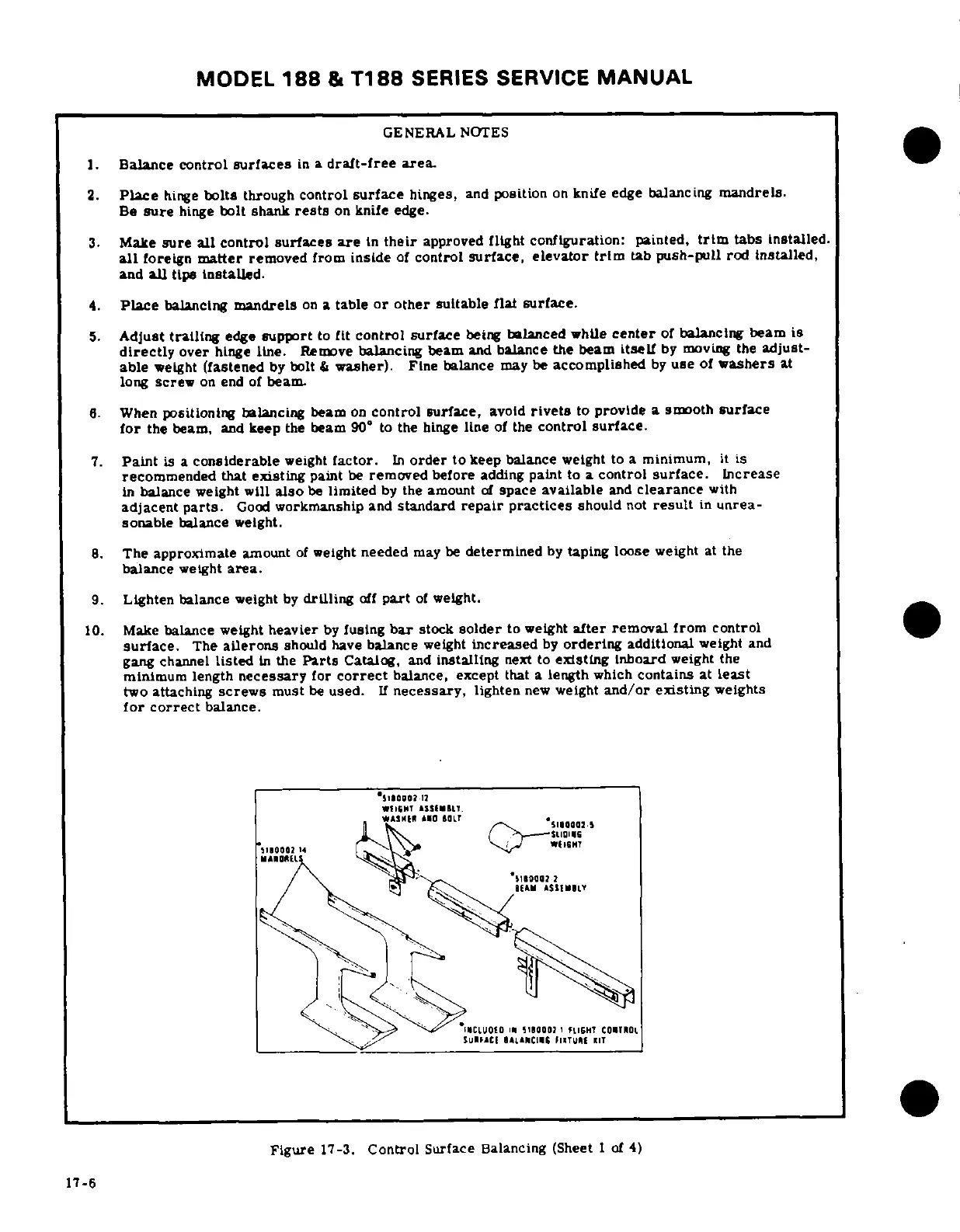

MODEL
188
&
T188
SERIES
SERVICE
MANUAL
GENERAL
NOTES
1.
Balance
control
surfaces
in
a
draft-free
area.
2.
Place
hinge
bolts
through
control
surface
hinges,
and
position
on
knife
edge
balancing
mandrels.
Be
sure
hinge
bolt
shank
rests
on
knife
edge.
3.
Make
sure
all
control
surfaces
are
in
their
approved
flight
configuration:
painted,
trim
tabs
installed.
all
foreign
matter
removed
from
inside
of
control
surface,
elevator
trim
tab
push-pull
rod
installed,
and
all
tips
installed.
4.
Place
balancing
mandrels
on
a
table
or
other
suitable
flat
surface.
5.
Adjust
trailing
edge
support
to
fit
control surface
being
balanced while
center
of
balancing
beam
is
directly
over
hinge
line.
Remove
balancing beam
and
balance
the
beam
itself
by
moving
the
adjust-
able
weight
(fastened
by
bolt
&
washer).
Fine
balance
may
be
accomplished
by
use
of
washers
at
long
screw
on
end
of
beam.
6.
When
positioning
balancing
beam
on
control
surface,
avoid
rivets
to
provide
a smooth
surface
for
the
beam,
and
keep
the
beam
90°
to
the
hinge
line
of
the
control
surface.
7.
Paint
is
a
considerable
weight
factor.
In
order
to
keep balance
weight
to
a
minimum,
it
is
recommended that
existing
paint
be
removed
before
adding
paint
to
a
control
surface.
Increase
in
balance
weight will
also
be
limited
by
the amount
of
space
available
and
clearance
with
adjacent
parts.
Good
workmanship
and
standard
repair
practices
should
not
result
in
unrea-
sonable
balance
weight.
8.
The
approximate
amount
of
weight
needed
may
be
determined
by
taping
loose
weight
at
the
balance
weight
area.
9.
Lighten
balance
weight
by
drilling
off
part
of
weight.
10.
Make
balance
weight
heavier
by
fusing
bar
stock
solder
to
weight
after
removal
from
control
surface.
The
ailerons
should
have
balance
weight
increased
by
ordering
additional
weight
and
gang
channel
listed
in
the
Parts
Catalog,
and
installing
next
to
existing
inboard
weight
the
minimum
length
necessary
for
correct
balance, except
that
a
length
which
contains
at
least
two
attaching
screws
must
be
used.
If
necessary,
lighten
new
weight
and/or
existing
weights
for
correct
balance.
