Cessna T188C - Page 39

MODEL 188 & T188 SERIES SERVICE MANUAL
FREQUENCY
(HOURS)
METHOD OF APPLICATION
GUN
CAN
(FOR POWDERED
GRAPHITE)
WHERE NO INTERVAL IS SPECIFIED,
LUBRICATE AS REQUIRED AND
WHEN ASSEMBLED OR INSTALLED.
NOTE
The military specifications listed below are not mandatory, but are
intended as guides in choosing satisfactory materials. Products of
most reputable manufacturers meet or exceed these specifications.
LUBRICANTS
PG SS-G-659 ............. POWDERED GRAPHITE
OR MIL-G-81322A ........... GREASE
GL
MIL-G-21164 ...........
HIGH AND
LOW TEMPERATURE
GREASE
OG MIL-L-7870 ............ GENERAL PURPOSE OIL
PL
W-P-236 ............
PETROLATUM
OL VV-L-800A ............ LIGHT OIL
MAIN GEAR TAIL GEAR
DO NOT LUBRICATE UNDER
EXTREMELY
DUSTY
CONDITIONS.
ENGINE CONTROLS
REFER TO SECTION
5
FOR
INSTRUCTIONS
AILERON
AND
WING
FLAP BELLCRANK
NEEDLE BEARINGS
l
TAILWHEEL
LOCK
-
CONTROL

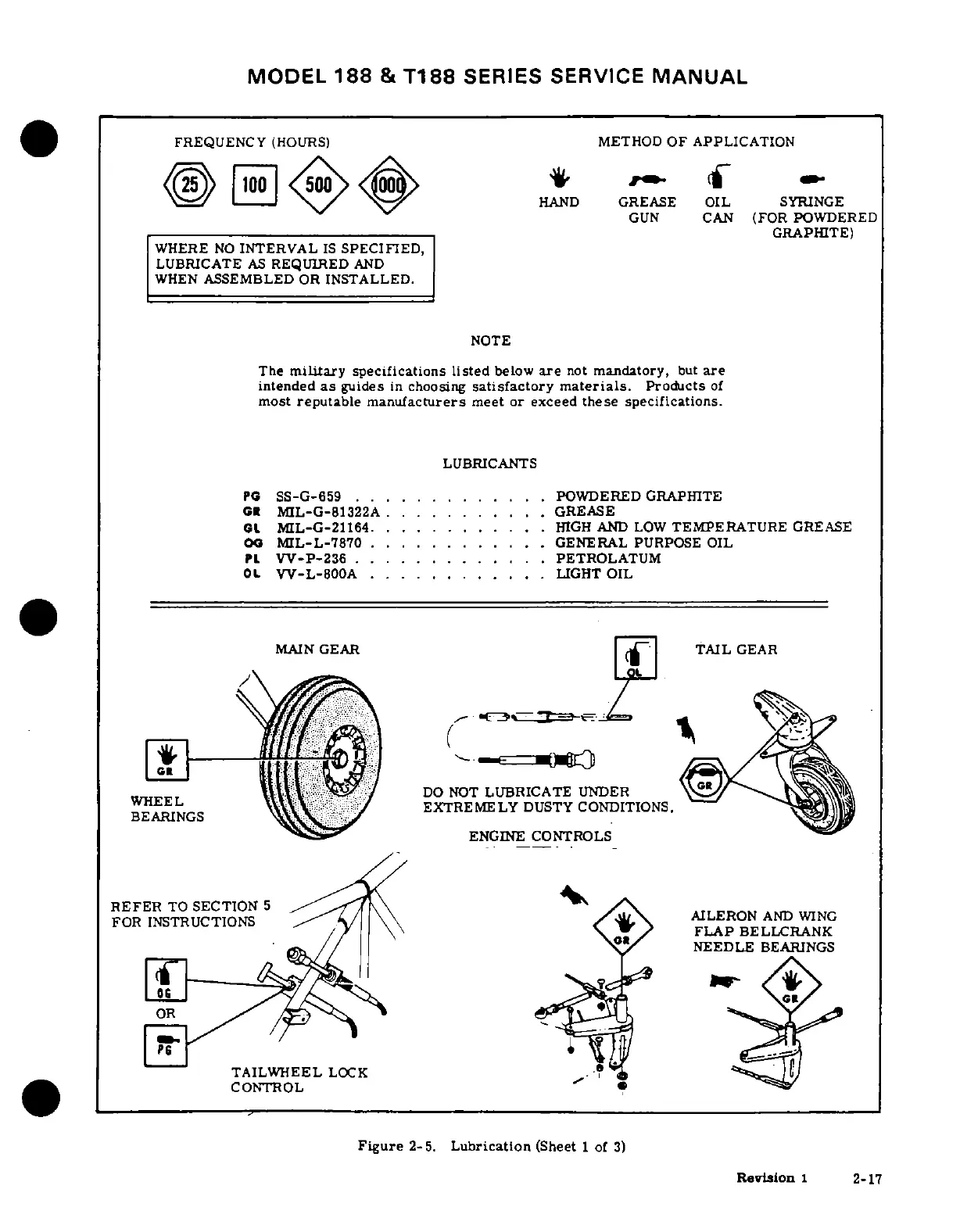

Figure
2-5.
Lubrication
(Sheet 1
of 3)
Revision
1
2-17
