Cessna T188C - Page 391

MODEL 188
& T188 SERIES
SERVICE
MANUAL
/4" EDGE MARGIN
CLEAN OUT DAMAGED AREA A-A
\o
---
ANGLE -
2024-T4 ALCLAD
10 RIVETS EACH SIDE
OF DAMAGED
AREA
I
I
FIREWALL
ANGLE
FILLER - 2024-T4 ALCLAD
V
N
^
^.^^^.
//^
s
--
1MS20470AD4
RIVETS
~EFIREWALL
A d ,-.-
a:;!a
~a"------- |FUSELAGE SKIN
ORIGINAL PARTS
REPAIR
PARTS
REPAIR
PARTS
IN CROSS
SECTION

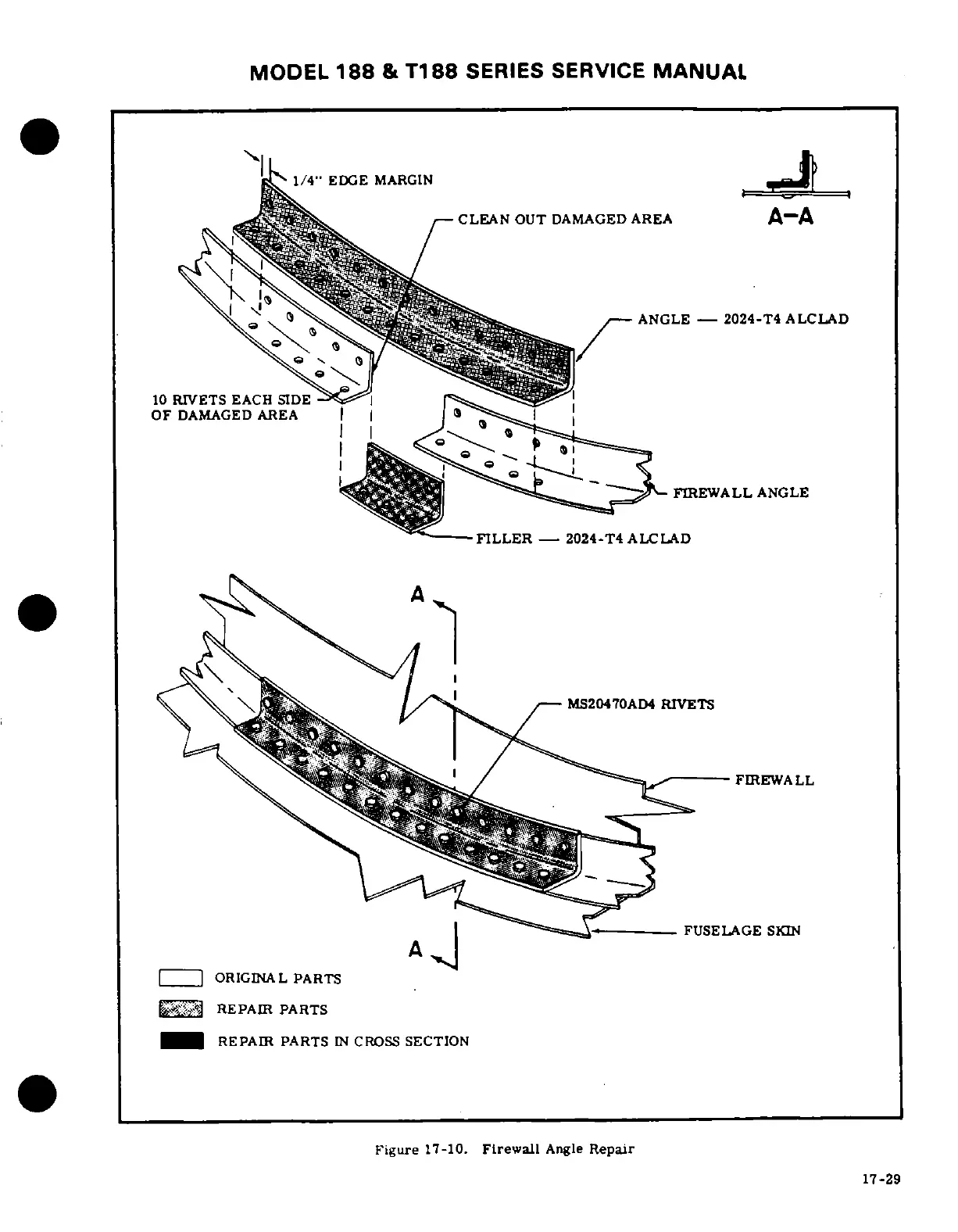

Figure 17-10. Firewall Angle Repair
17-29
