MODEL
188
&
T188
SERIES
SERVICE
MANUAL
(1)
Use
rivet
pattern
at
wing
station
23.
2
for
repair
from
wing
sta-
.-
-.
tion
23.62 to
wing station
85.87.
Use
rivet
pattern
at
wing
station
.
100. 50 for lap splice patterns
from
wing
station
100.50
to 190.
00.
See
figure
1-2
for
wing
stations.
..
Use rivet
spacing simliar
to
the
pattern
at
wing
station
100.
50
at
leading
edge ribs between
lap
splice.
Select
number
of flush
rivets
to
be
used
at each
wing
station
leading
edge
rib from
table.
RIBS:
Blind rivets may be substituted for
solid rivets
in proportionally
in-
creased
numbers
in accordance
with
the
table.
SPARS:
Blind
rivets
may
be installed
in
NUMBERS
OF FLUSH
RIVETS
IN
DIMPLED
SKIN
RE-
wing
spars only
in those
locations
QUIRED
IN REPLACEMENT
LEADING
EDGE SKIN
where blind rivets were used du-
ring original
manufacture,
le fuel
WING
SOLID
BLIND
bay
areas
o
front
spars
on
air-
STATION
MS20426-4
CR2248-4
craft
with
integral
fuel
bays.
RIB
For
additional
instructions
on
118
18
22
blind rivet
substitutions,
refer
136
15
18
to
paragraphs
17-82
thru
17-85.
154
11
13
172
10
12
EXISTING
190
10
12
TACK
RIVET
PATCH /
EXISTING
RIVET
PATTERN
TYPICAL
LEADING
EDGE
SECTION

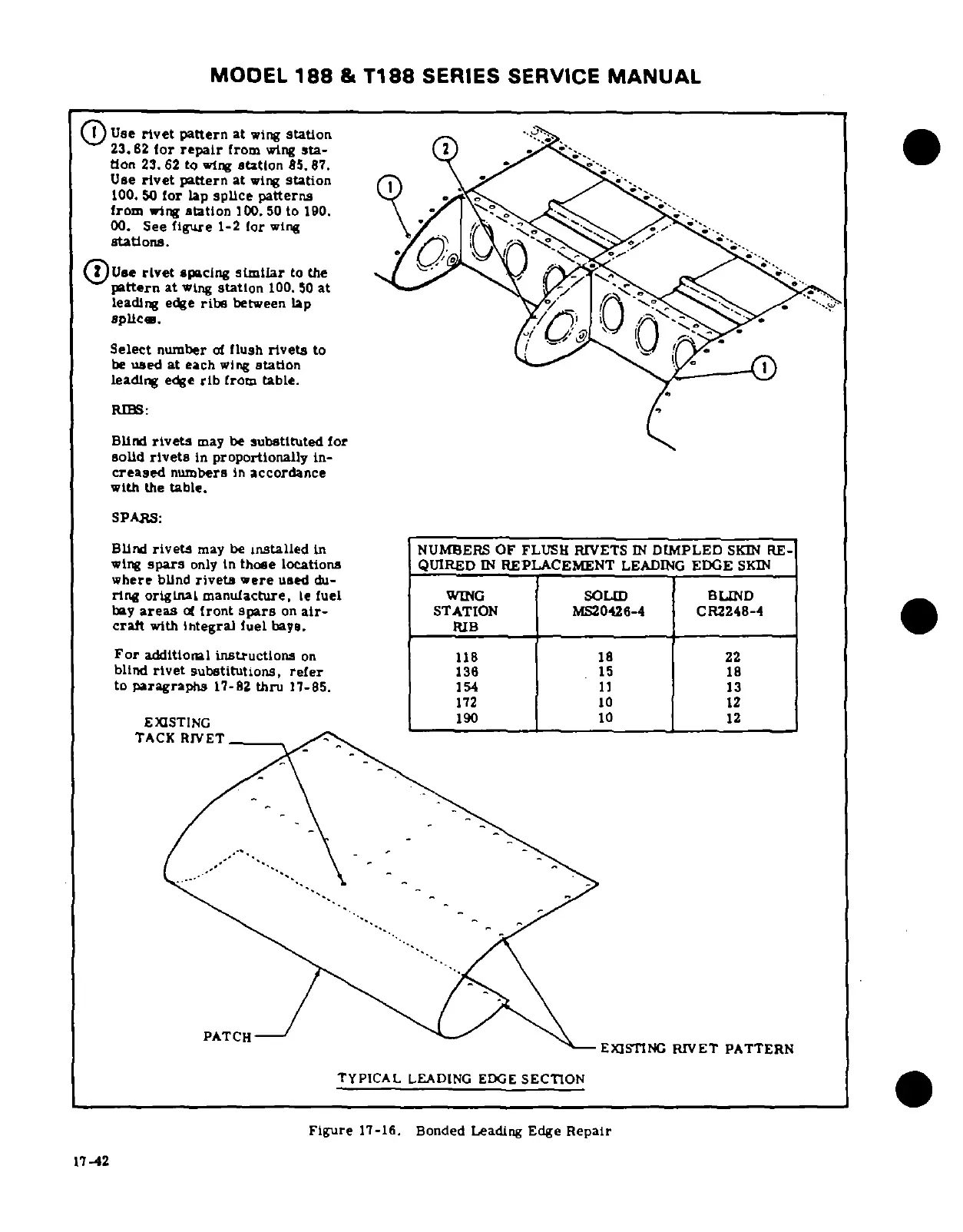

Figure
17-16.
Bonded
Leading
Edge
Repair
17-42
