Cessna T188C - Page 439

MODEL
188 &
T188
SERIES
SERVICE
MANUAL
9 .10
7
2
14
*
*
Seal 4 bolts
attaching cover
(13) and
1 bolt
attaching hook
(15) with
EP-711 B2
(Coast
Pro-Seal; Compton, California).
THRU 18802745
1. Agitator Assembly
2. Gasket
3. Cap
4. Flange Fitting
5.
Flapper
Valve
Assembly
6. Seal
7. Propeller Blade
8.
Support
9.
Gear
Reducer
10.
Coupling
and Key
11. Gate Box Assembly
12. Cap
13. Cover
14. Agitator Support
15.
Hook

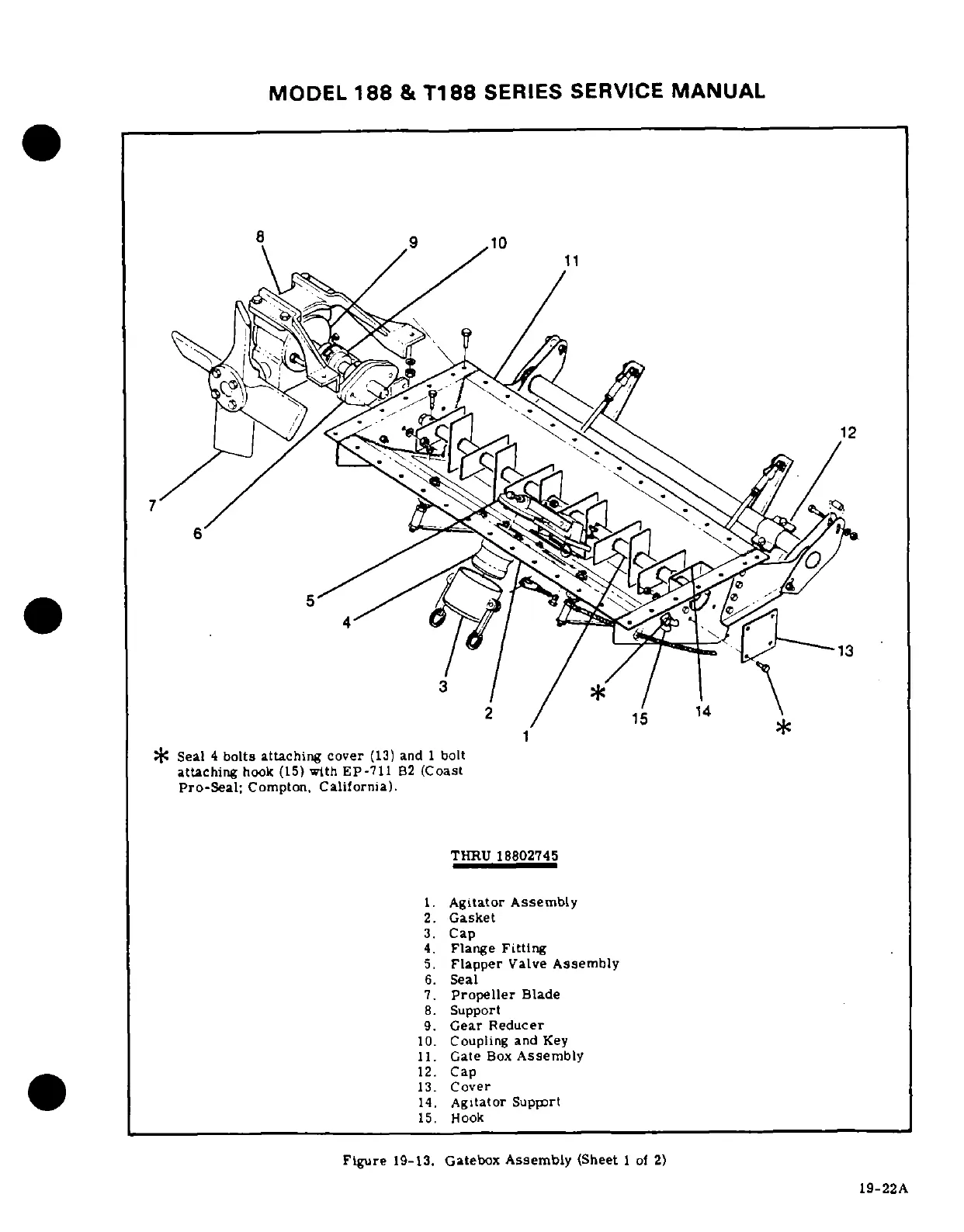

Figure
19-13.
Gatebox
Assembly
(Sheet
I of
2)
19-22A
