Cessna T188C - Page 441

MODEL
188 & T188
SERIES SERVICE
MANUAL
1
View
A.
Gate
Closed
12
2. Gate Seal
3. Control Rod
4. Gatebox
Rod Assembly
NOTE
5. Gate Assembly
6. Gate
Hinge Fork
Lube all bearing
and pivot surfaces
with
7. Bell Crank
Assembly
Electro Molly. No. 11.
8.
Door
Mount
Bolts
9.
Gatebox
Door
* Approximately
2
inches
10. Gate
Seal
Mount
Bolts
11.
Seal Retainer
* Approximately
11.6
inches
12. Bolt
Dimensions
are approximate.
may be changed
when using dry chemicals.

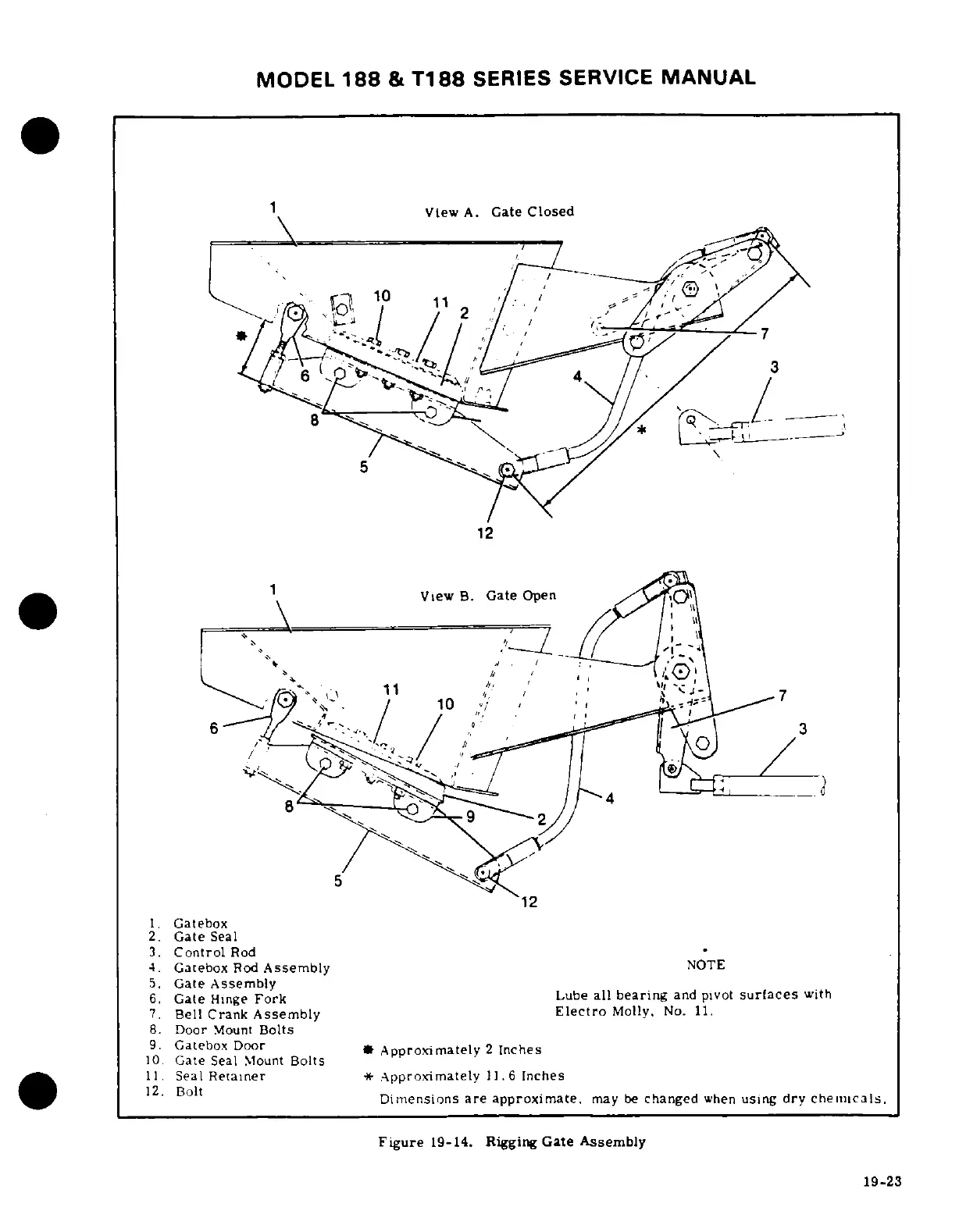

Figure
19-14. Rigging
Gate
Assembly
19-23
