MODEL
188
& T188
SERIES
SERVICE
MANUAL
1 9. 3-
J*
Countersink
toward
972
10
2
bolt
head.
6 4
Detail
A
Detail B
16
NOTE
19
FUEL
FILLER
CAP-
ON OPTIONAL WING
WITH FUEL SYSTEM 26 25
INSTALLATION
22
23
26
*
THRU
AIRCRAFT
SERIAL
18800832.
Detail
C
BEGINNING
WITH AIRCRAFT
SERIAL
BEGINNING
WITH AIRCRAFT
18800833
THE LANDING AND
TAXI
SERIAL 18800833.
LIGHTS ARE COWL
MOUNTED.
1.
Bolt
10.
Nut
19.
Airflow
Fence
Assembly
2.
Washer
11. Rear
Stub
Wing
Fitting
20.
Aileron
3. Front
Spar
Fitting
12.
Front Wing
Gap
Cover
21.
Aileron
Gap Seal
4.
Wing
13.
Screw
22.
Wing
Tip
5. Bolt
14.
Washer
23.
Navigation
Light
6.
Front
Stub
Wing
Fitting
15.
Upper
Wing
Gap
Cover
24.
Landing
Light
7. Eccentric
Bushing
16.
Lower Wing
Gap
Cover
25. Strut-Attach
Fitting
8. Rear
Spar
Fitting
17. Seal
26. Stall
Warning
Unit
9. Spacer
18. Flap
27. Inspection
Plate

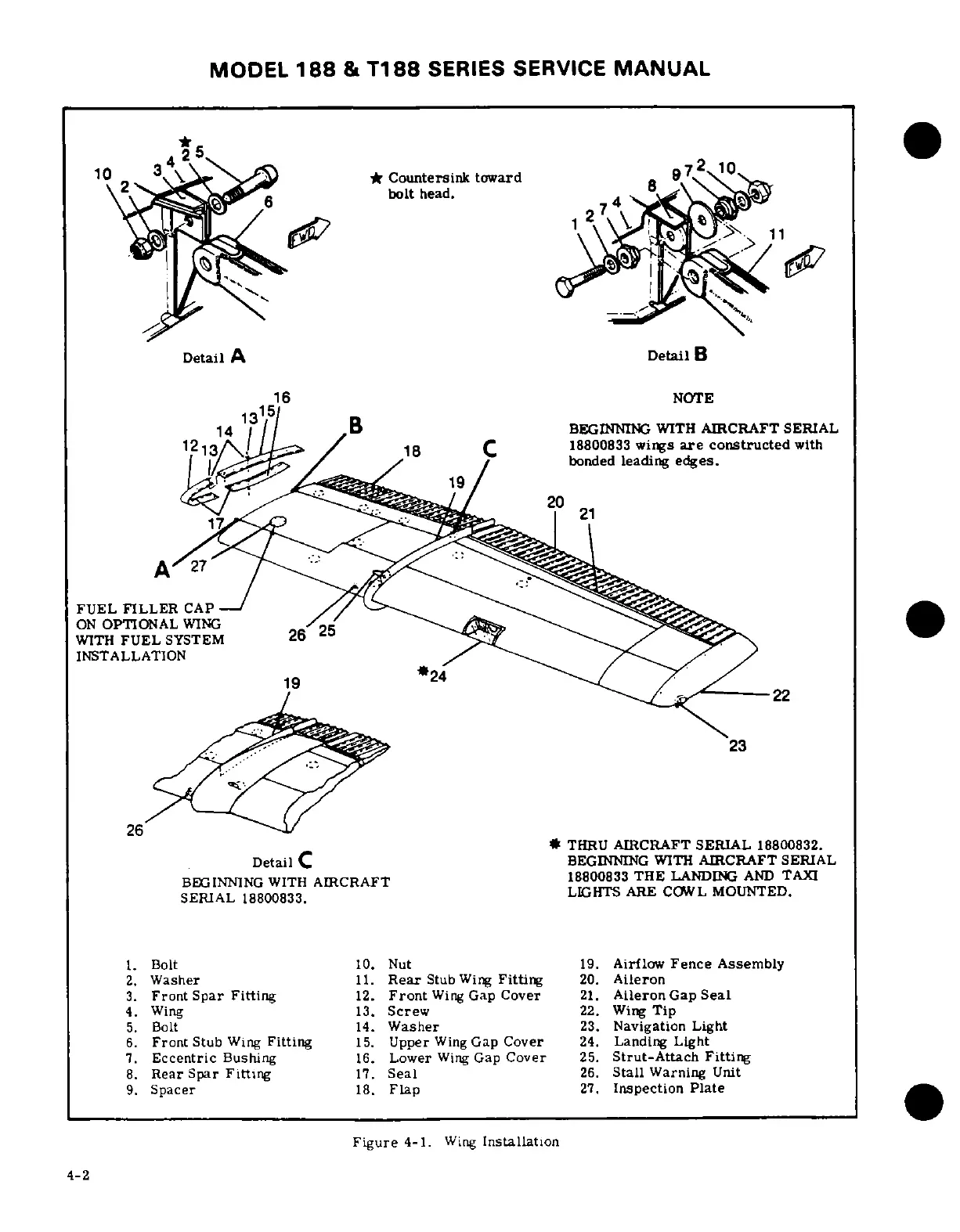

Figure 4-1. Wing Installation
4-2
