MODEL 188 & T188 SERIES SERVICE MANUAL
3
2
Detail A 5
6
\
\
Detail
B
3
* TORQUE BOLTS 70-100 LB-IN
*
INSTALL BOLT
WITH
NUT OUTBOARD
10
1.
Nut
6. Hinge
11.
Stabilizer
Assembly
2.
Washer
7.
Elevator
Pylon
Bracket
12.
Moulding
3.
Bolt
8. Inboard
Elevator
Hinge
13. Leading
Edge
Fairing
4. Attach
Fitting
9. Outboard
Elevator
Hinge
14.
Fairing
5. Bushing
10. Stabilizer Tip
15.
Abrasion Boot

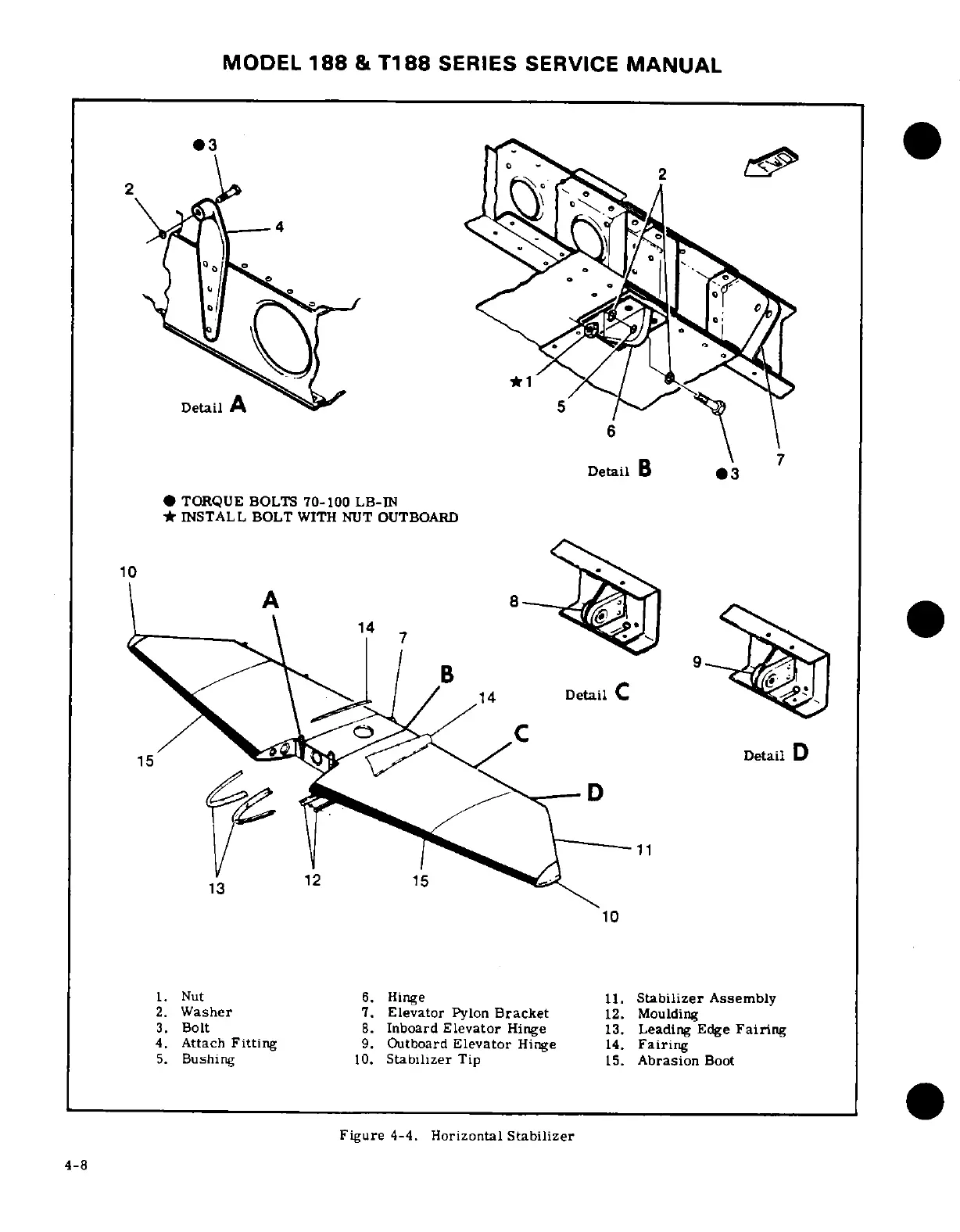

Figure 4-4. Horizontal stabilizer
4-8
