Guide for Upgrading the Firmware on the ASX-520 and ASX-520HS Autosamplers with an EXR-8
6

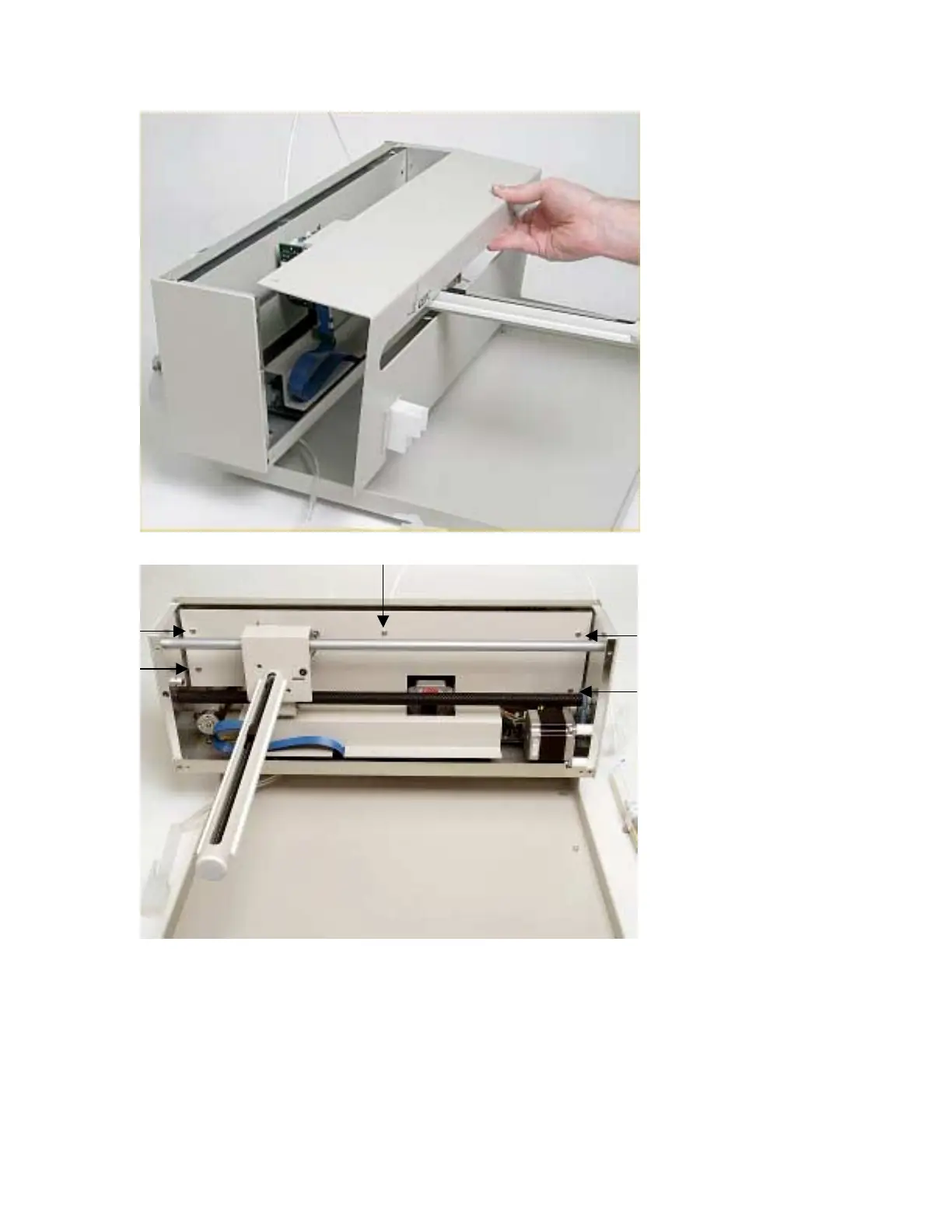

Figure 1-8. View of ASX-520 Autosampler with the front cover being removed.
Figure 1-9. View of inner shield inside the ASX-520 Autosampler.
8. The five screws that hold the inner shield will have to be removed. Move the Y-axis
assembly all the way to the left (Figure 1-9).
9. The inner shield can be removed by lifting it up while pulling forward (Figure 1-10).
