MSA G1 Electronic Breathing Apparatus

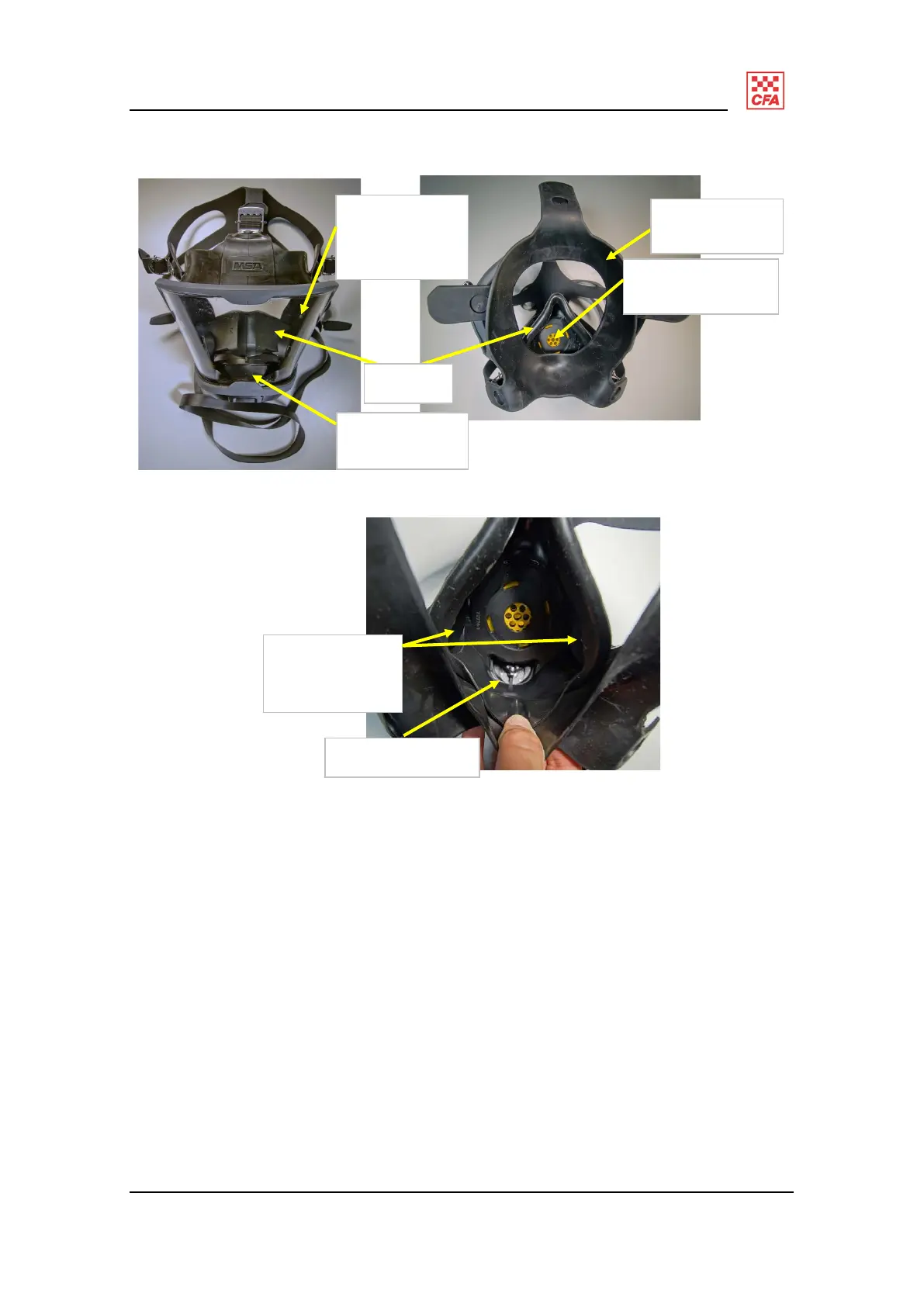

Figure 31: full facemask
Figure 32: inhalation and exhalation valves
Air flow is optimised by:
continuous flushing of the visor to avoid fogging;
exhalation through a spring loaded exhalation valve;
reduced breathing resistance due to short distances between inhalation and
exhalation valves and operator;
no inhalation or exhalation resistance when demand valve is not attached.
Speech
diaphragm
Inhalation
valve
Full face
polycarbonate
visor
Soft rubber
seal
Nose
cup
Exhalation valve
Inhalation
mushroom
valves
