FY –33VC Operation manual
- 18 -
Chapter 6
Basic Panel Operation
6.1 Menu Structure of Control Panel

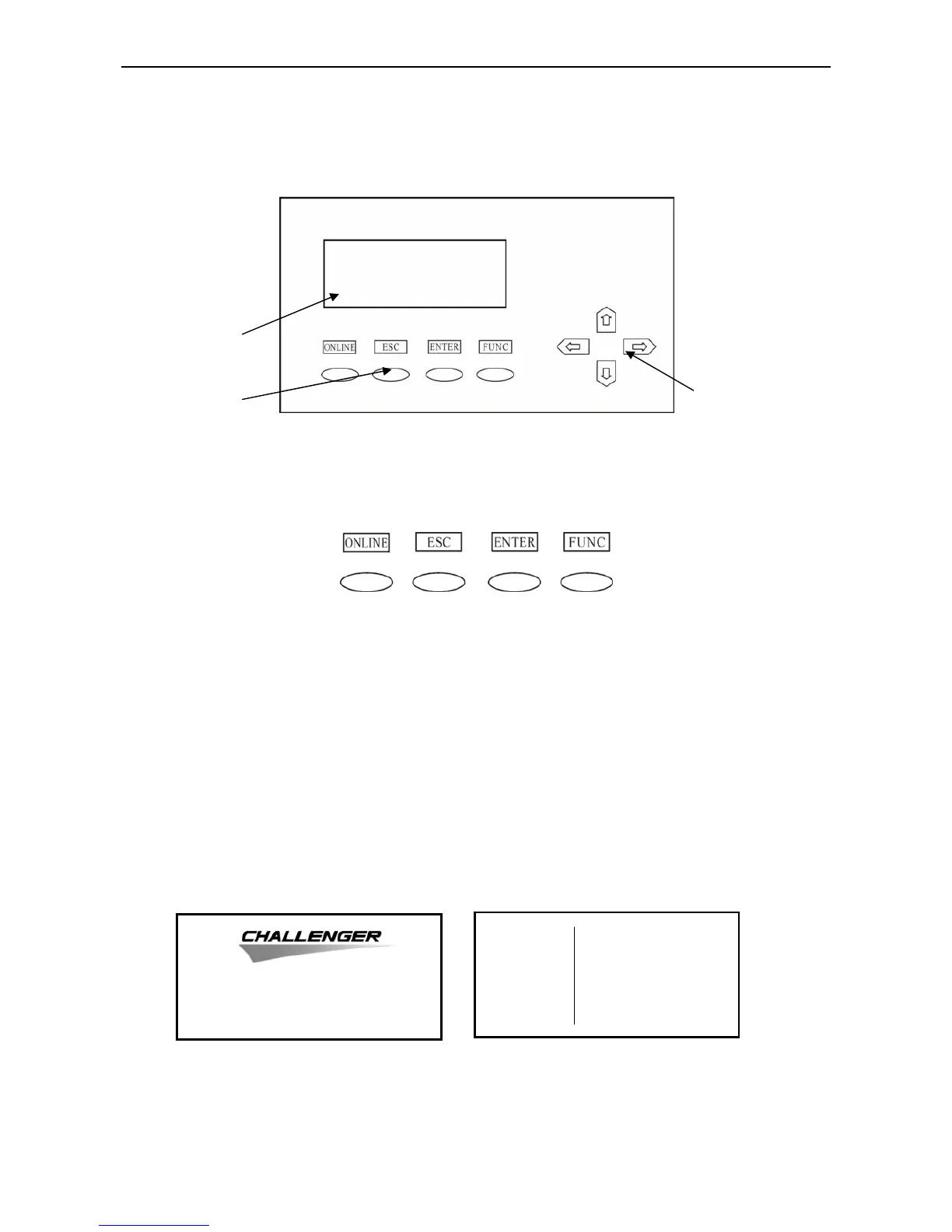

Figure 6-1 Control Panel
Function Keys
1. Direction (Arrow) Key
2. Function Key
1) ONLINE：Switch between online and offline mode; Press for 3-4 seconds for a pause during pringing
2) ESC：Back to the upper menu
3) ENTER：Confirm the command and execute it
4) FUNC：In self-diagnosis mode when offline; Shortcut to the cleaning position in Clean Pos mode.
3. Basic Operation
After the printer is power on, X motor self-tests first and then Y motor. After self-testing, carriage goes
back to the original position. You will see the following information displayed on the LCD screen:
• Mark
///
CHALLENGER
with machine model
• Version
• Then back to basic operation menu.
The machine is in normal conditions if shown as below.
Figure 6-2 Main Menu
Denotation of the menu:
“+” stands for containing submenu. “– ” stands for containing no submenu.
In this case, press ×/Ø key to circularly display these four menus up and down. When there’s a “+” after
Function Key
LCD
Direction Key
FY-33VC Ver 4.43
MENU －> 1.Moving System +
2.Clean Tools +
3.Adjustment +
OFFLINE 4.Options +
To Next Page
