FY –33VC Operation manual
- 23 -
Chapter 7
Description of Ink Supply, Cleaning system and board
7.1 Ink Supply and Cleaning System

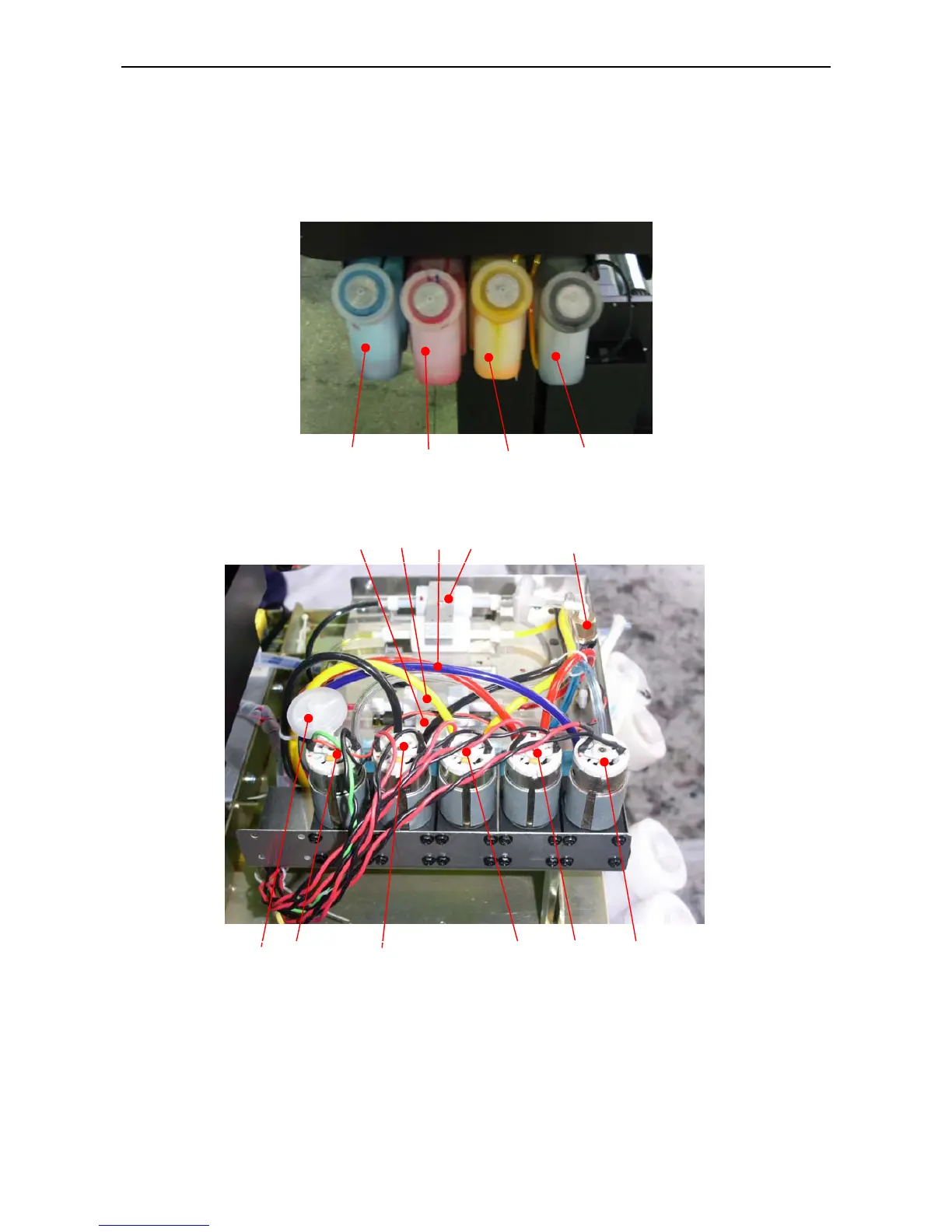

Figure 7-1 Ink Supply and Cleaning System ( Right Side)
1. Main Tank C 2. Main Tank M 3. Main Tank Y 4. Main Tank K
Figure 7-2 Ink Supply and Cleaning System（Seen from Back）
1. Ink Filter C 2. Ink Filter M 3. Ink Filter Y 4. Ink Filter K 5. Solenoid E-valve 6. Air Filter
7. Air Pump 8. Ink pump K 9. Ink pump Y 10. Ink pump M 11. Ink pump C
1 2 3 4
1 2 3 4 5
6 7 8 9 10 11
