Challenger INFINITI

FY –33VC Operation manual
- 24 -

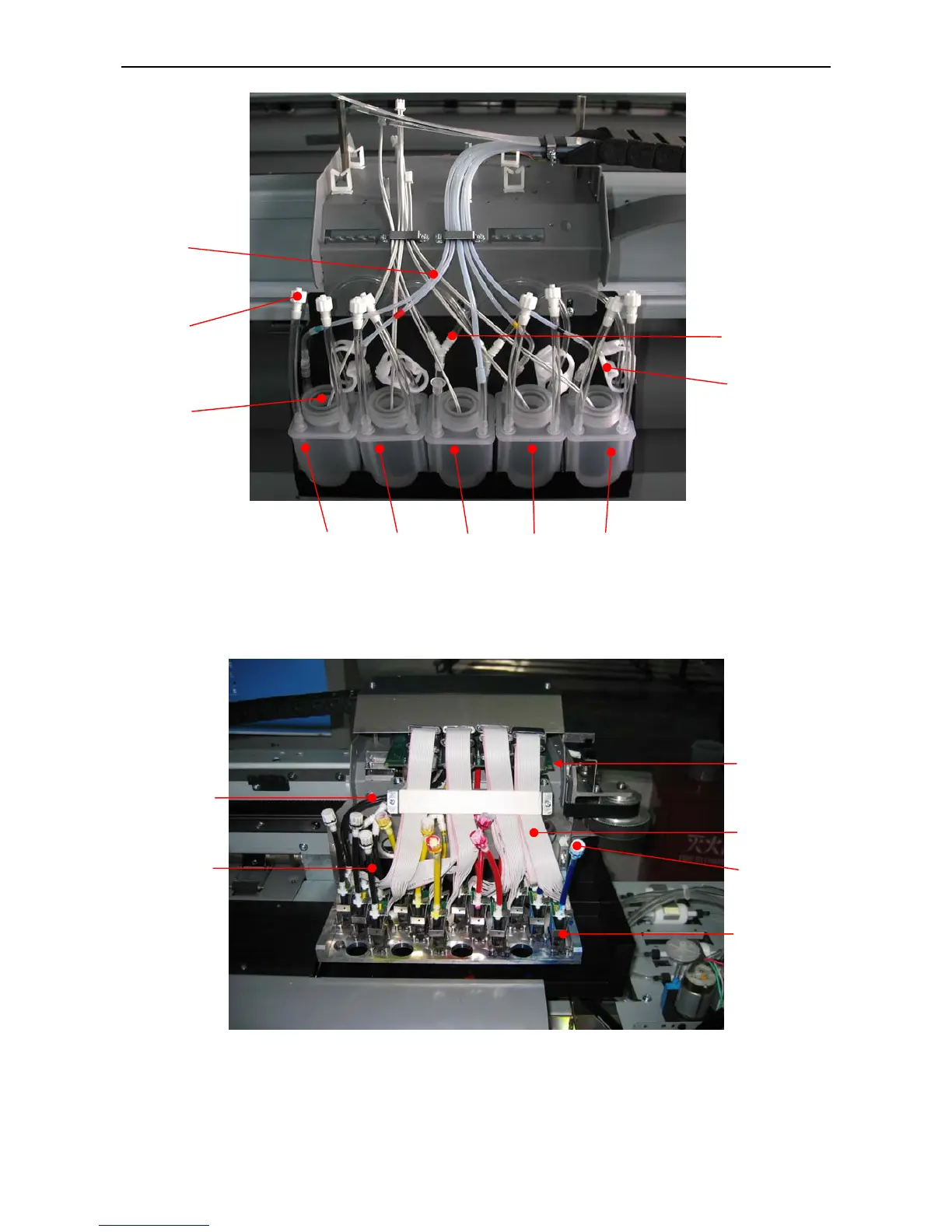

Figure 7-3 Ink Supply and Cleaning System（Seen from Back)
1. Sub Tank C 2. Sub Tank M 3. Safety Tank 4. Sub Tank Y 5. Sub Tank K
6. Floating Switch (in sub-tank) 7. Ink in Tube 8. Ink out Tube 9.Air Tube 10.clamp
Figure 7-4 Ink Supply and Cleaning System（Seen from Front）
7.2 Assistant Board and Cleaning Operation board
Assistant Board has many functions. It can control ink supply, cleaning and heating.
Tube connector cap
Printhead
Ink in tube
1 2 3 4 5
9
10
7
8
6
Data lines
Ink out tube
Printhead board
