FY –33VC Operation manual

- 16 -

Chapter 5

Usage and Maintains of print head

5.1 Usage of Xaar Printer

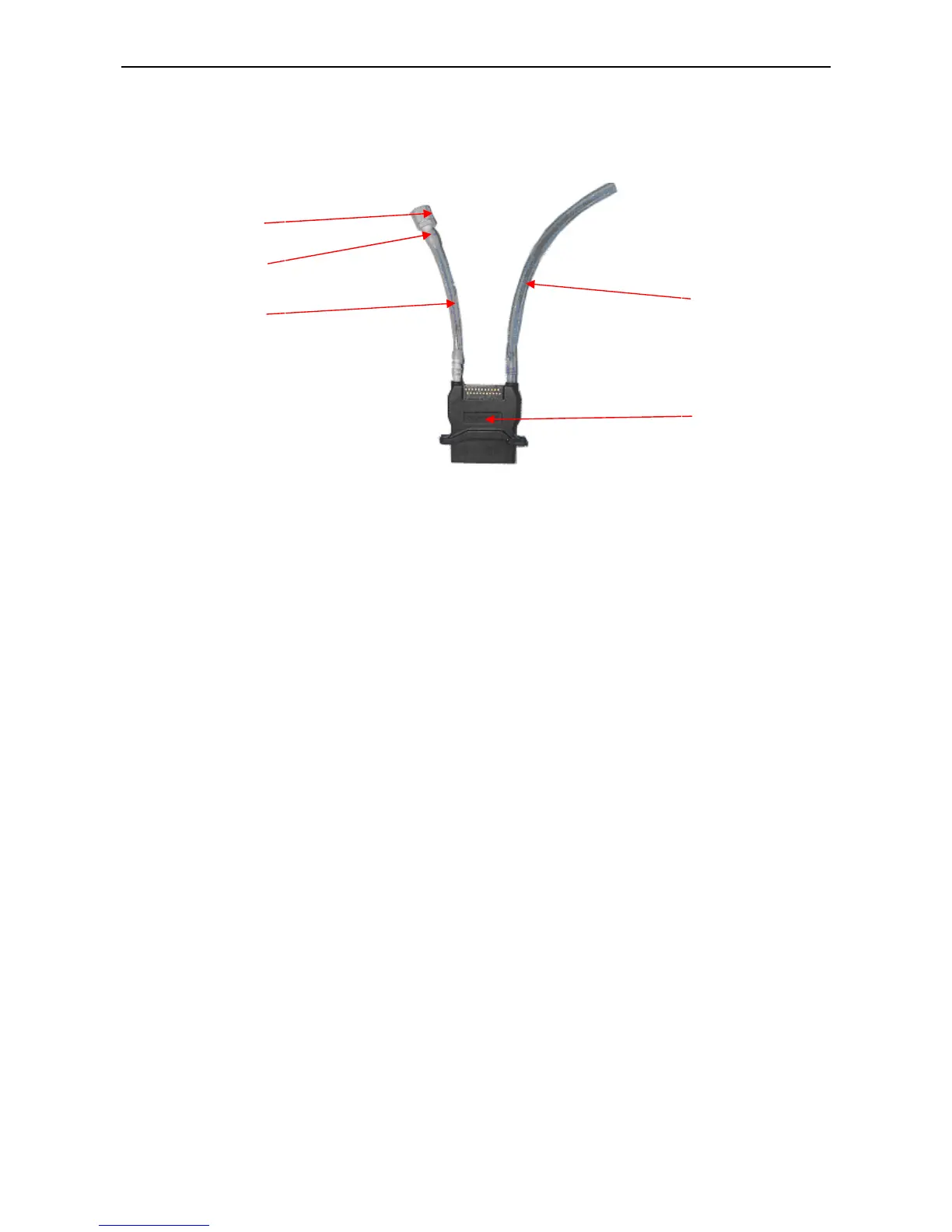

1—Print head 2—In tube 3—Out tube 4—Cap 5—Fitting

Figure 5-1 Print head

1、Flush humectants out of print head

To moisturize print head, lots of humectants are injected into the head before it is used. The humectants

must be flushed out for the first using. Before fix the head on the print head frame, do the steps as follows:

Joint a filter on the In-tube of the head, and then joint an injector--which fills with flush solution--on the filter.

Inject 10-20 ml flush solution to the head to eject the humectants inside. Then fill the head with flush

solution to dissolve the humectants completely within 5-10 minutes. Finally, flush the head with about 30ml

flush solution to eliminate the humectants completely.

Make sure to operate on a stable and clean platform.

Cautions:

1. Clean platform for convenient operation;

2. Don’t touch the surface of head and socket with hand;

3. Clean the filter with flush solution;

4. Connect a tube on the exit of the head to prevent ink flowing into the socket;

5. Don’t touch the surface of head with other objects;

6. Be careful to distinguish In tube and Out tube of the head;

7. Eject flush solution from the nozzles with strength no more than 0.3 kg. (It is better to hold the

injector with single hand and push it with the same thumb.)

2、Extrude air from the print head

After fixing the head on the head frame (be cautious of the in tube and out tube). Remove the Cap from
