Chamberlain CSL24UL User Manual

11

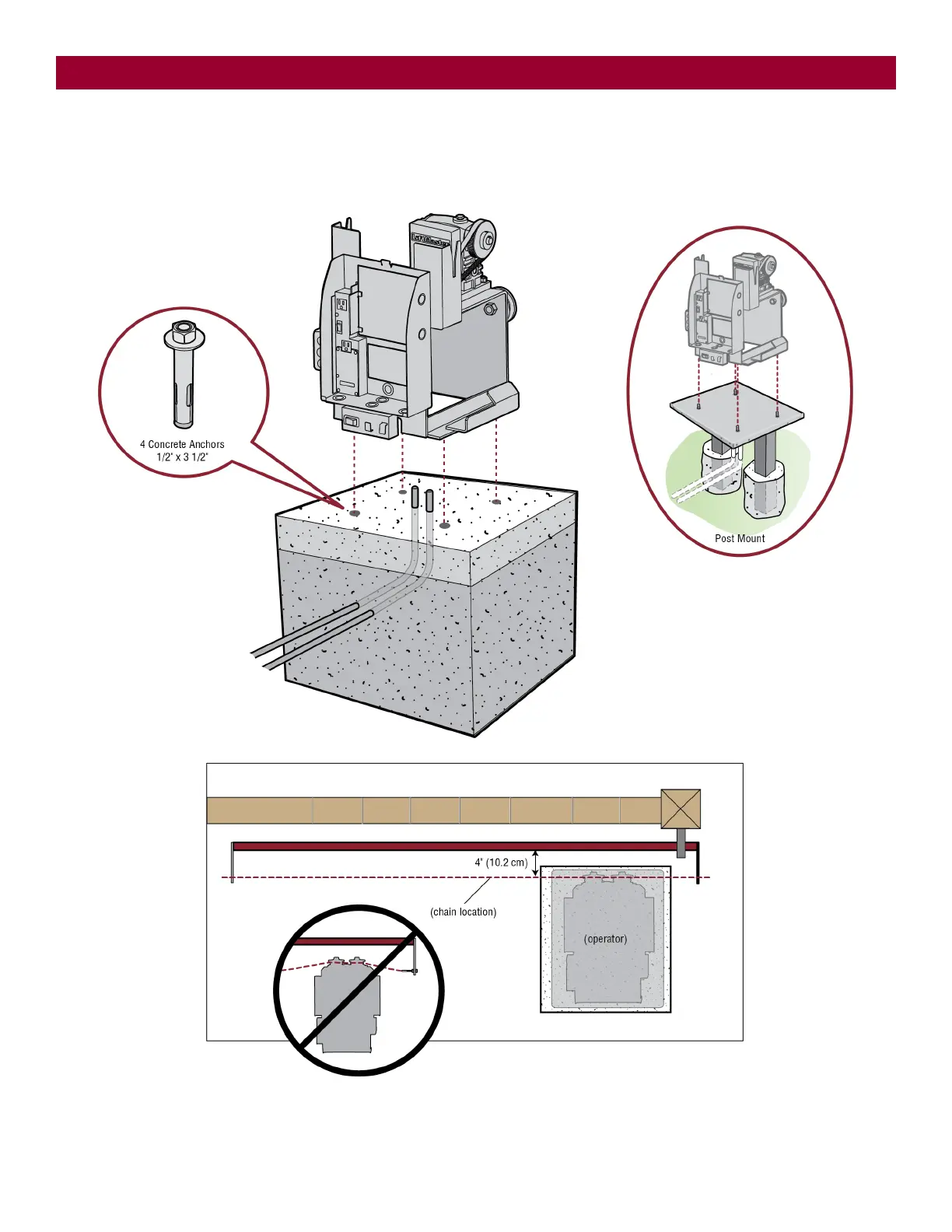

Step 2 Install the Operator
Attach the operator to the concrete pad with appropriate fasteners. The gate operator should be installed near the front roller of the gate or near the back of
the gate (in the OPEN position). The space between the gate and the output sprocket must be a minimum of 4 inches (10.2 cm). NOTE: An alternative to a
concrete pad is to post mount the operator (refer to Accessories).
INSTALLATION

Chamberlain CSL24UL Specifications

General

Brand	Chamberlain
Model	CSL24UL
Category	Gate Opener
Language	English
