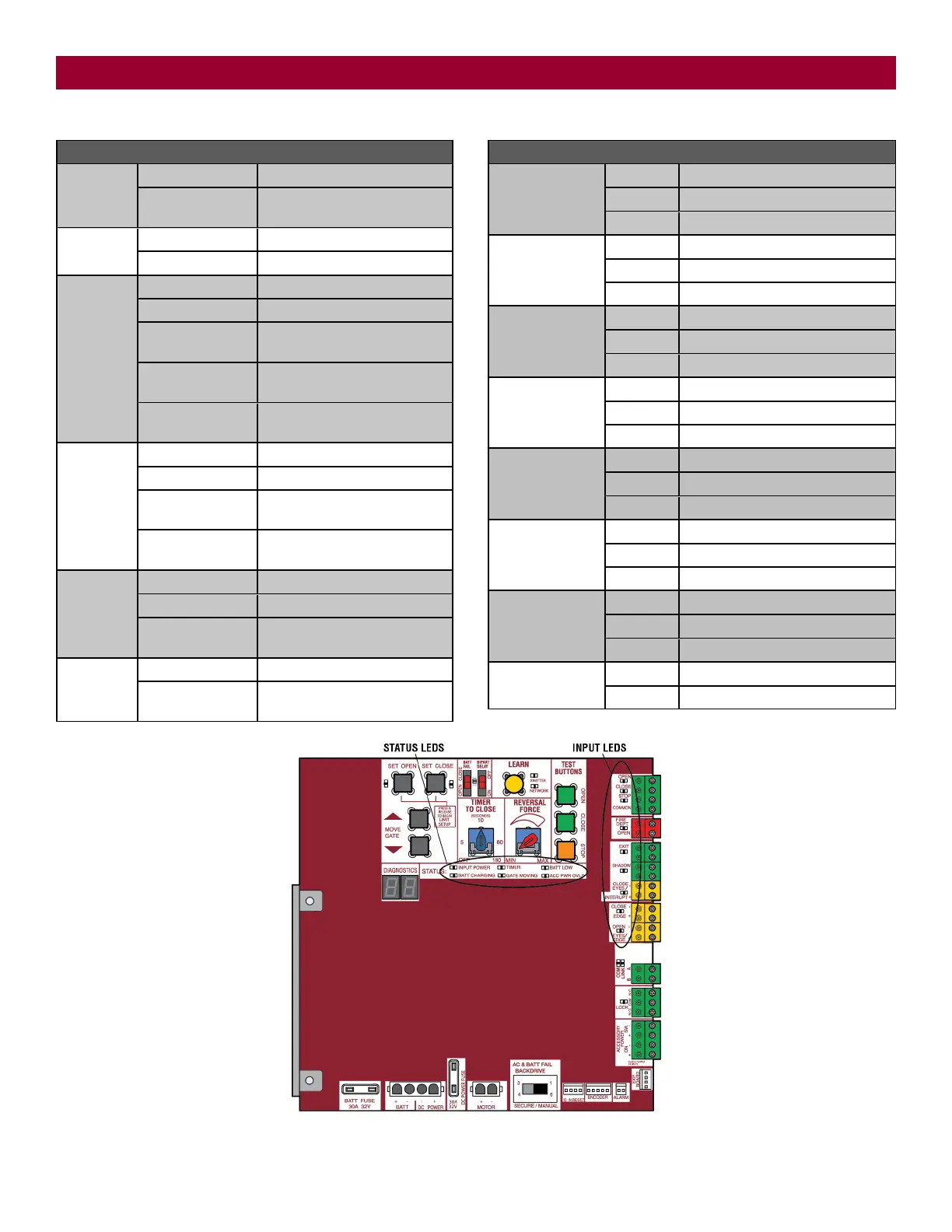

Control Board LEDs
STATUS LEDS
INPUT
POWER
OFF OFF state
ON AC charger or Solar power
available
BATT
CHARGING
OFF Not charging
ON Three stage battery charging
TIMER
OFF The timer is disabled
ON The timer is enabled
MEDIUM BLINK (1
blink per second)
The timer is running
FAST BLINK (2
blinks per second)
The timer is paused
FASTEST BLINK (8
blinks per second)
The timer is canceled
GATE
MOVING
OFF The gate is stopped
ON The gate is opening or closing
MEDIUM BLINK (1
blink per second)
Operator is in E1 (single
entrapment)
FASTEST BLINK (8
blinks per second)
The operator is in E2 (double
entrapment)
BATT LOW
OFF No battery error
ON Battery low
MEDIUM BLINK (1
blink per second)
Battery critically low
ACC PWR
OVLD
OFF Accessory power is okay
ON Accessory overload protector
opened
INPUT LEDS
OPEN, CLOSE,
STOP INPUT
OFF Input inactive
ON Input active
BLINK Input active on other operator
FIRE DEPT INPUT
OFF Input inactive
ON Input active
BLINK Input active on other operator
EXIT
OFF Input inactive
ON Input active
BLINK Input active on other operator
SHADOW
OFF Input inactive
ON Input active
BLINK Input active on other operator
CLOSE
EYES/INTERRUPT
OFF Input inactive
ON Input active
BLINK Input active on other operator
CLOSE EDGE
OFF Input inactive
ON Input active
BLINK Input active on other operator
OPEN EYES/EDGE
OFF Input inactive
ON Input active
BLINK Input active on other operator
LOCK
OFF Maglock relay inactive
ON Maglock relay active
TROUBLESHOOTING
