Chamberlain HD200CD Security+ - Installation Parts; Rail Assembly Parts; Repair Parts

37

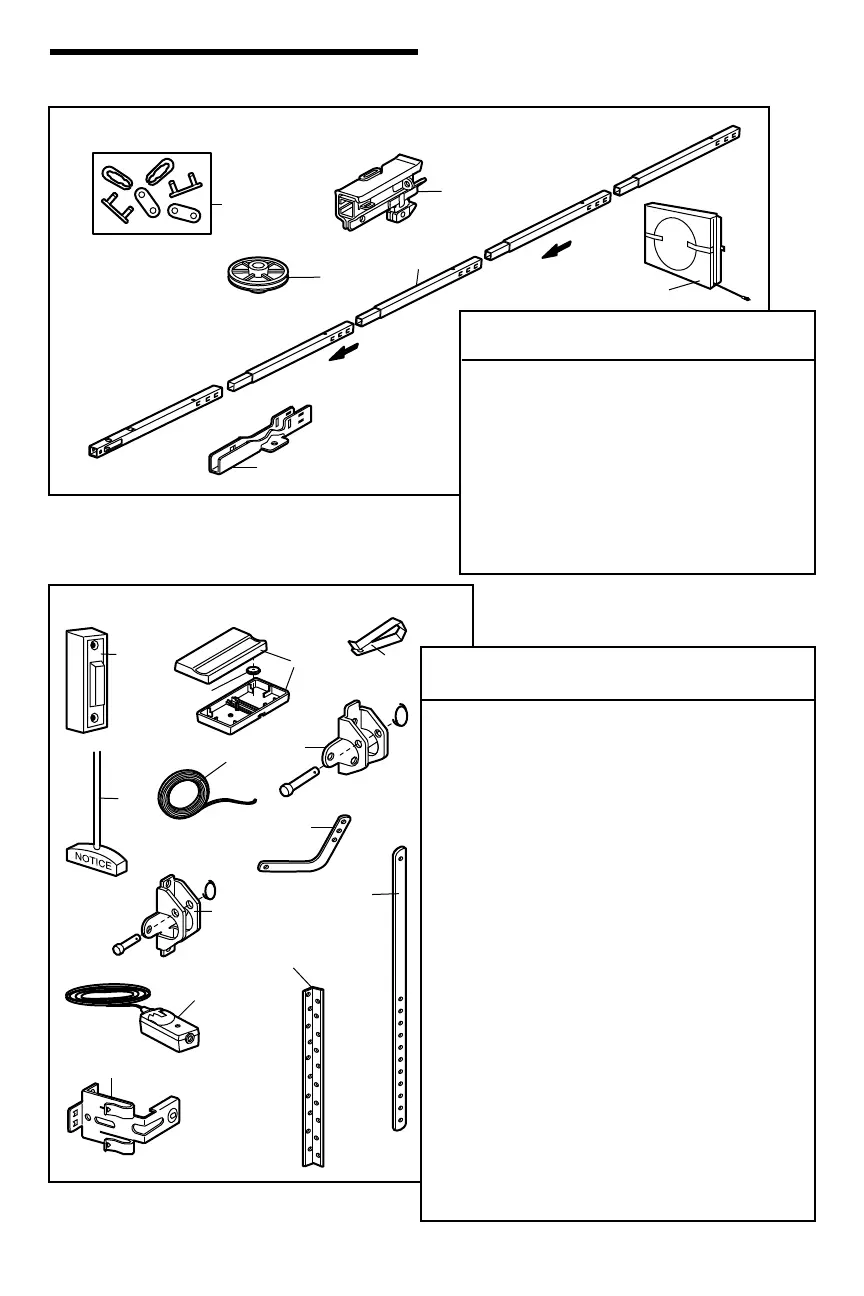

Installation Parts
REPAIR PARTS
KEY PART
NO. NO. DESCRIPTION
1 41A4166 Lighted door control button
2 950CD Single-button remote control
3 10A20 3V2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Emergency release rope and handle
assembly
6 41B4494-1 2-Conductor bell wire, white and
white/red
7 41A5047 Door bracket w/clevis pin and fastener
8 41A5047-2 Header bracket w/clevis pin and
fastener
9 178B35 Curved door arm section
10 178B34 Straight door arm section
11 12B776 Hanging bracket
12 41A5034 Safety sensor kit (receiving and
sending eyes) with 2-conductor bell
wire
13 41A5266-1 Safety reversing sensor brackets (2)
NOT SHOWN
041A7920-1 Installation hardware bag
(includes hardware listed on page 7)
114A4277 Owner’s manual
Rail Assembly Parts
2
1
4
3
5
6
2
1
4
3
5
6
7
9
10
8
12
13
11
KEY PART
NO. NO. DESCRIPTION
1 4A1008 Master link kit
2 41C5141-1 Complete trolley assembly
3 41A5665 Complete rail
4 144C56 Idler pulley
5 41A5807 Chain and cable
6 12D598-1 “U” bracket
NOT SHOWN
183A163 Wear pads
