Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
• Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to the
information relating to sectional doors in Installation
Step 11.
• Depending on your door’s construction, you may need
additional mounting hardware for the door bracket
(Step 11).
Without a properly working safety reversal system,
persons (particularly small children) could be
SERIOUSLY INJURED or KILLED by a closing garage
door.
• The gap between the bottom of the garage door
and the fl oor MUST NOT exceed 1/4" (6 mm).
Otherwise, the safety reversal system may NOT
work properly.
• The fl oor or the garage door MUST be repaired to
eliminate the gap.

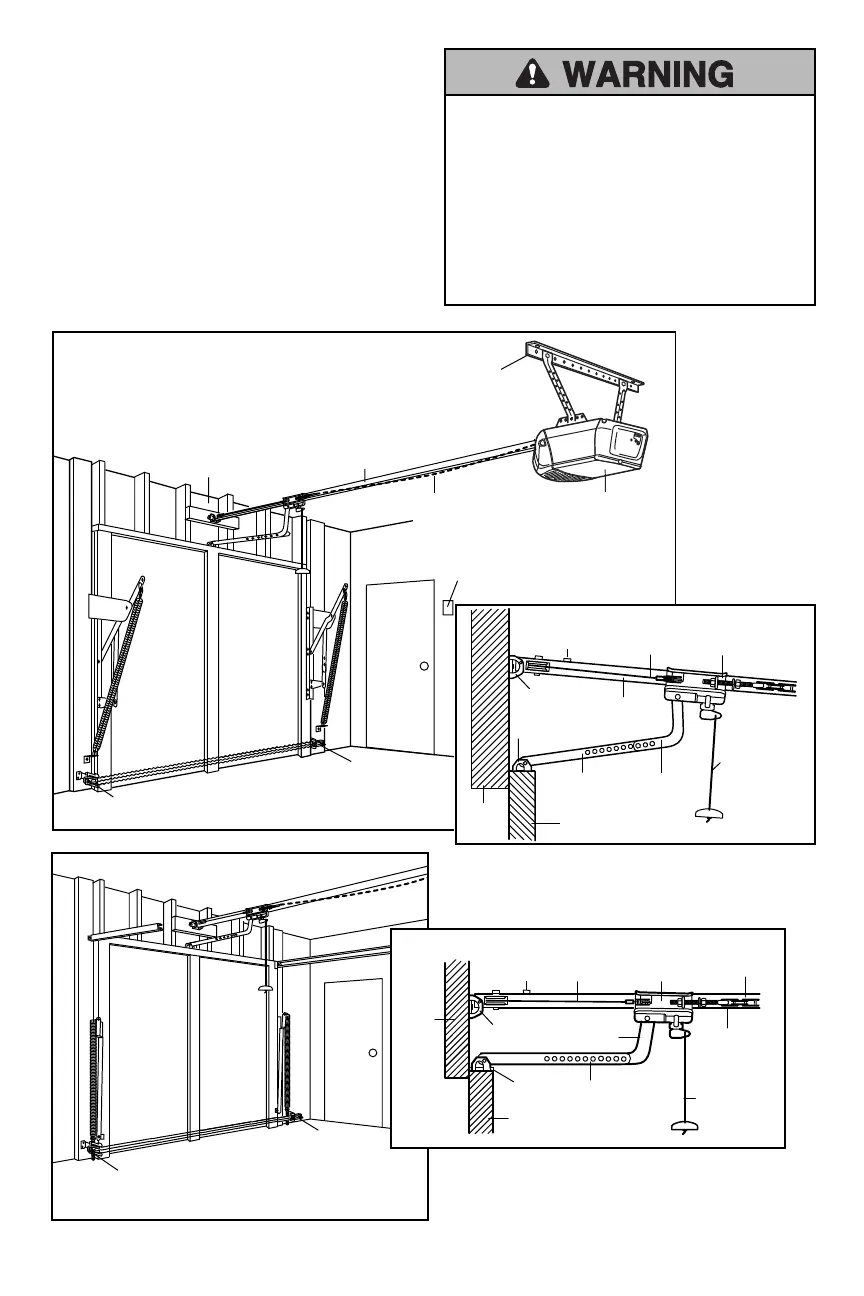

ONE-PIECE DOOR WITHOUT TRACK
Header Wall
Rail
Gap between fl oor and
bottom of door must not
exceed 1/4" (6 mm).
Safety Reversing
Sensor
Safety Reversing
Sensor
Access
Door
FINISHED CEILING
Support bracket &
fastening hardware
is required.
Motor unit
Wall-mounted
Door Control
ONE-PIECE DOOR WITH TRACK
Gap between fl oor and
bottom of door must not
exceed 1/4" (6 mm).
Safety
Reversing
Sensor
Safety Reversing
Sensor
Access
Door
CLOSED POSITION
Header
Wall
Header Bracket
Trolley
Straight Door Arm
Emergency
Release Rope
& Handle
Door Bracket
Curved
Door Arm
Garage Door
Chain
Chain
Rail Tab
Rail
CLOSED POSITION
Header
Wall
Header Bracket
Trolley
Cable
Cable
Straight Door Arm
Emergency
Release Rope
& Handle
Door
Bracket
Curved
Door Arm
Garage Door
Rail Tab
Rail
See page 15.
To Next Page
