Chamberlain HD200CD Security+ - Hardware Inventory

7
Hardware Inventory

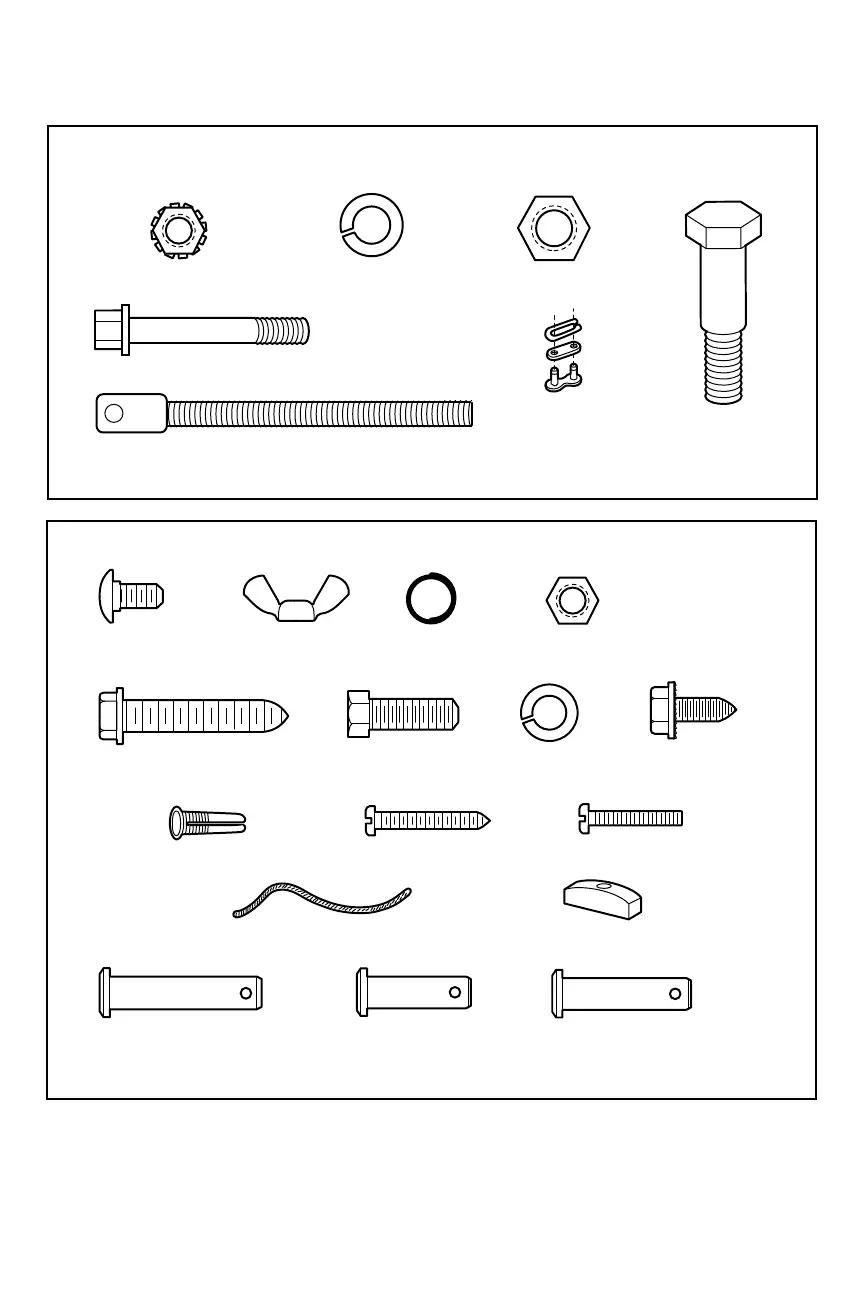

Separate all hardware and group as shown below for the assembly and installation procedures.
Carriage Bolt
1/4"-20x1/2" (2)
Wing Nut
1/4"-20 (2)
Nut 5/16"-18 (6)Ring
Fastener (3)
Insulated Staples
(Not shown)
Lag Screw
5/16"-9x1-5/8" (4)
Hex Bolt
5/16"-18x7/8" (4)
Lock Washer 5/16" (5)
Self-Threading Screw
1/4"-14x5/8" (2)
Screw 6ABx1" (2)
Drywall Anchors (2)
Screw 6-32x1" (2)
HandleRope
Clevis Pin
5/16"x1"
Clevis Pin
5/16"x1-1/2"
Clevis Pin
5/16"x1-1/4"
Bolt 1/4"-20x1-3/4"
Lock Washer 3/8"
Nut 3/8"
Lock Nut 1/4"-20
Master
Link (2)
Trolley Threaded Shaft
Idler Bolt
ASSEMBLY HARDWARE
INSTALLATION HARDWARE
