Rail
Door
50 mm spacer should
be used to determine
the correct mounting
position
Lintel
Bracket
50 mm (2”)
above the highest
point of travel
POSITION THE OPENER
SECTIONAL DOOR

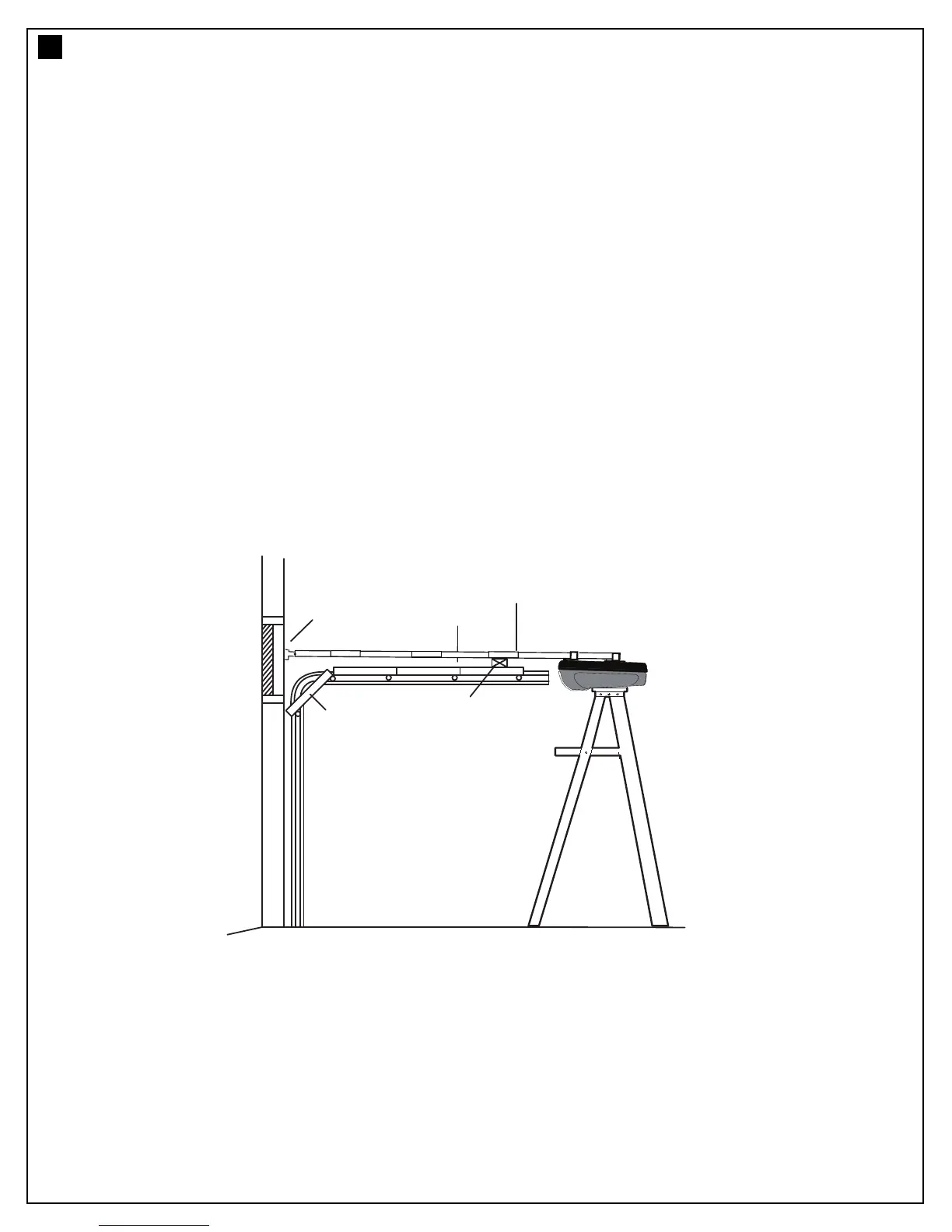

You will need a 50 mm piece of timber or similar spacer to gauge the distance between door and rail.
1.Raise the opener onto support.
2.Open the door completely, place a 50 mm spacer between the door and the rail (as shown).
3.The final positioning of the rail should be relatively parallel to the horizontal door panels.
14
Disengage the trolley mechanism (see section 18 “Operating the manual release”) and slide it back towards the powerhead.
S
ecure the hanging push arm up into the rail assembly temporarily using tape or rope, to avoid a hazard.
To Next Page
